T-Series

Truck, Tractor (off highway)

SIGMA's T-Series range of air conditioning units have been developed to air condition the cabins of heavy-duty, off-road mining equipment. They have been designed to suit the most severe application of high vibration, shock loads and high ambients. The units are constructed to Mining Standards featuring ease of service and using the highest quality components.

Features include brushless DC motors, fresh air pressurisation, return air filter, heater and electronic cabin and coil temperature control. SIGMA T-Series is available in either 12VDC or 24VDC configurations. Options include hydraulic drive compressor or off-engine drive compressor kits, along with special supply and return air plenums to suit cab application.

Download

T-Series Overview

[PDF, 712 KB]

T-Series Spare Parts Catalogue

[PDF, 5.7 MB]

Our Range

TCF6BX2

ROOFTOP CONDENSER

Cooling Capacity: 6.0 kW (20,472 BTU) Power Supply: 24v Dimension: 792 x 515 x 377mm

TCF7BX2

ROOFTOP CONDENSER

Cooling Capacity: 7.0 kW (23,884 BTU) Air Flow: 650 l/s (1,377 CFM) Power Supply: 24v Dimension: 523 x 856 x 311mm

TCF8BX6

H0235424 - Floor Mounted Condenser

Cooling Capacity: 8.0 kW (27,296 BTU) Air Flow: 980 l/s (2,077 CFM) Power Supply: 24v Dimension: 1236 x 600 x 294mm

TCW5BX1

Wall Mounted Condenser

Cooling Capacity: 4.0 kW (13,648 BTU) Air Flow: 500 l/s (1,059 CFM) Power Supply: 24VDC Dimension: 780 x 400 x 196mm

TDR7BX2

Rooftop Package

Cooling Capacity: 7.0 kW (23,884 BTU) Heating Capacity: 6.0 kW (20,475 BTU) Air Flow: 250 l/s (530 CFM) Power Supply: 24V Dimension: 1,100 x 800 x 288mm

TDR10BX1/2

Rooftop Package

Cooling Capacity: 10.0 kW (34,120BTU) Heating Capacity: 10.0 kW (34,120BTU) Air Flow: 350 l/s (742 CFM) Power Supply: 24v Dimension: 1,484 x 833 x 650mm

TFC6BX1

Ceiling Evaporator

Cooling Capacity: 6.0 kW (20,472 BTU) Heating Capacity: 6.0 kW (20,472 BTU) Air Flow: 250 l/s (530 CFM) Power Supply: 24v Dimension: 743 x 530 x 210mm

TFC6BX2

H0094278 - Ceiling Evaporator

Cooling Capacity: 6.0 kW (20,472 BTU) Heating Capacity: 7.0 kW (23,884 BTU) Air Flow: 200 l/s (424 CFM) Power Supply: 24v Dimension: 735 x 528 x 190mm

TFC8BX1/2

Ceiling Evaporator

Cooling Capacity: 8.0 kW (27,296 BTU) Heating Capacity: 6 / 8kW (20,473 / 34,120 BTU) Air Flow: 325 l/s (689 CFM) Power Supply: 24v Dimension: 1,100 x 900 x 221mm

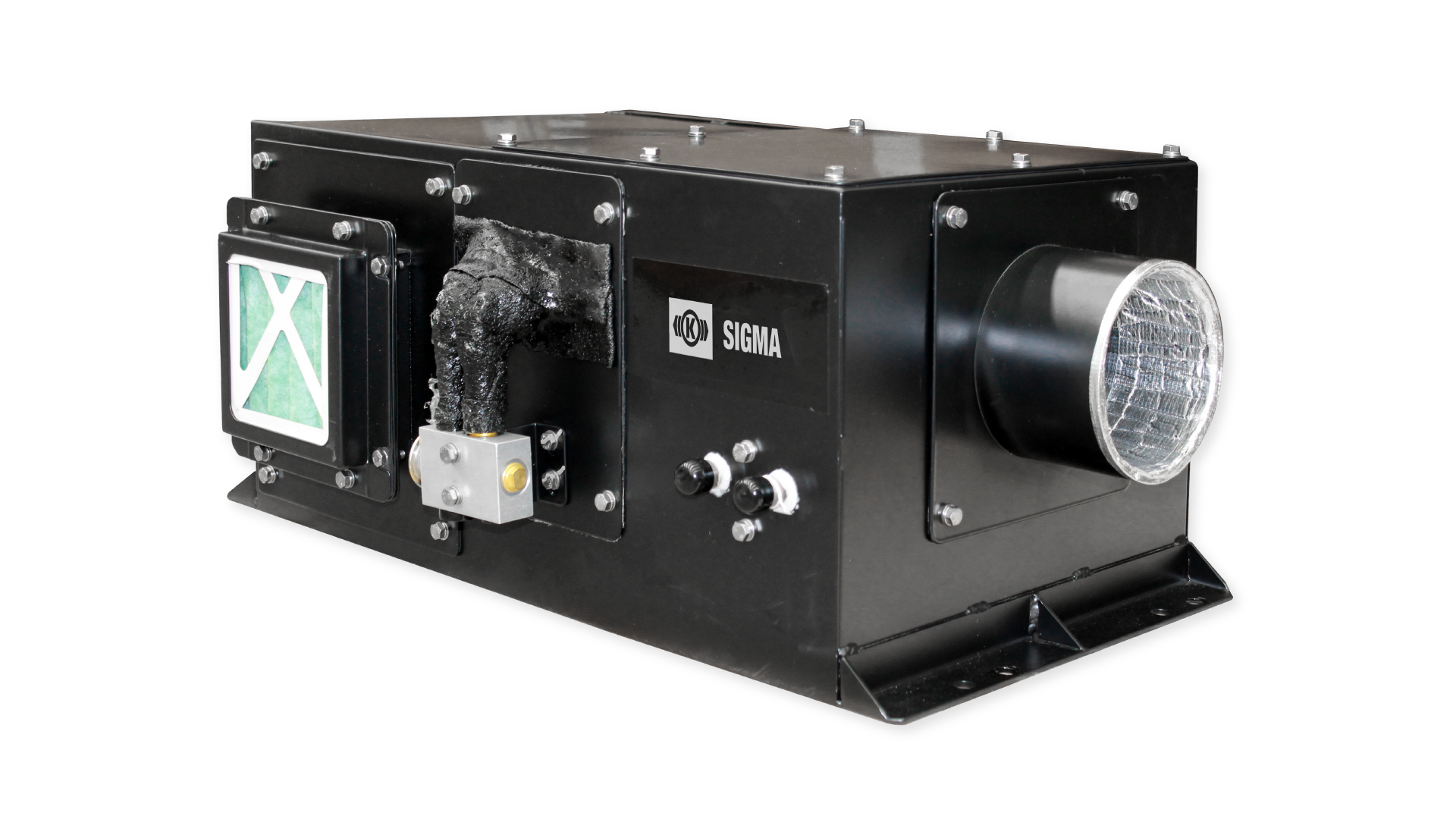

TFF5BX1/2

Floor Mounted Evaporator

Cooling Capacity: 5.0 kW (17,060 BTU) Heating Capacity: 4.0 kW (13,648 BTU) Air Flow: 125 l/s (265 CFM) Power Supply: 24v Dimension: 690 x 441 x 295mm

TFR6BX3

Rooftop Evaporator

Cooling Capacity: 6.0 kW (20,472 BTU) Heating Capacity: 4.5 kW (15,354 BTU) Air Flow: 170 l/s (360 CFM) Power Supply: 24v Dimension: 774 x 600 x 266mm

TFR7BX2

Rooftop Evaporator

Cooling Capacity: 7.0 kW (23,884 BTU) Heating Capacity: 6.0 kW (20,472 BTU) Air Flow: 170 l/s (360 CFM) Power Supply: 24v Dimension: 774 x 600 x 266mm

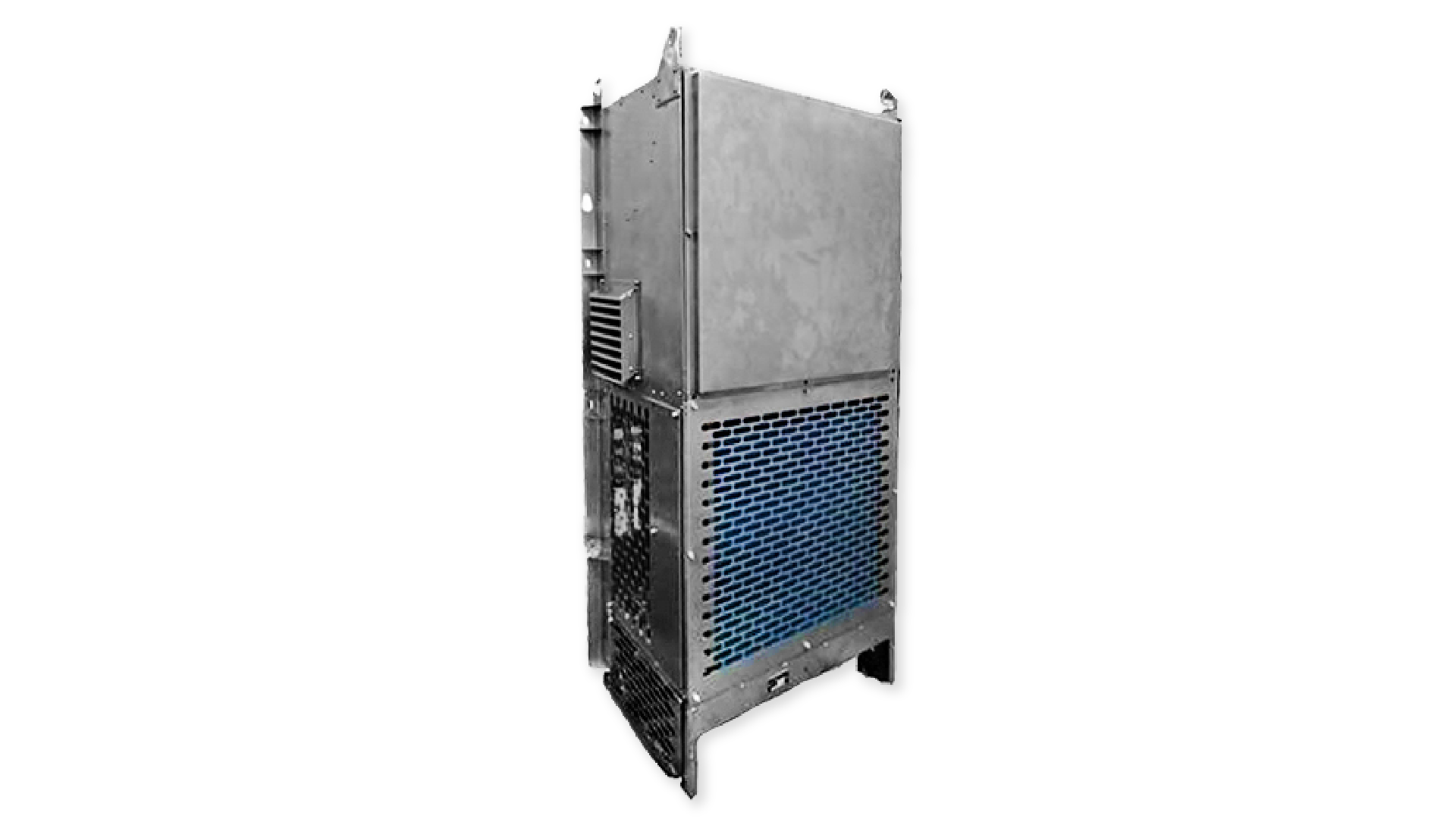

TPW10BX1

Wall Mounted Package

Cooling Capacity: 10.0 kW (34,120 BTU) Air Flow: 350 l/s (742 CFM) Power Supply: 24v Dimension: 770 x 500 x 1550mm
