E-Series

Economy Series

Our E-SERIES air conditioner range has been designed and developed for robust duty off road applications.

They have been refined to suit the applications of vibration, dust and high ambient temperature.

These systems are engineered to suit small cabin rubber tyred vehicles and tracked vehicles with all components selected to provide reliable service and designed for ease of serviceability.

Performance at an affordable range.

Download

E-Series Spare Parts Catalogue

[PDF, 4 MB]

Our Range

EB9E

Rooftop Evaporator

Cooling Capacity: 5.0 kW (17,060 BTU) Heating Capacity: 4.6 kW (15,695 BTU) Power Supply: 24V / 12V Dimension: 570 X 545 X 250mm

EC12C

Remote Condenser

Cooling Capacity: 4.0 kW (13,648 BTU) Power Supply: 24V / 12V Dimension: 600 X 455 X 225mm

EC12H

Ceiling Mount Evaporator

Cooling Capacity: 4.0 kW (13,648 BTU) Heating Capacity: 3.5 kW (11,942 BTU) - OPTIONAL Power Supply: 24V / 12V Dimension: 513 X 415 X 180 mm

EC12I

Internal Evaporator

Cooling Capacity: 4.0 kW (13,648 BTU) Heating Capacity: 3.5 kW (11,942 BTU) - OPTIONAL Power Supply: 24V / 12V Dimension: 550 X 435 X 180 mm

EC22C

Remote Condenser

Cooling Capacity: 6.0 kW (20,472 BTU) Power Supply: 24V / 12V Dimension: 980 X 332 X 190 mm

EC22H

Ceiling Evaporator

Cooling Capacity: 6.0 kW (20,472 BTU) Heating Capacity: 3.8 kW (12,966 BTU) - OPTIONAL Power Supply: 24V / 12V Dimension: 886 X 390 X 180 mm

ECW6BX1 - H0204590

Wall Mounted Condenser

Cooling Capacity: 6.5kW (22,180 BTU) Power Supply: 24VDC Dimension: 700 X 405 X 200 mm

EFF4

Internal Evaporator

Cooling Capacity: 4.0 kW (13,648 BTU) Heating Capacity: 4.0 kW (13,648 BTU) Power Supply: 24V Dimension: 390 X 210 X 455 mm

EFF5

Floor Mounted Evaporator

Cooling Capacity: 5.0 kW (17,061 BTU) Heating Capacity: 6.0 kW (20,473 BTU) Power Supply: 24VDC

EFR4

Rooftop Evaporator

Cooling Capacity: 4.0 kW (13,648 BTU) Power Supply: 24VDC Dimension: 470 X 600 X 260 mm

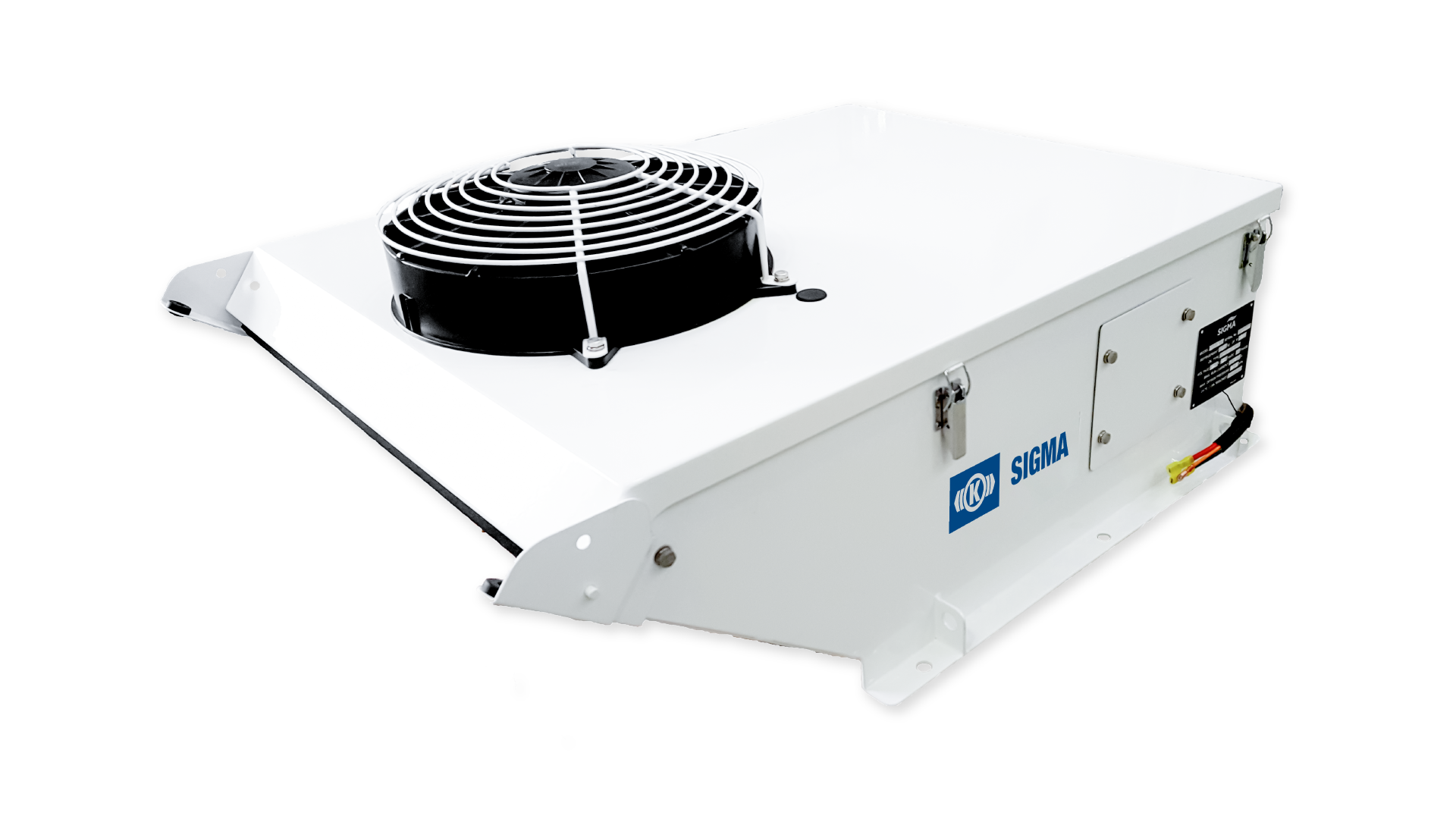

EPR4

Rooftop Packaged

Cooling Capacity: 4.5 kW (15,354 BTU) Heating Capacity: 4.0 kW (13,648 BTU) - OPTIONAL Power Supply: 12V / 24V Dimension: 804 X 650 X 364 mm
