H0235424
Our TCF8BX6 Rooftop Condenser 8kW 24V with removable Lid. Built for non-static applications encountering high vibration and shock loads. Designed with the highest quality components for maximum life and reliability.
- DRILL
- EXCAVATOR
- RAIL SPECIAL VEHICLES
SPECIFICATIONS

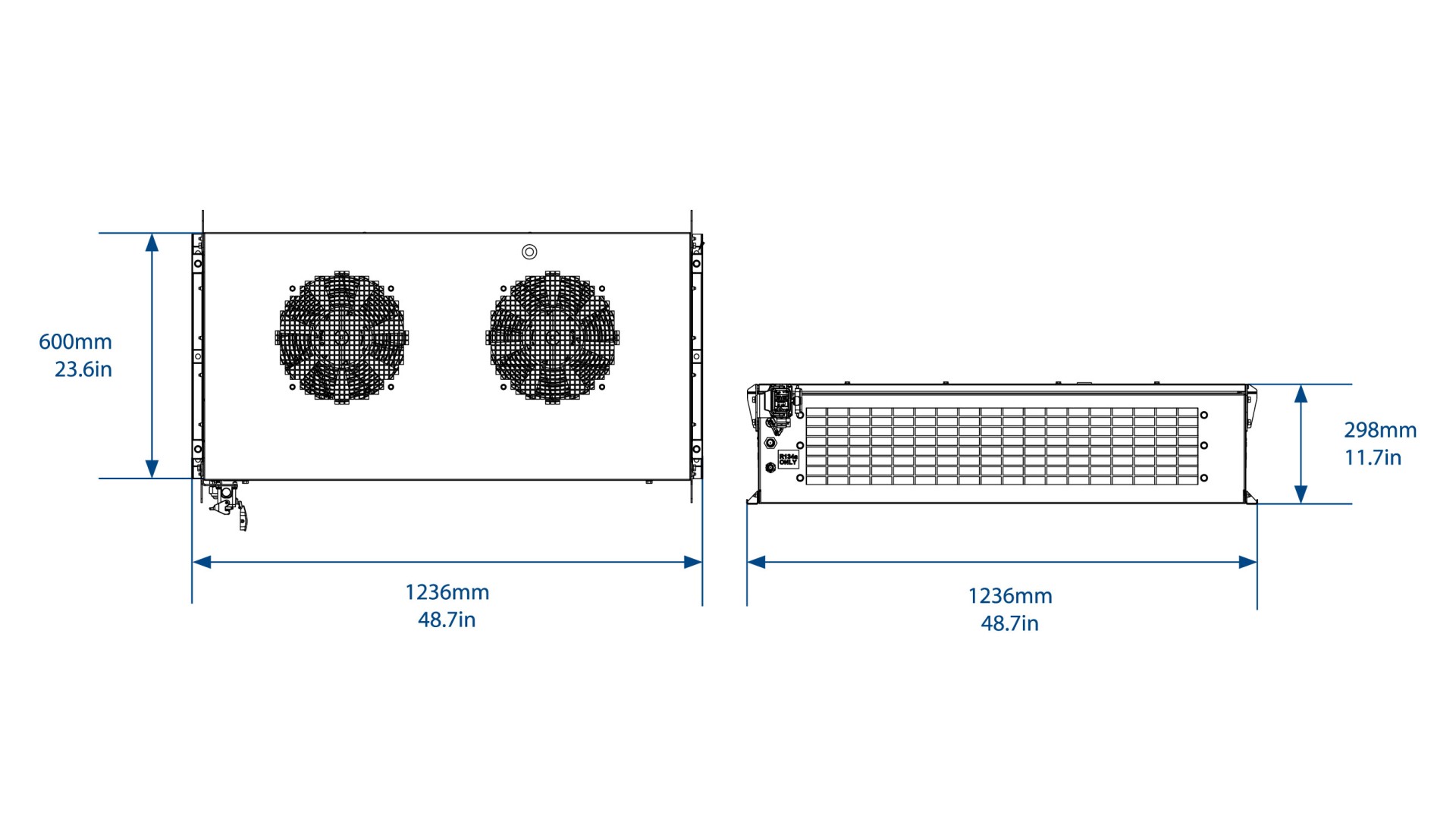

METRIC IMPERIAL Cooling Capacity 8.0 kW 27,296 BTU Fan Speeds 1 1 Air Flow 980 l/s 2,077 CFM Power Supply 24 VDC 24 VDC Current Draw 30 A 30 A Refrigerant R134a R134a Maximum Ambient Temperature 54°C 129°F Weight (nominal) 50.0 Kg 110.0 lbs Dimension L X W X H 1236mm X 600mm X 294 mm 48.7in X 23.6in X 11.6in
SPARE PARTS LIST
Sl.No. PART NO. DESCRIPTION QTY 1 AU531411 RECEIVER DRIER 3/8" 24UNF 165MM HIGH 1 2 H0192021 AXIAL BRUSHLESS FAN 24VDC DIA 305MM 2 3 AU110009 CONDENSER COIL 946X203X132MM 6RW 1 4 H0148597 HIGH PRESSURE SWITCH 1 5 H0234526 BULKHEAD HOUSING, SIDE ENTRY 1 6 H0192013 CONDENSER COVER ASSEMBLY 1 7 AU517254 PCAV 3/8” SOLDER 2 8 UR009 BULKHEAD FITTING 3/8" MF 1 9 UR011 BULKHEAD FITTING 5/8" MF #10 1
MAINTENANCE
ANNUAL (4,800 HOURS) AU531411 RECEIVER DRIER 3/8" 24UNF165MM HIGH 3 YEARS (14,400 HOURS) H0148597 HIGH PRESSURE SWITCH 1/4” FF 2415kPa H0193262 AXIAL BRUSHLESS FAN 24VDC DIA 305MM
COMPANION ITEMS
PART NO. DESCRIPTION H0406943 8kW Evaporator Unit 24VDC (TFC8BX5) H0407003 8kW Evaporator Unit 24VDC C/W 415 Heating (TFC8BX6) FVV40 Pressuriser H0404767 Hydraulic Compressor 200 VERTICAL H0404766 Hydraulic Compressor 200 HORIZONTAL AU260203 Compressor 3Ph 60Hz H0415158 Mating Plug Kit
