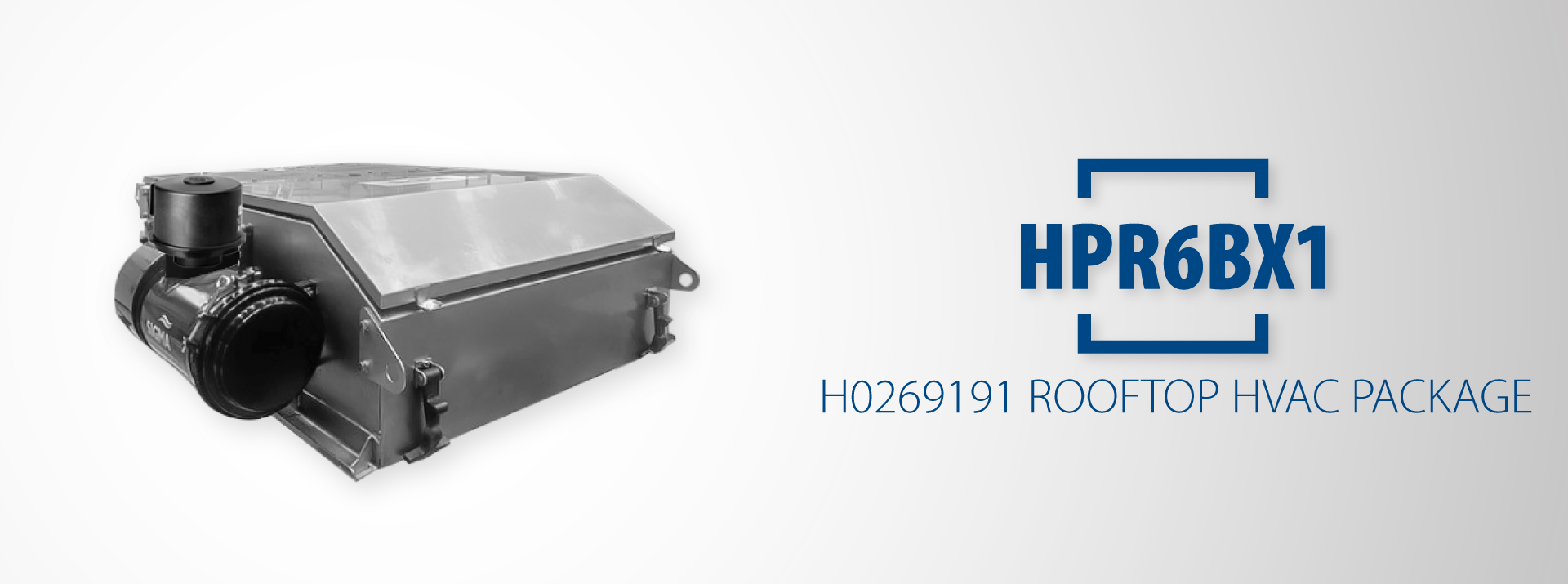

H0269191
Sigma‘s HPR6 rooftop package system with Heating was developed with our latest technology and a direct bolt on upgrade to our TDR5 systems.
This new generation system features the core benefits of its predecessor with improved reliability and modular design.
- DOZER
- DRILL
- EXCAVATOR
- RAIL SPECIAL VEHICLE
- TRUCK
- WHEEL LOADER
SPECIFICATIONS

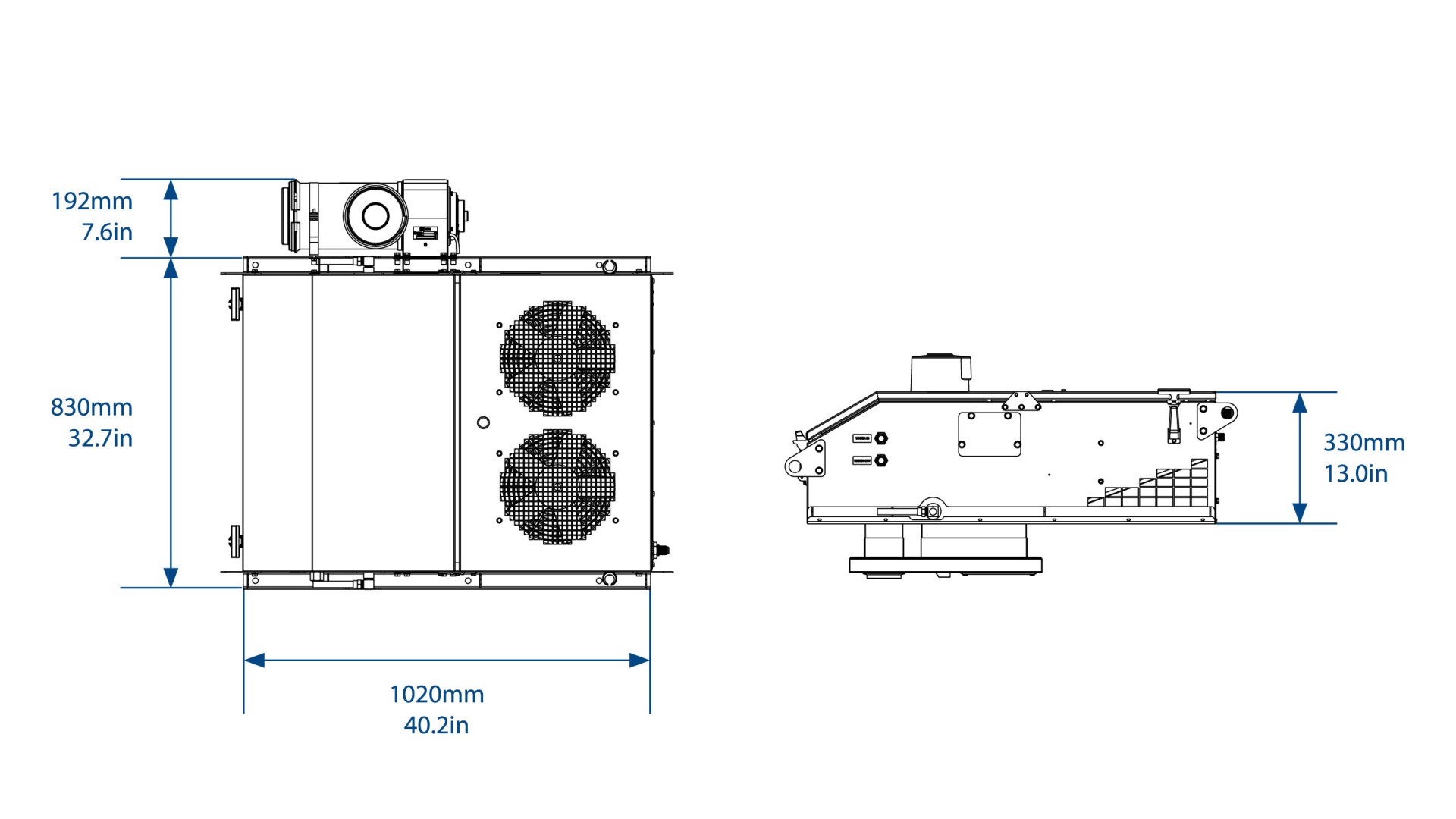

METRIC IMPERIAL Cooling Capacity 6.0 kW 20,472 BTU Heating Capacity 11 kW 37,533 BTU Fan Speeds 3 3 Air Flow 230 l/s 487.34 CFM Power Supply 24 VDC 24 VDC Current Draw 25 A 25 A Refrigerant R134a R134a Minimum Ambient Temperature -10ºC 14ºF Maximum Ambient Temperature 54ºC 129ºF Weight (nominal) 90 kgs 198.4 lbs Technical Manual Reference HD0148021 HD0148021 Dimension L X W X H 1020mm X 830mm X 330mm 40.2n X 32.7in X 12.9 in

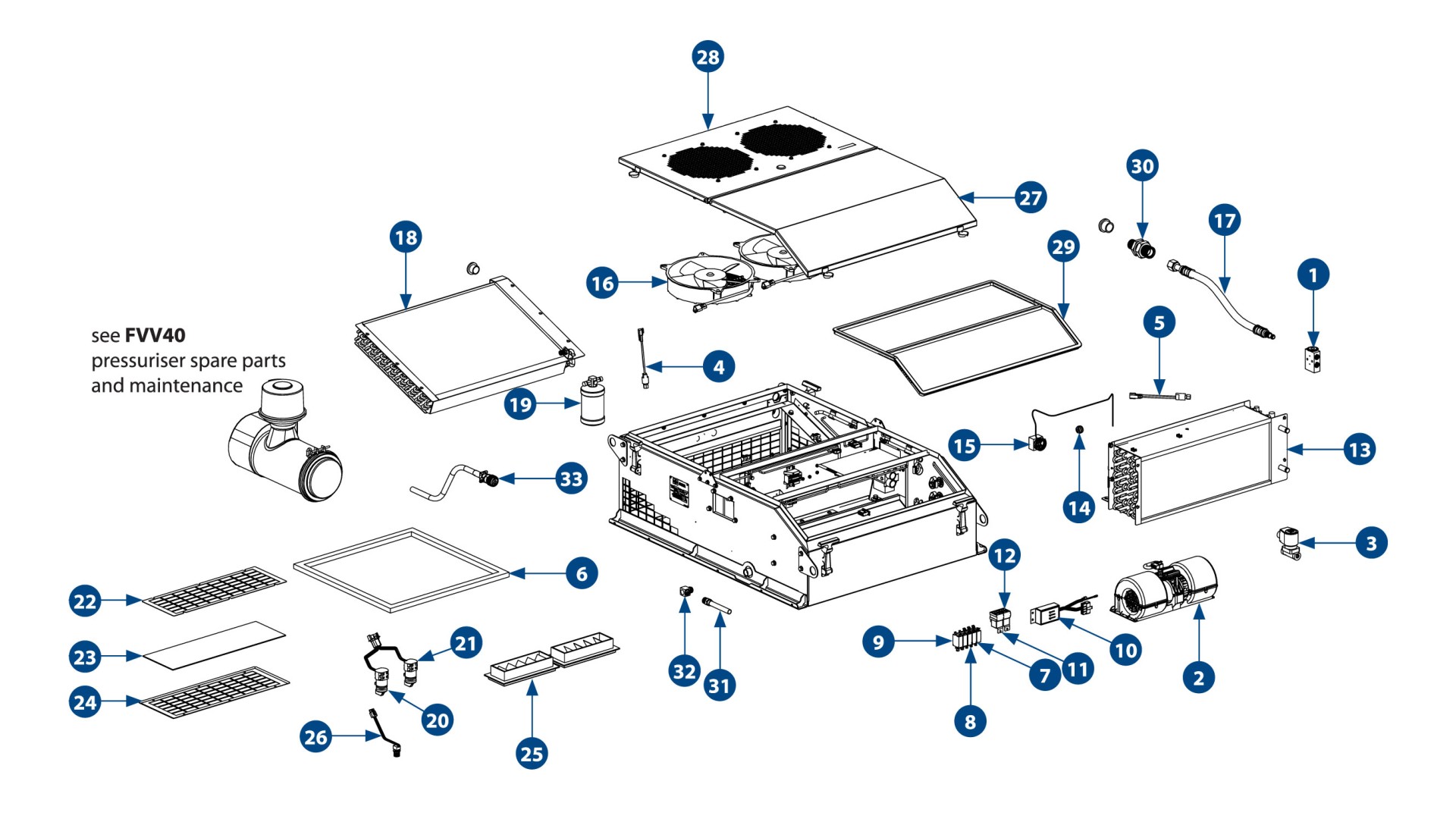

SPARE PARTS LIST
Sl.No. PART NO. DESCRIPTION QTY 1 AU521946 TX VALVE BLOCK 2T 1 2 H0088451 BLOWER ASSY - 24VDC 3 SPEED 1 3 H0112397 SOL VLV 24VDC 1/2” BSP WATER 1 4 H0148597 HIGH PRESSURE SWITCH 1 5 H0152017 LOW PRESSURE SWITCH 1 6 H0247253 ROOF SEAL 1 7 AU641C107 CIRCUIT BREAKER 10A 2 8 AU641C110 CIRCUIT BREAKER 15A 1 9 AU641065 CIRCUIT BREAKER 25A 2 10 H0262987 THERMOSTAT INC SENSOR 12-24VDC 1 11 AU661483 RELAY 20A 24VDC 2 12 ERR023 RELAY BASE - PANEL MOUNT 2 13 H0258193 COIL EVAPORATOR HEAT 1 14 UC022 KNOB SNOWFLAKE 1 15 UE016 THERMOSTAT DE-ICE 1 16 H0144118 CONDENSER FAN 24VDC 2 17 H0280095 FLEXIBLE HOSE O RING STRAIGHT #12 & #10 1 18 H0258471 CONDENSER COIL 1 19 AU531422 RECEIVER DRIER WITH SIGHT GLASS 3/8” MIOR 1 20 AU663562 ROTARY SWITCH MODE 1 21 H0126519 ROTARY SWITCH FAN 1 22 H0251907 FILTER COVER, INSIDE 1 23 H0251908 FILTER CLOTH 1 24 H0252200 FILTER COVER, RETURN AIR 1 25 UC901 DIFFUSER 2 26 AU681926 POTENTIOMETER 1 27 H0258194 EVAPORATOR COVER, FINAL ASSEMBLY 1 28 H0258494 CONDENSER COVER, FINAL ASSEMBLY 1 29 AU862211 LID RUBBER SEAL 3.5 30 H0498827 BULKHEAD FITTING 5/8” X 3/4” MIO 1 31 H0498831 DRAIN PIPE, 136L x 1/2” MBSPT x 16OD 1 32 H0498832 FITTING, ELB 1/2 MBSPP X 1/2 FBSPP 1 33 H0498828 WIRING HARNESS,CAROL S00W 3C AWG10 1
MAINTENANCE
MONTHLY (400 HOURS) H0251908 Filter Cloth ANNUAL (4,800 HOURS) AU531422 RECEIVER DRIER H0088451 BLOWER ASSY - 24VDC 3 SPEED H0144118 CONDENSER FAN 24VDC 3 YEARS / 14,400 HOURS AU521946 TX Valve block 2T H0148597 HIGH PRESSURE SWITCH H0152017 LOW PRESSURE SWITCH H0262987 THERMOSTAT INC SENSOR 12-24VDC AU681926 POTENTIOMETER AU862211 LID RUBBER SEAL H0280095 FLEXIBLE HOSE O RING STRAIGHT #12 & #10 UE016 THERMOSTAT DE-ICE AU661483 RELAY 20A 24VDC
COMPANION ITEMS
PART NO. DESCRIPTION H0404765 Hydraulic Driven Compressor 170 (V) H0404764 Hydraulic Driven Compressor 170 (H) AU270306 Engine Driven Compressor AU270307 Engine Driven Compressor
