MPV5MX2 - Rooftop HVAC Package
MPV5MX2
Our MPV5MX2 is built for non-static applications encountering light to mild vibration and shock loads typical for overhead cranes on rails. The unit is supplied in a package configuration with all the electrics integrated into the air conditioning unit for space saving and integrity
VEHICLES
- INDUSTRIAL
- SMELTERS
- RAIL SPECIAL VEHICLE
CONTACT
Sigma Australia Knorr-Bremse Australia Pty. Ltd. (Sigma)
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 5.0 kW | 17,060 BTU |
| Heating Capacity | 3.0 kW | 10,236 BTU |
| Fan Speeds | 3 | 3 |
| Air Flow | 190 l/s | 403 CFM |
| Fresh Air (Optional) | 50 l/s | 106 CFM |
| Power Supply | 415 VAC 3Phase-50Hz | 415 VAC 3Phase-50Hz |
| Current Draw | 10 A | 10 A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 54°C | 129°F |
| Weight (nominal) | 150.0 Kg | 330.0 lbs |
| Technical Manual Reference | SM347-5341 | SM347-5341 |

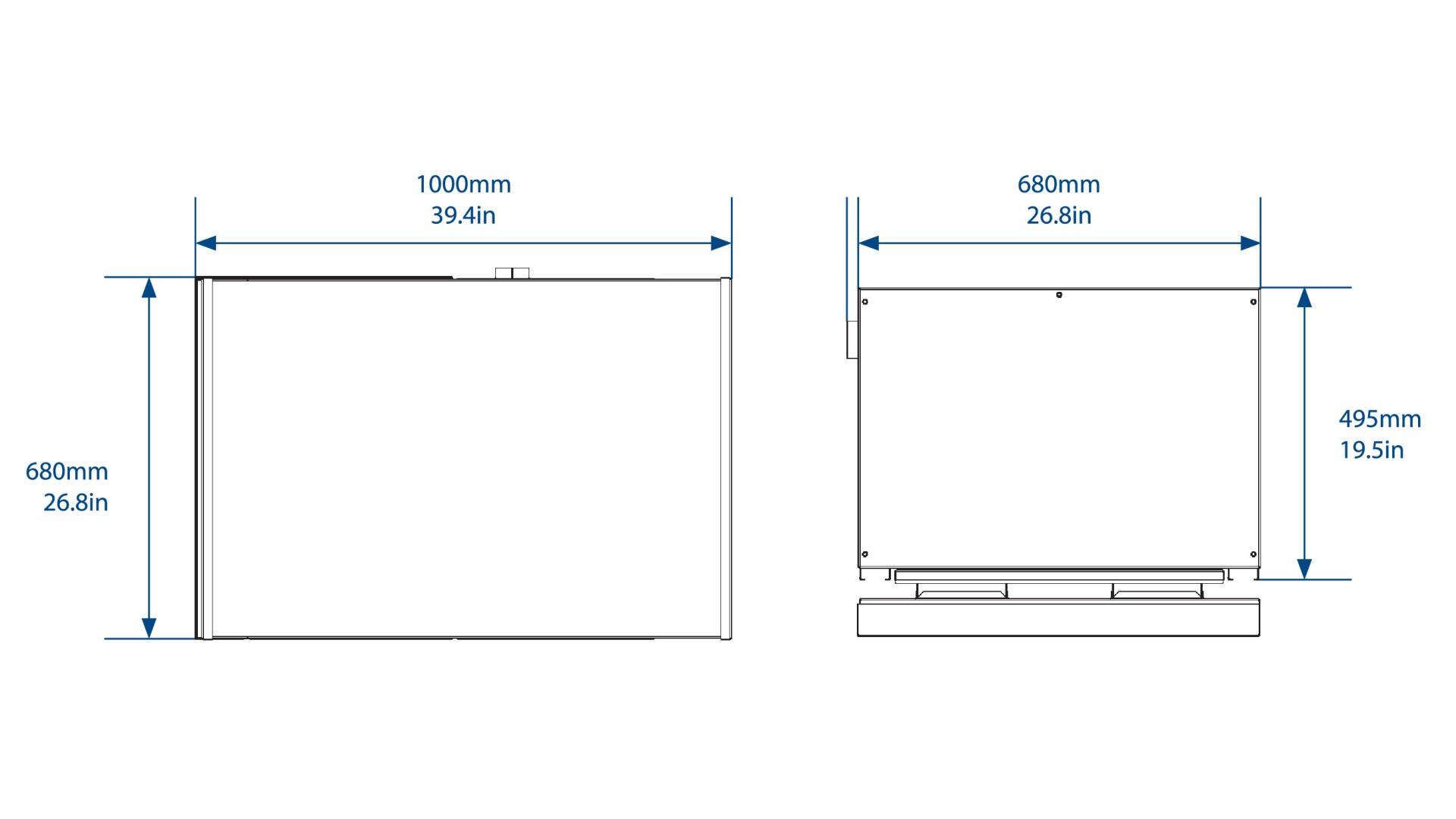

| Dimension L X W X H | 1000mm X 680mm X 495mm | 39.4in X 26.8in X 19.5in |

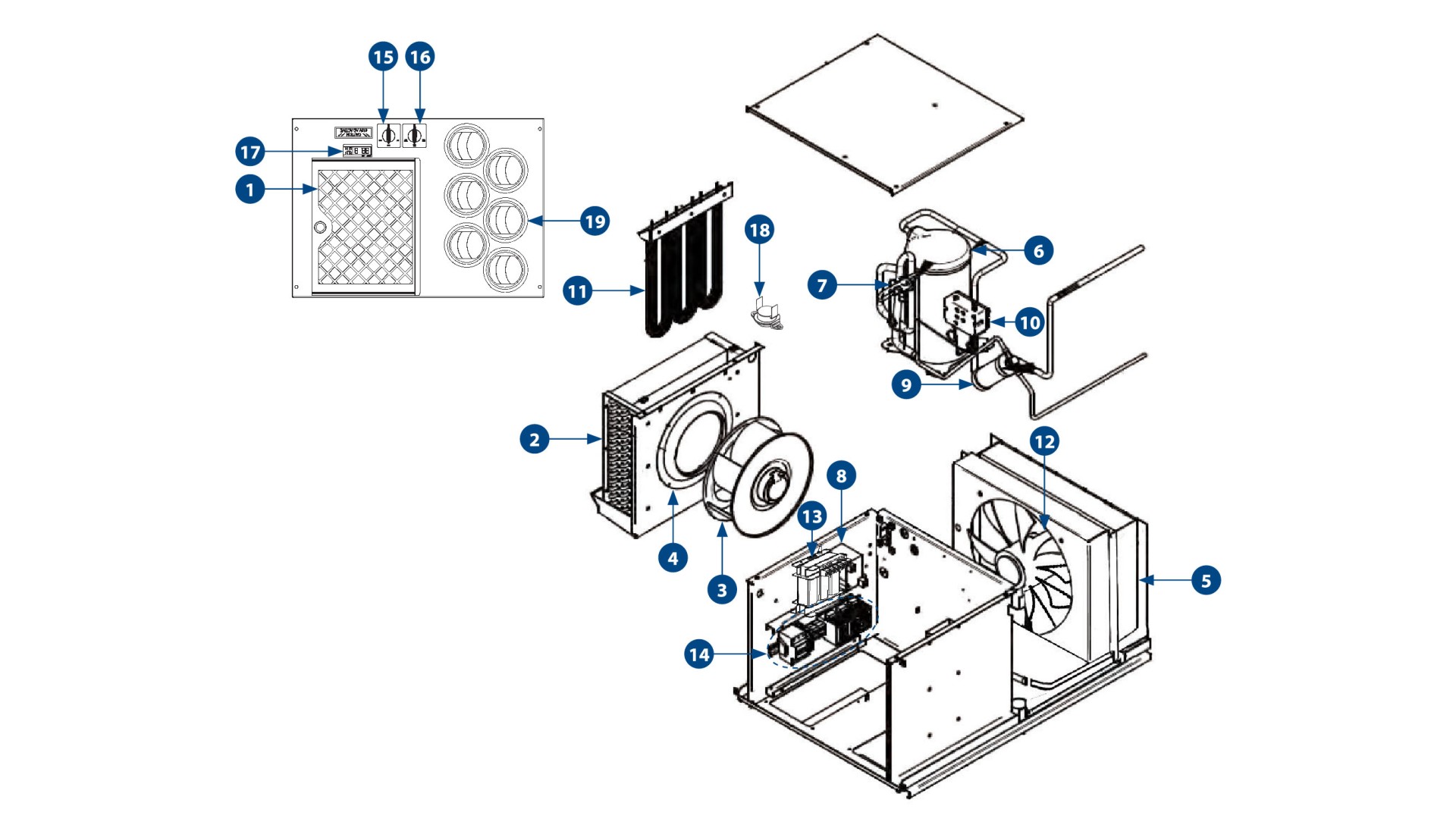

EVAPORATOR SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU4601005 | FILTER | 1 |
| 2 | AU120492 | EVAPORATOR COIL 380MM X 381MM X 88MM 4 RW MPV5 | 1 |
| 3 | AU411041 | BLOWER IMPELLER 310D X 154W 415V 50HZ | 1 |
| 4 | AU410956 | INLET RING 200MM | 1 |
| 5 | AU110397 | CONDENSER COIL 540X381X79 5RW MPV5 | 1 |
| 6 | AU230806 | COMPRESSOR 400VAC 50HZ 460VAC 60HZ | 1 |
| 7 | AU521509 AU521504 | TX VALVE 2T 3/8” IN 1/2”OUT 1/4EQ R134A TX ORIFICE 2T R22 #04 | 1 1 |
| 8 | UE104 | TRANSFORMER 415V/110VAC 115W SCREEN | 1 |
| 9 | AU531415 | RECEIVER DRIER 3/8” MF 193MM HIGH | 1 |
| 10 | AU523112 | DUAL PRESSURE CONTROL LP AUTO HP AUTO | 1 |
| 11 | AU691104 | HEATER U SHAPE 1.0KW 240V 365MM BRS FIN | 3 |
| 12 | AU4201004 AU421020 | FAN AXIAL 400MM 400VAC FAN GRILLE SUIT 400MM | 1 1 |
| 13 | AU666090 | TRANSFORMER 415-240V | 1 |
| 14 | AU651032 AU6511002 AU6511001 AU641093 AU641096 AU6531003 | CONTACTOR 9A 3 POLE 110VAC CONTACTOR 9A 110V AUX CONTACT CIRCUIT BREAKER 16A 3 POLE CIRCUIT BREAKER 2A 1 POLE MECHANICAL INTERLOCK | 2 3 3 1 1 1 |
| 15 | AU6631001 | ROTARY SWITCH MODE | 1 |
| 16 | AU663004 | ROTARY SWITCH FAN | 1 |
| 17 | AU681960 AU681961 | THERMOSTAT DIGITAL 24V SENSOR PROPE | 1 1 |
| 18 | AU821300 | DIFFUSER ROUND | 4 |
| AU681020 | THERMOSTAT T5 50°C SPST N/C AUTO | 1 | |
| AU517502 | VALVE ACCESS 1/4” 1/4” & 3/8”OD SOLDER | 1 | |
| UE016 | THERMOSTAT DEICE STUD | 1 | |
| AU845248 | ANTI VIBRATION MOUNT | 4 |
EVAPORATOR MAINTENANCE
AU4601005
FILTER
AU531415
RECEIVER DRIER 3/8” MF 193mm HIGH
AU521509
TX VALVE 2T 3/8”IN 1/2” OUT 1/4” EQ R134A
AU521504
TX ORIFICE 2T R22 #04
AU523112
DUAL PRESSURE CONTROL LP AUTO HP AUTO
UE016
THERMOSTAT DEICE STUD
AU845248
ANTI VIBRATION MOUNT
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| FVV50M1 | Fresh Air Pressuriser 50 l/s 415VAC |
| MKRP3 | Outer Case Roof MTD |
| MKWP1 | Outer Case Wall MTD |
