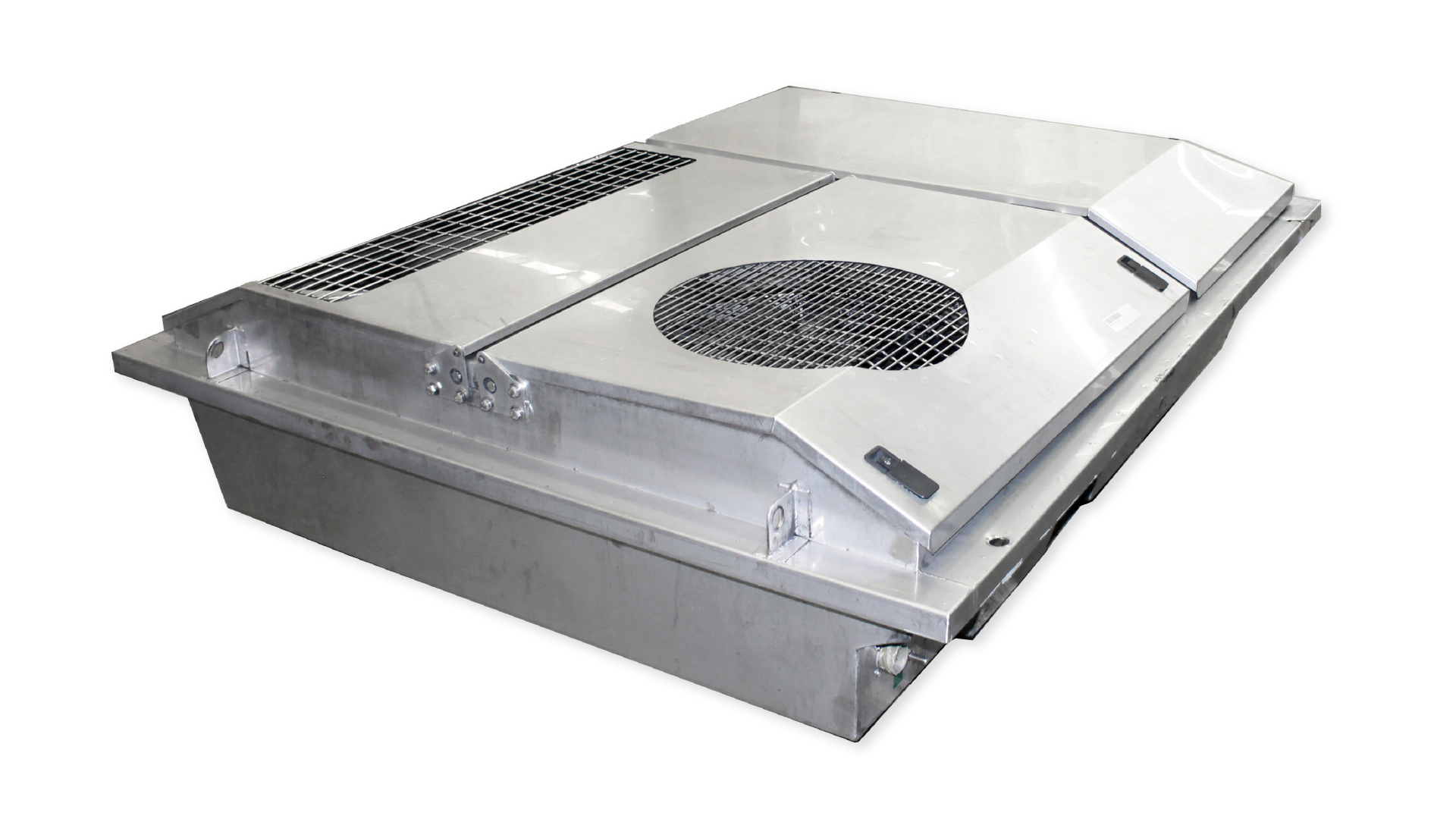

LPR8CX12
Locomotive Rooftop Package
LPR8cx12 is a locomotive packaged air conditioner system rated at 6.7kW cooling with 350 l/s (741CFM) air flow.
VEHICLES
- RAIL SPECIAL VEHICLES
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 6.7 kW | 22,861 BTU |
| Power Supply | 74VDC | 74VDC |
| Supply Air | 350l/s | 741CFM |
| Fresh Air | 35l/s | 74CFM |
| Weight | 270 kgs | 595 lbs |
| Dimension L X W X H | 1609 x 1250 x 395mm | 63.3 x 49.2 x 15.5in |

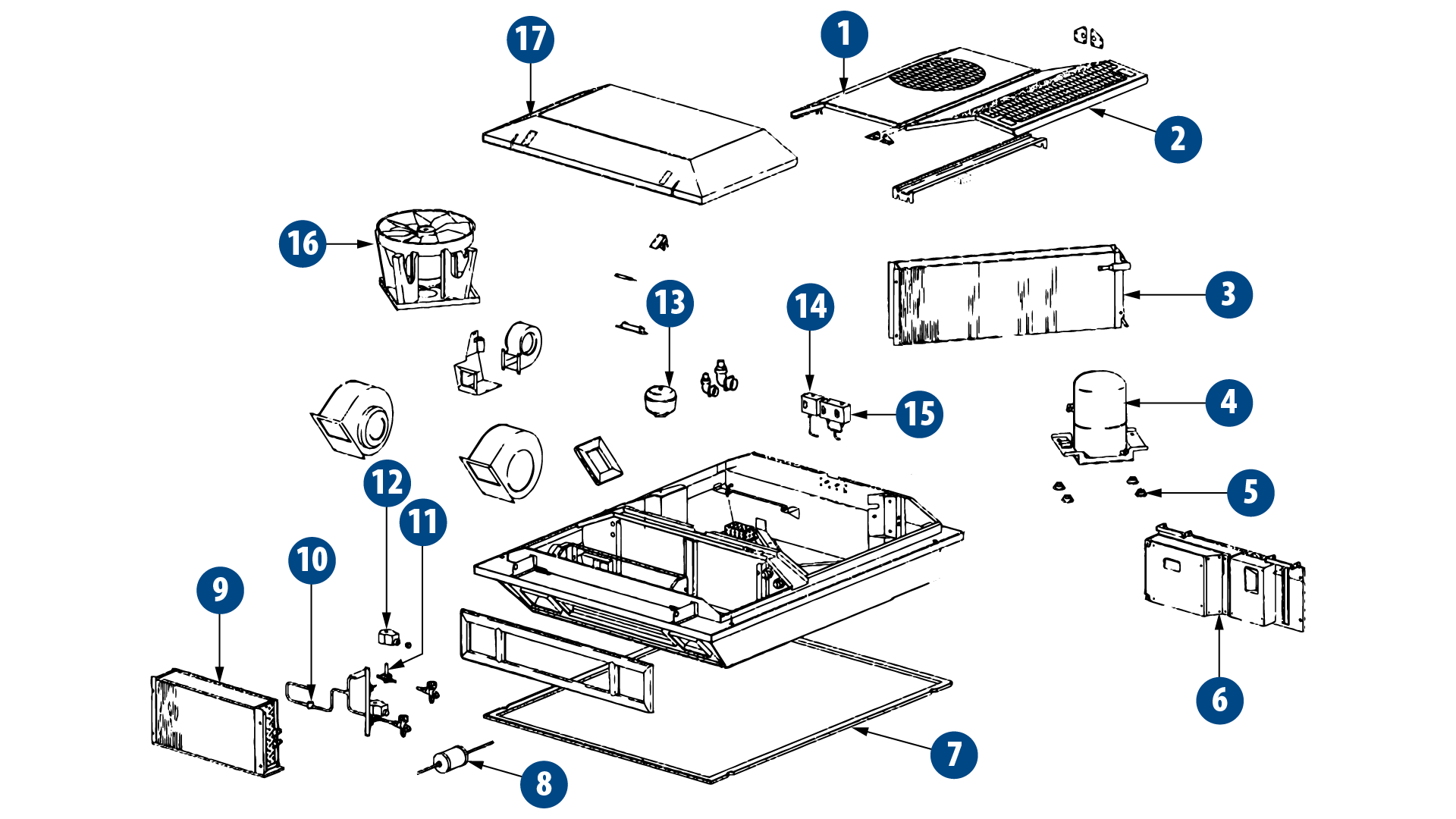

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AS251725 | CONDENSER COVER L/H ASSY | 1 |
| 2 | AS251724 | CONDENSER COVER R/H ASSY | 1 |
| 3 | AU110983 | COND COIL 975X356X88 4RW | 1 |
| 4 | AU230351 | COMP TECU TFHV4525Y SL | 1 |
| 5 | AU845014 | ANTI VIBRATION MOUNT S2 M8 | 4 |
| 6 | AS3461027 | ELEC PANEL ASSY | 1 |
| 7 | AU862127 | SEAL 1609X1250 LPR8CX | 1 |
| 8 | AU531186 | DRIER 3/8 SL EK163S | 1 |
| 9 | AU120955 | EVAP COIL 600X305X132 6 ROW | 1 |
| 10 | AU533552 | LMI 3/8" SOLDER | 1 |
| 11 | AU522021 | SOLENOID VALVE 3/8" SOLDER NC | 2 |
| 12 | AU668052 | COIL 74VDC | 2 |
| 13 | AU460715 | PRE CLEANER | 1 |
| 14 | AU523610 | HPC PENN P77 AAA9550* | 1 |
| 15 | AU523108 | DUAL PRESSURE CONTROL | 1 |
| 16 | AS251715 | CONDENSER FAN ASSY | 1 |
| 17 | AS3461021 | EVAPORATOR COVER ASSY | 1 |
