LPR8CX10
LPR8CX10

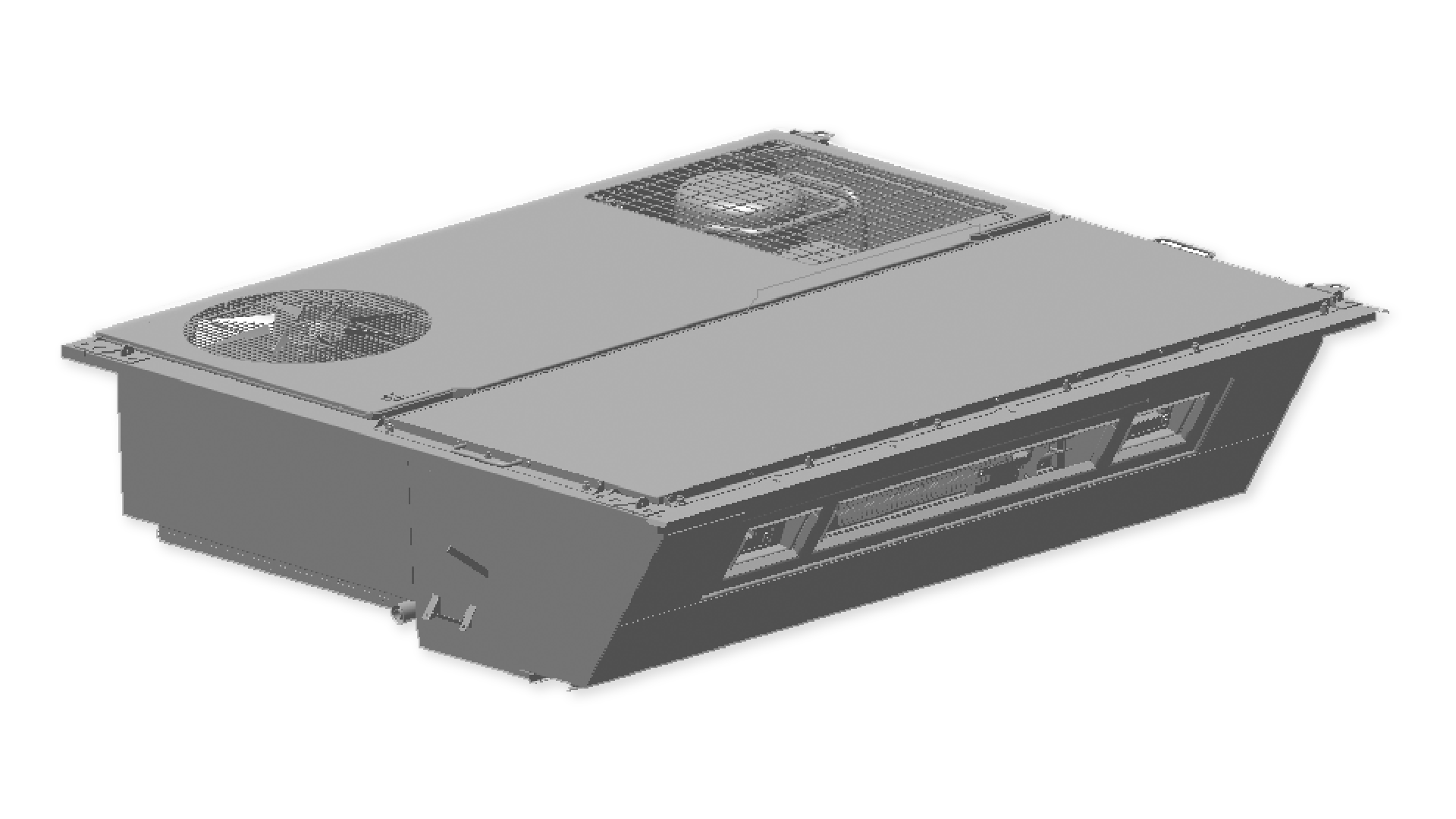

LPR8cx10 is a locomotive packaged air conditioner system rated at 7.5kW cooling & 6.0kW heating capacity with 440 l/s (930 CFM) air flow.
VEHICLES
- RAIL SPECIAL VEHICLES
CONTACT
Sigma Australia Knorr-Bremse Australia Pty. Ltd. (Sigma)
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 7.5 kW | 25,600 BTU |
| Heating Capacity | 6 kW | 20,500 BTU |
| Power Supply | 74VDC | 74VDC |
| Supply Air | 440l/s | 930CFM |
| Fresh Air | 40l/s | 85CFM |
| Weight | 320 kgs | 705 lbs |
| Dimension L X W X H | 1620 x 1520 x 410mm | 63.8 x 59.8 x 16.1in |

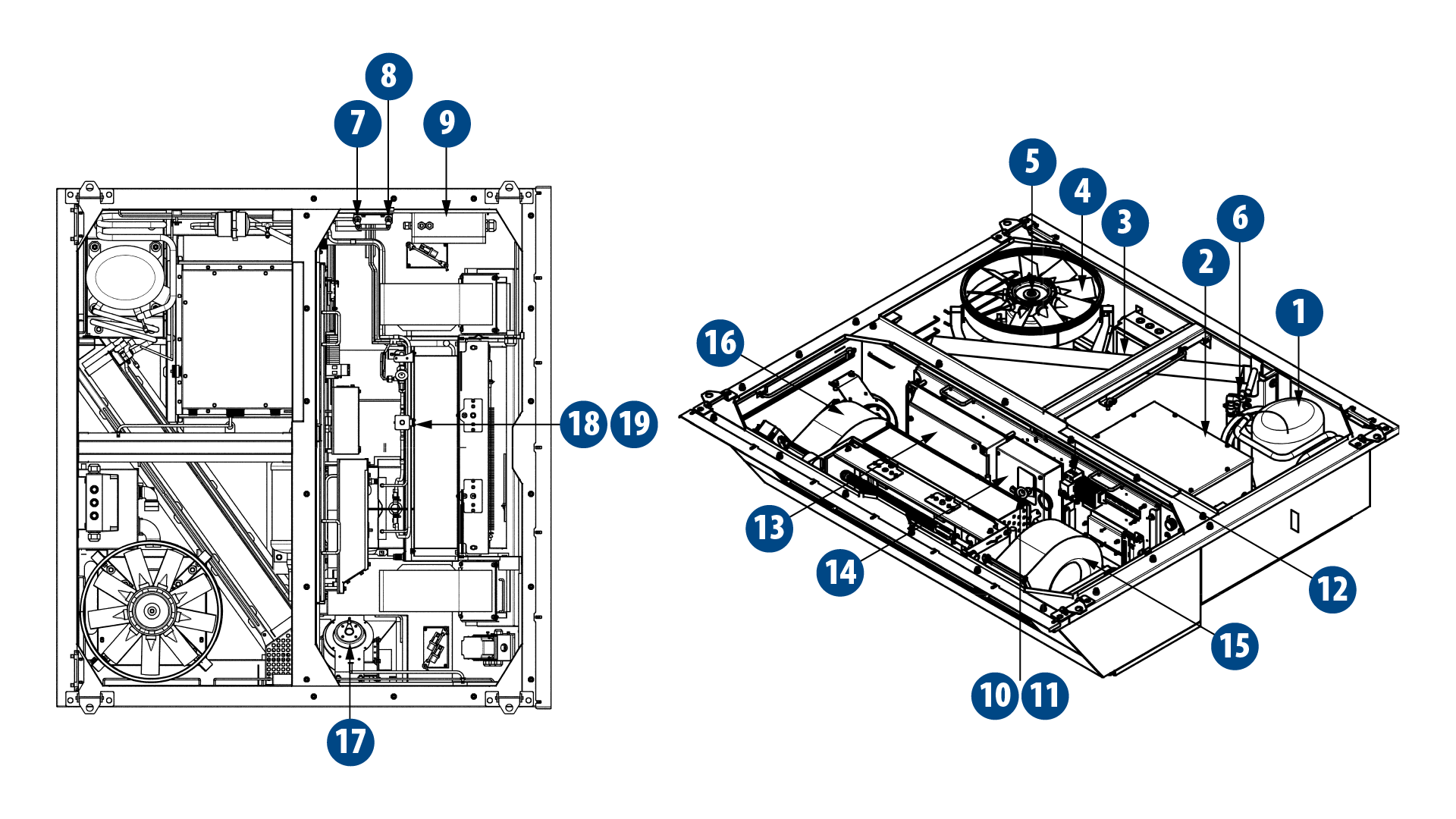

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU230351 | COMPRESSOR | 1 |
| 2 | AU677150 | DC – DC CONVERTER | 1 |
| 3 | AU110983 | CONDENSER COIL | 1 |
| 4 | AU310213 | CONDENSER FAN MOTOR | 1 |
| 5 | AU420156 | CONDENSER FAN BLADE | 1 |
| 6 | AU517622 | CHECK VALVE | 1 |
| 7 | AU682051 | SUCTION PRESSURE TRANSDUCER | 1 |
| 8 | AU682052 | DISCHARGE PRESSURE TRANSDUCER | 1 |
| 9 | AS3197033 | HEATER TERMINAL BOX | 1 |
| 10 | AU521509 | TX VALVE | 2 |
| 11 | AU521503 | TX VALVE ORIFICE | 2 |
| 12 | AU641390 | CONTACT CIRCUIT BREAKER | 1 |
| 13 | AU677054 | COMPRESSOR/CONDENSER FAN INVERTER | 1 |
| 14 | AU677055 | SUPPLY FAN INVERTER | 1 |
| 15 | AU4111026 | SUPPLY AIR BLOWERS RIGHT | 1 |
| 16 | AU4111025 | SUPPLY AIR BLOWERS LEFT | 1 |
| 17 | AU411059 | FRESH AIR BLOWER | 1 |
| 18 | AU522021 | SOLENOID VALVE BODY | 2 |
| 19 | AU668140 | SOLENOID VALVE COIL | 2 |
