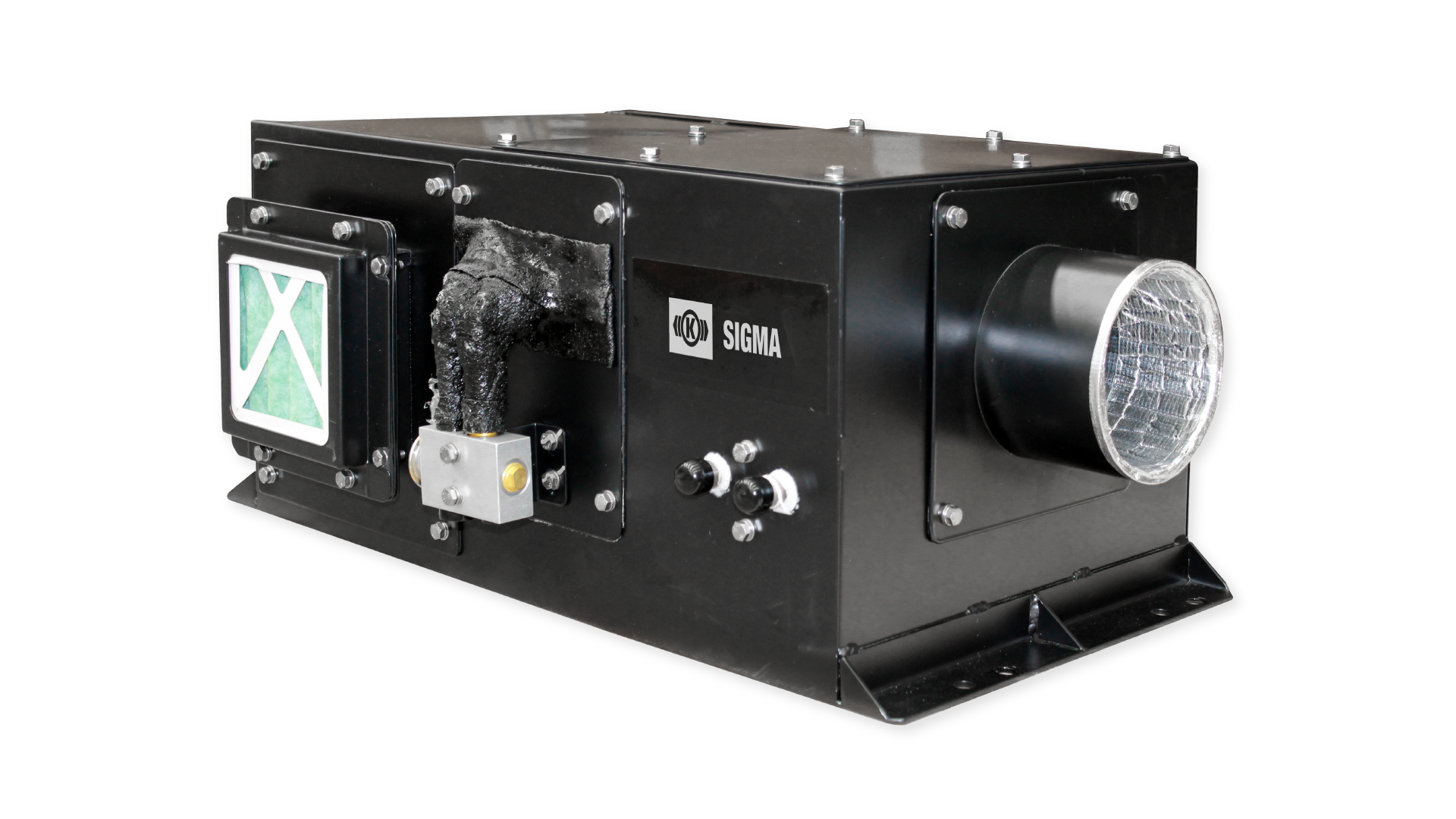

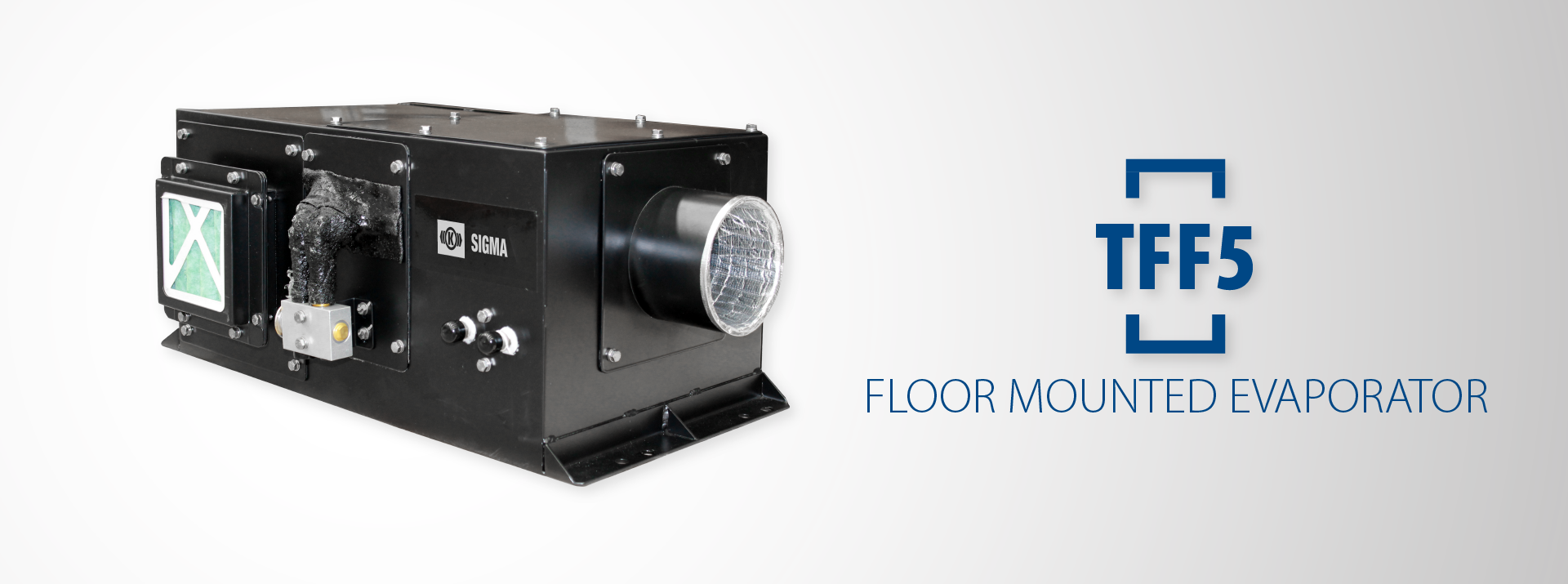

TFF5 - Floor Mounted Evaporator
TFF5BX1 / TFF5BX2
Our TFF5 Floor Mounted Evaporator has been designed and developed for heavy duty off road applications. It has been refined to suit the most severe application of high vibration, shock loads and high ambient. Rated at 5.0 kW (17060 BTU) cooling & 4.0 kW (13648 BTU) heating capacity.
VEHICLES
- EXCAVATOR
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 5.0 kW | 17,060 BTU |
| Heating Capacity | 4.0 kW | 13,648 BTU |
| Fan Speeds | 3 | 3 |
| Air Flow | 125 l/s | 265 CFM |
| Fresh Air | 10 l/s | 21 CFM |
| Power Supply | 24 V | 24 V |
| Current Draw | 20 A | 20 A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 54°C | 129°F |
| Weight (nominal) | 30.0 Kg | 66.0 lbs |
| Technical Manual Reference | SM510-4044 | SM510-4044 |

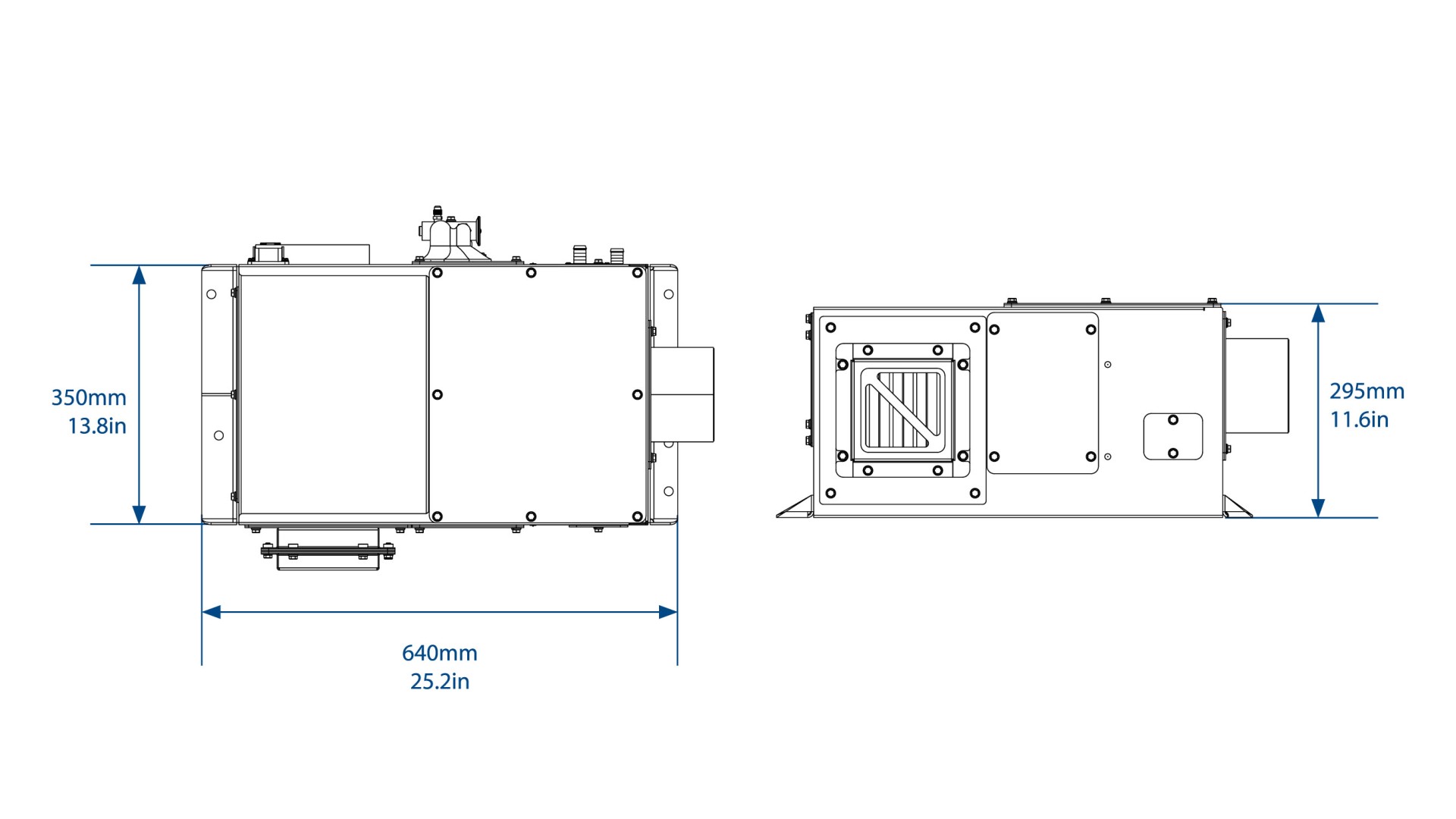

| Dimension L X W X H | 690mm X 441mm X 295mm | 27.2in X 17.4in X 11.6 in |

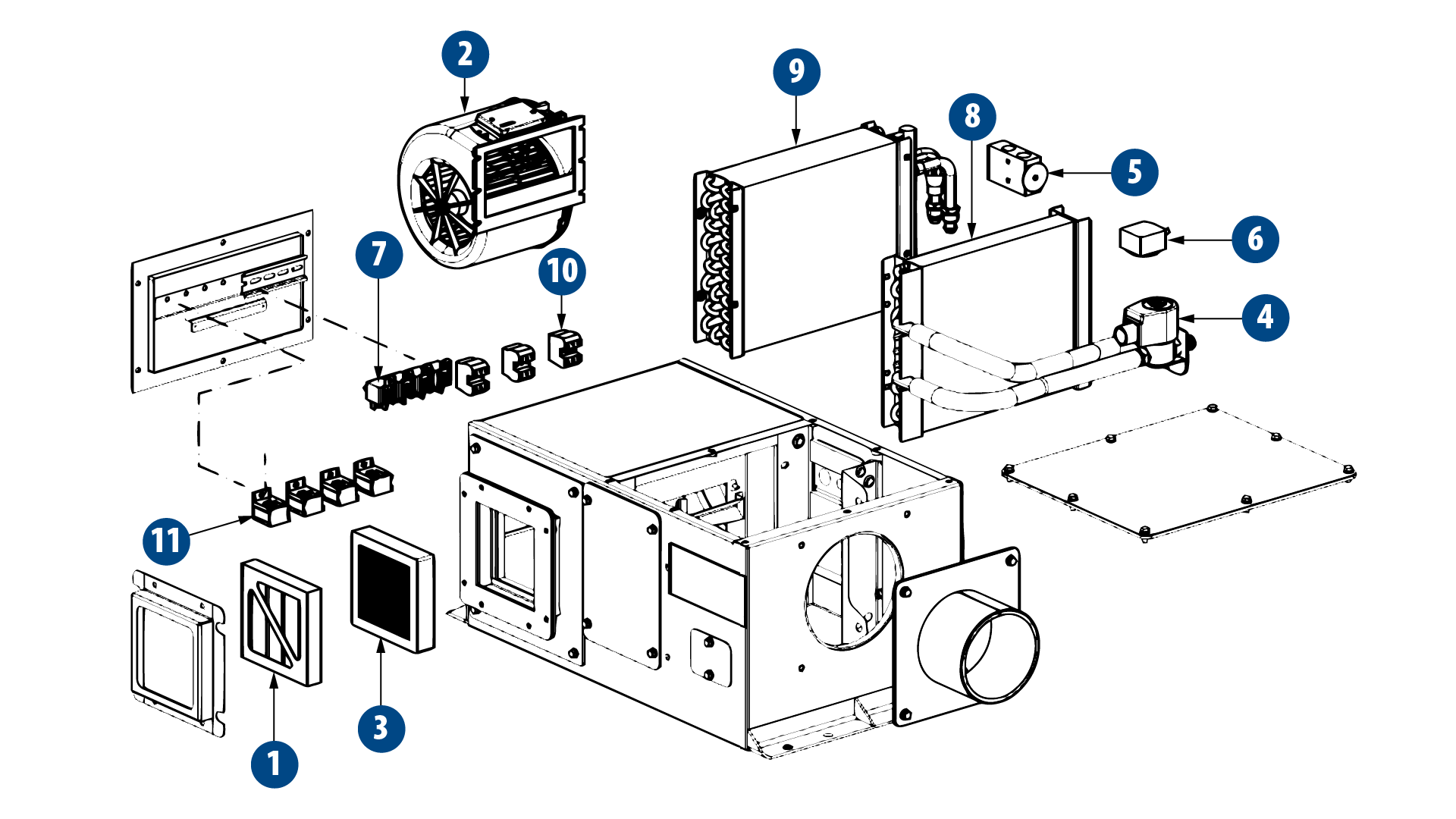

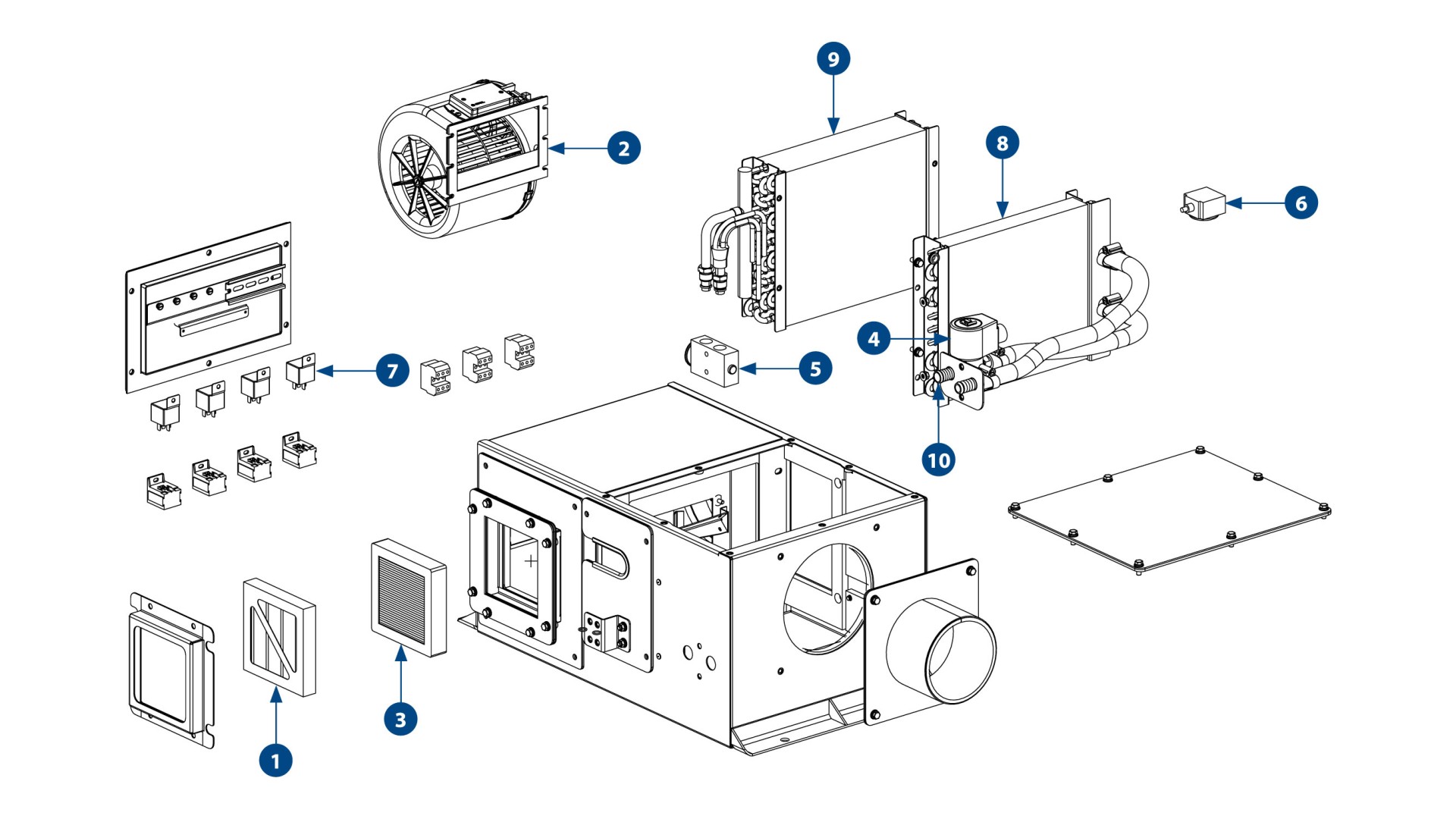

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU4601021 | FILTER PLEATED 30/30 130MM X 130MM X 22MM | 1 |
| 2 | AU4301014 | FAN DECK | 1 |
| 3 | AU4601020 | FILTER HEPA 95% EFF 130MM X 130MM X 27MM | 1 |
| 4 | UE057 | SOLENOID VALVE 24VDC 1/4BSP WATER | 1 |
| 5 | H0081856 | TX VALVE BLK PARKER 2T R134A | 1 |
| 6 | UE016 | THERMOSTAT DEICE STUD | 1 |
| 7 | H0076255 | RELAY 24V 40A-DIODE PROTECTED | 4 |
| 8 | AU1301002 | HEATER COIL 250MM X 228MM X 33MM 2ROW | 1 |
| 9 | AU1201014 | EVAPORATOR COIL 250MM X 228MM X 66MM 4ROW | 1 |
| 10 | AU635300 | TERMINAL BLOCK SIE 8WA1011-3DH21 | 3 |
| 11 | ERR023 | RELAY BASE 5 PIN (PANEL MOUNT) | 1 |
| H0037067 | FILTER - OPTIONAL | 1 | |
| AU679519 | CONTROLLER ELECTRICAL 24VDC DISPLAY | 1 | |
| AU674003 | DIODE P600M 1000V 6A | 4 | |
| AU635485 | END BRACKET KLIPPON EW35 038356 | 2 | |
| UC020 | HOSE CLEAR PVC 12 5MM ID X 3MM W | 2 |
MAINTENANCE
AU4601021
FILTER PLEATED 30/30 130 X 130 X 22MM
H0037067
FILTER - OPTIONAL
AU4301014
FAN DECK
AU4601020
FILTER HEPA 95% EFF 130MM X 130MM X 27MM
UE057
VALVE SOLENOID 1/4” BSP 24VDC WATER
H0081856
TX VALVE BLK PARKER 2T R134A
UE016
THERMOSTAT DEICE STUD
H0076255
RELAY 24V 40A-DIODE PROTECTED
AU679519
CONTROLLER ELECTRICAL 24VDC DISPLAY
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| TCW5BX1 | Electric Condenser |
| TCW5BX2 | Electric Condenser |
| EB9P4X | Pressuriser |
| HDC150 | Hydraulic Compressor |
| AU2961001 | Electric Compressor |
| AU270311 | Engine Driven Compressor |
| AU270312 | Engine Driven Compressor |
| H0081855 | Receiver Drier |
| KNHV90043 | TX Valve Fitting Kit |
| KNHV90044 | R/A Box Duct Kit |
| AU531422 | Receiver Drier |
| H0023631 | Return Air Box - 6 |
| AS4044301 | Return Air Duct - 5 |
