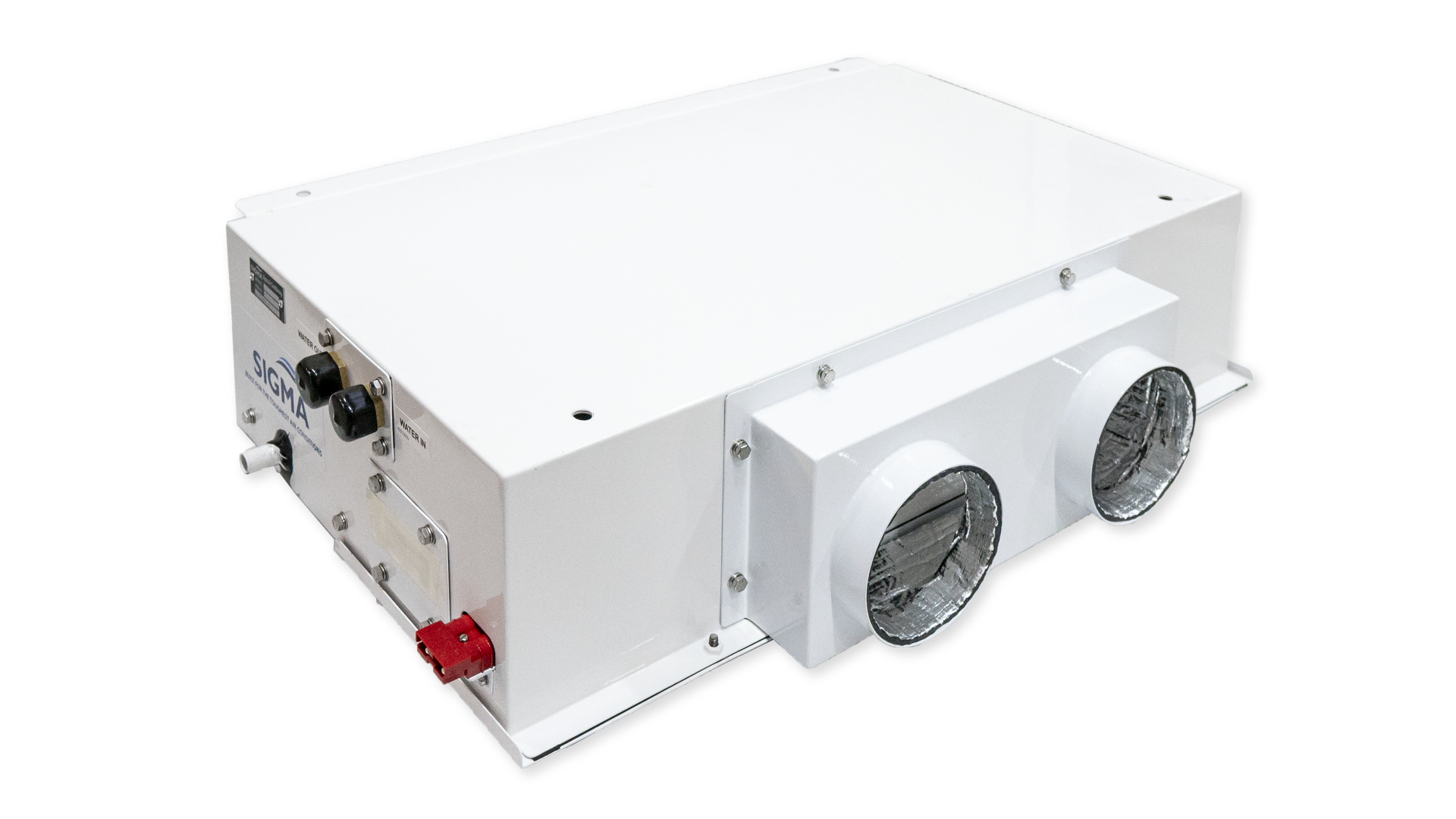

TFC6BX2 - Ceiling Evaporator
H0094278
This internal evaporator provides a solution for the mounting of an evaporator when external roof or wall mounting another of our T Series units is not an option. It's low profile and size allows for the mounting of a unit inside the cabin, without causing interference to the operator. The unit is also optioned to allow it to be wall mounted inside a cabin if required. The standard TFC6 unit is simply fitted with a wall mount drain tray option kit which allows for condensate collection in it's new configuration.
VEHICLES
- DRILL
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 6.0 kW | 20,472 BTU |
| Heating Capacity | 7.0 kW | 23,884 BTU |
| Fan Speeds | 3 | 3 |
| Air Flow | 200 l/s | 424 CFM |
| Fresh Air | 40 l/s | 85 CFM |
| Power Supply | 24 V | 24 V |
| Current Draw | 13 A | 13 A |
| Refrigerant | R134a | R134a |
| Minimum Ambient Temperature | -10ºC | 14ºF |
| Maximum Ambient Temperature | 54°C | 129°F |
| Weight (nominal) | 35.0 Kg | 77.0 lbs |
| Technical Manual Reference | HD0041895 | HD0041895 |

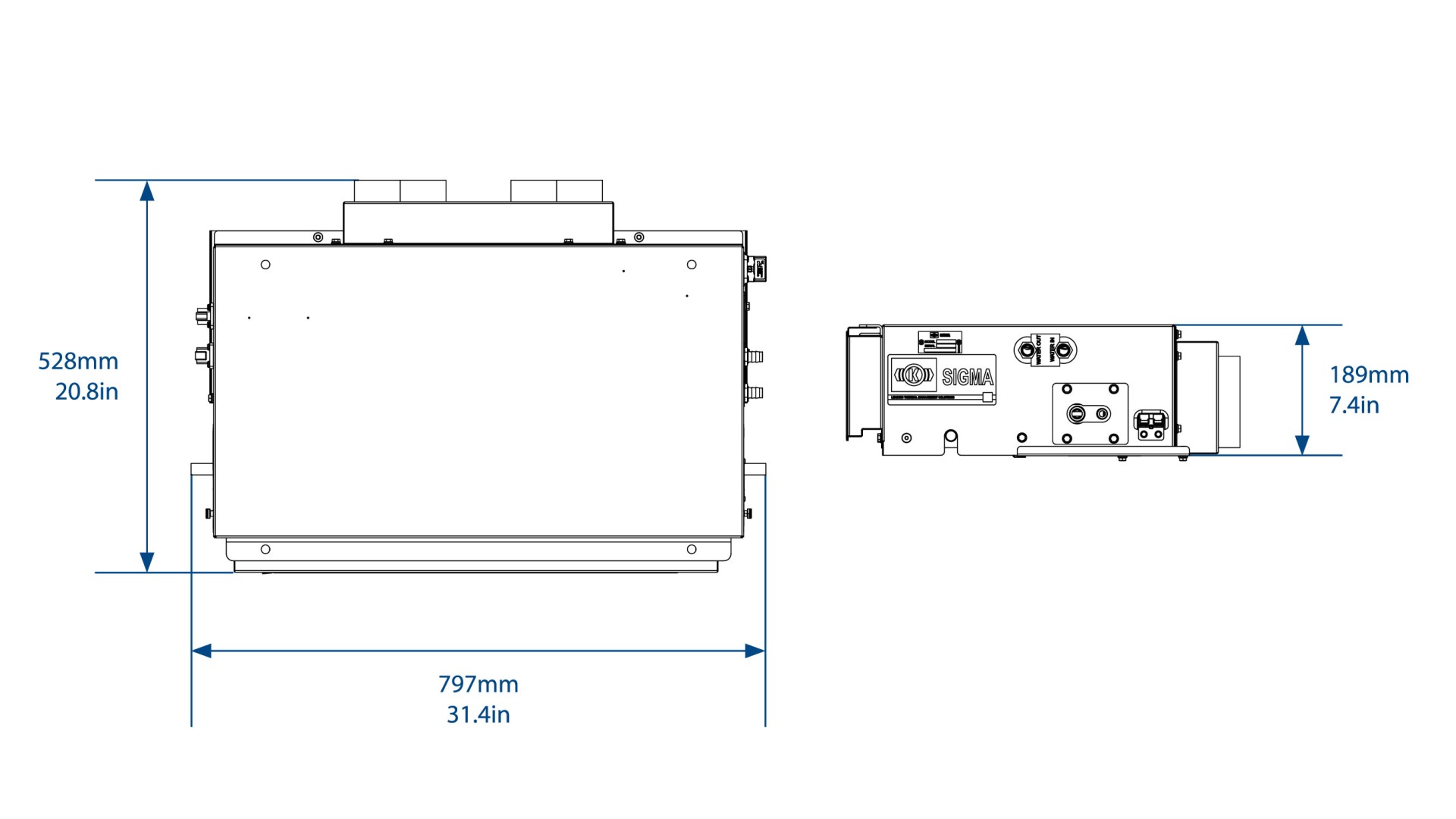

| Dimension L X W X H | 735mm X 528mm X 190mm | 28.9in X 20.8in X 7.5in |

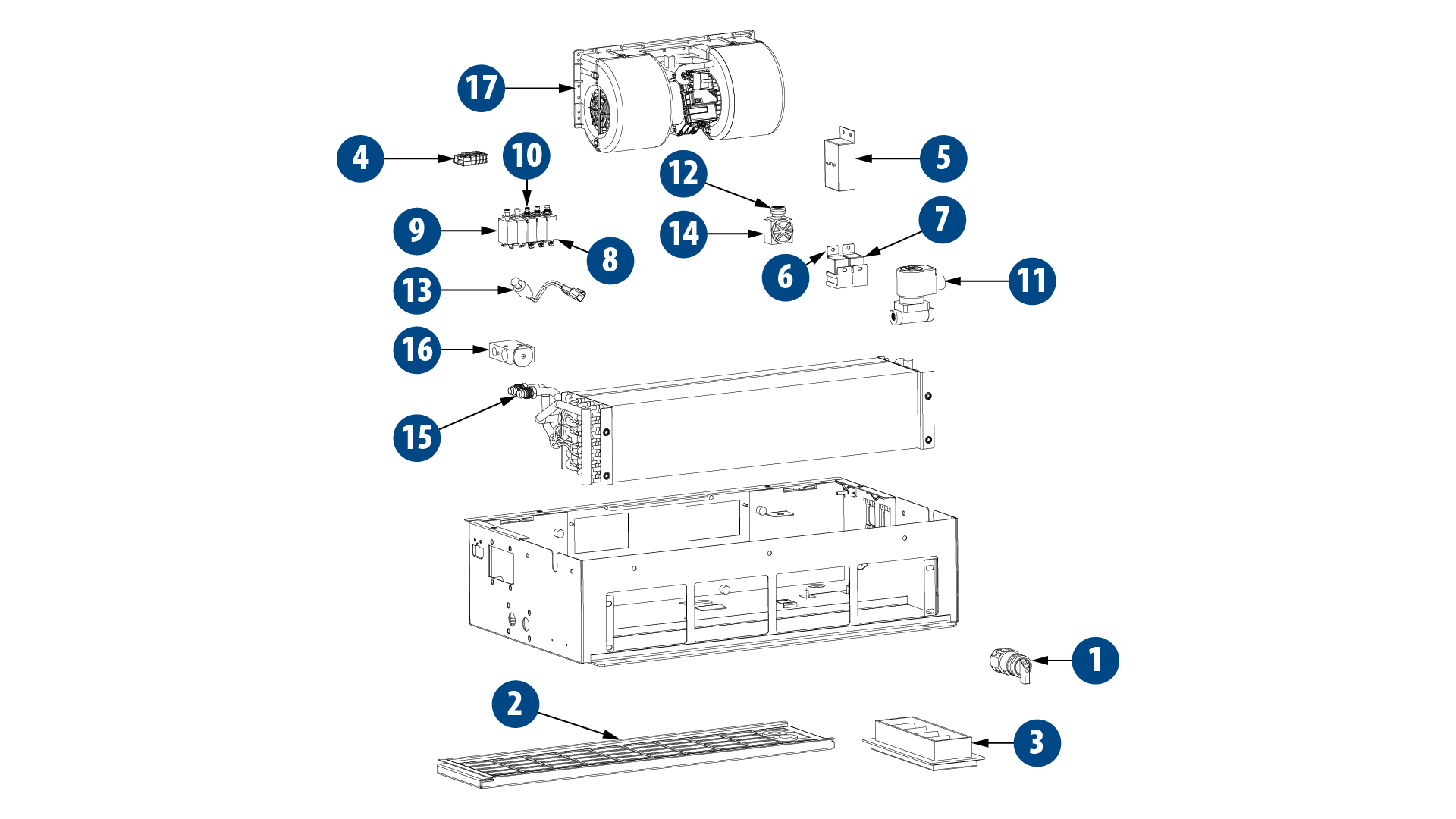

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU663562 | ROTARY SWITCH | 1 |
| 2 | AS502003 | RETURN AIR FILTER | 1 |
| 3 | UC901 | DIFFUSER 246MM X 104MM | 1 |
| 4 | AU631547 | CONNECTOR 2 WAY 50A HEAVY DUTY | 1 |
| 5 | AU681925 | THERMOSTAT 12-24 VDC WITH SENSOR + POT | 1 |
| 6 | AU661483 | RELAY 20A 24VDC 5 PIN | 2 |
| 7 | ERR023 | RELAY BASE 5 PIN (PANEL MOUNT) | 2 |
| 8 | AU641C107 | CIRCUIT BREAKER 10A PUSH PULL | 2 |
| 9 | AU641C110 | CIRCUIT BREAKER 15A PUSH PULL | 1 |
| 10 | AU641065 | CIRCUIT BREAKER 25A PUSH PULL | 2 |
| 11 | H0112397 | SOLENOID VALVE 24VDC 1/2” BSP WATER | 1 |
| 12 | UC022 | KNOB SNOWFLAKE 6.35MM | 1 |
| 13 | H0152017 | LP SWITCH ASSEMBLY | 1 |
| 14 | UE016 | THERMOSTAT DEICE STUD | 1 |
| 15 | H0094351 | EVAPORATOR + HEATER COIL 600MM X 133MM | 1 |
| 16 | AU521946 | TX VALVE BLOCK 2T 3/8” IN 1/2” OUT R134A | 1 |
| 17 | H0088451 | BLOWER ASSEMBLY - 24VDC 3 SPEED | 1 |

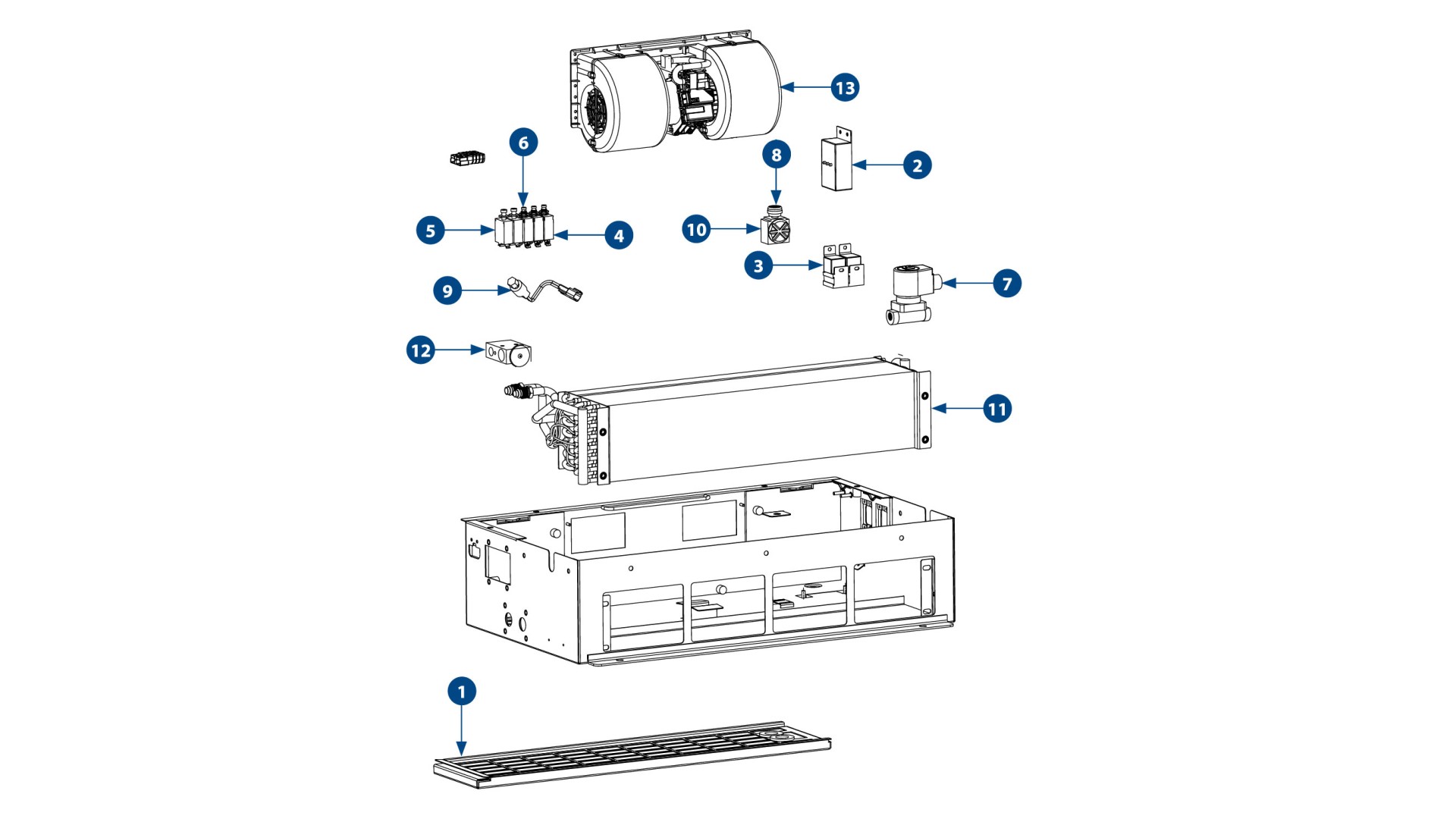

MAINTENANCE
AS502003
RETURN AIR FILTER
H0088451
BLOWER ASSEMBLY - 24VDC 3 SPEED
AU681925
THERMOSTAT 12-24 VDC WITH SENSOR + POT
AU661483
RELAY 20A 24VDC 5 PIN
H0112397
SOLENOID VALVE 24VDC 1/2” BSP WATER
UE016
THERMOSTAT DEICE STUD
AU521946
TX VALVE BLOCK 2T 3/8” IN 1/2” OUT R134A
H0152017
LP SWITCH ASSEMBLY
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| TCF7BX2 | Rooftop Wall mount Condenser 6kW 24V |
| EB9P4X | Pressuriser |
| H0123925 | Evaporator to Switch Loom |
| H0124104 | Switch Panel Remote Assembly |
