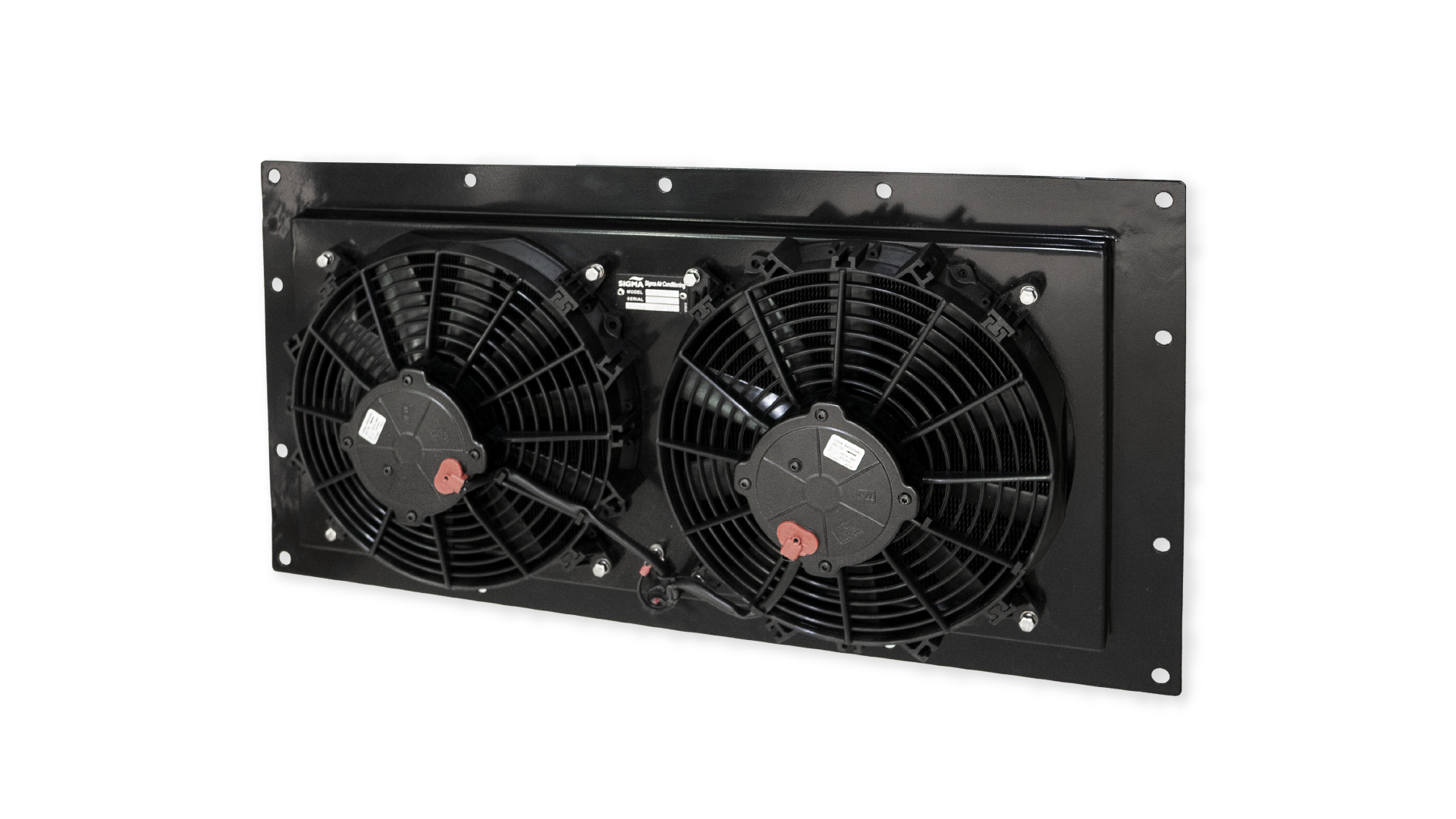

TCW5 - Wall Mounted Condenser
TCW5BX1: Captive 'O’Ring
TCW5BX2: Standard 'O’Ring
The new TCW5BX1 is a 24 VDC wall mounted condenser unit with 4kW of heat rejection & 500 l/s (1059 CFM) of air flow. Compact and light weight unit specially designed for excavator.
VEHICLES
- EXCAVATOR
SIGMA Knorr-Bremse Australia
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 4.0 kW | 13,648 BTU |
| Fan Speeds | 1 | 1 |
| Air Flow | 500 l/s | 1,059 CFM |
| Power Supply | 24 VDC | 24 VDC |
| Current Draw | 8 A | 8 A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 54°C | 129°F |
| Weight (nominal) | 19.0 Kg | 41.9 lbs |

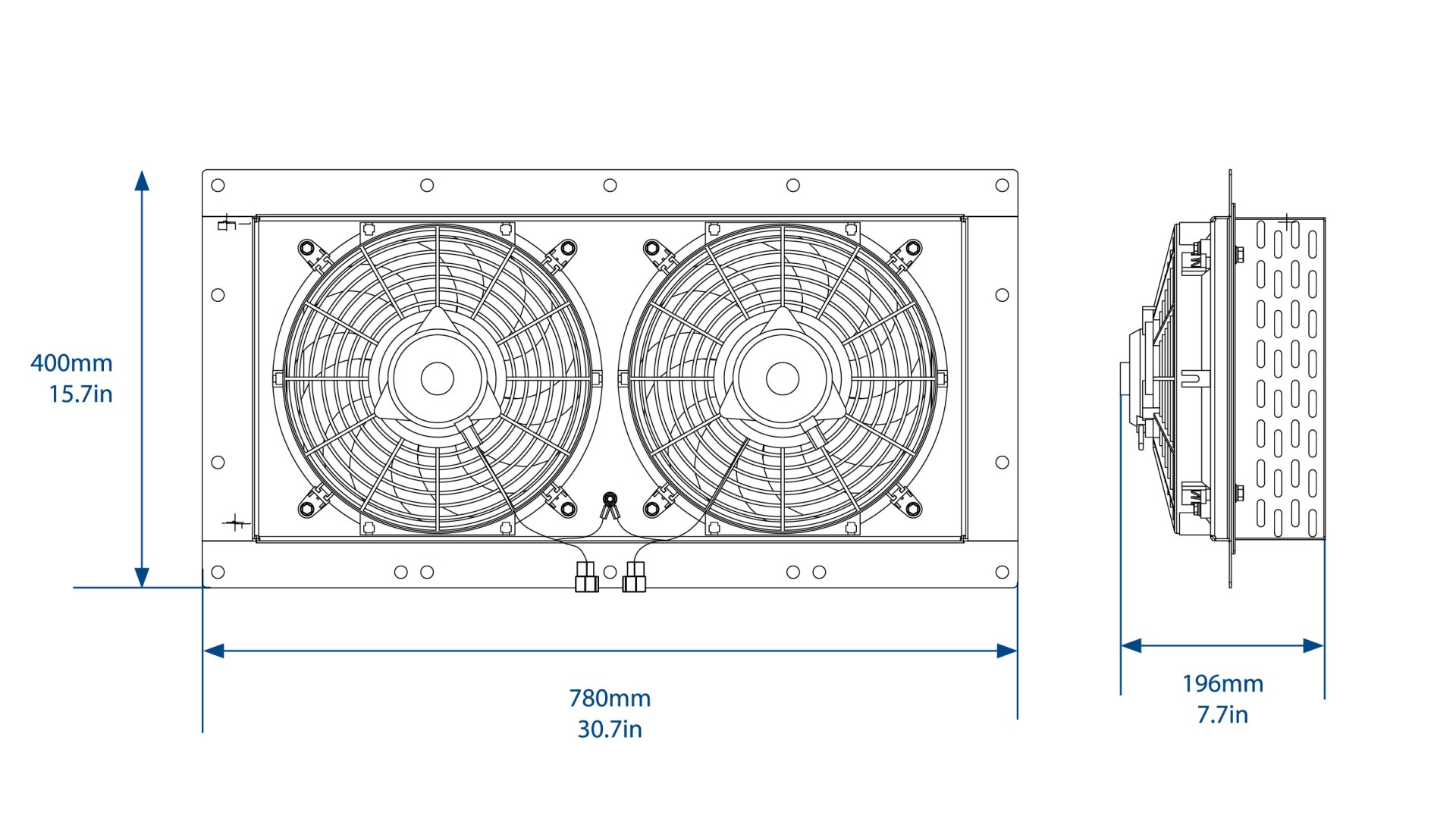

| Dimension L X W X H | 780mm X 400mm X 196mm | 30.7in X 15.7in X 7.7in |
SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | H0039196 H0095147 | CONDENSER COIL 600MM X 305MM X 66MM 4RW (TCW5BX1) CONDENSER COIL 600MM X 305MM X 66MM 4RW (TCW5B2) | 1 1 |
| 2 | H0051777 | FAN AXIAL ASSEMBLY 280MM 24VDC | 2 |
MAINTENANCE
ANNUAL (4,800 HOURS)
H0051777
FAN AXIAL ASSEMBLY 280MM 24VDC
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| TFF5BX1 | 5kW Evaporator Floor Mounted 12V |
| TFF5BX2 | 5kW Evaporator Floor Mounted 24V |
| EB9P4X | Pressuriser |
| HDC150 | Hydraulic Compressor |
| AU2961001 | Electric Compressor |
| AU270312 | Engine Driven Compressor |
| AU270311 | Engine Driven Compressor |
| H0081855 | Receiver Drier |
| AU531422 | Receiver Drier |
| KNHV90043 | Fitting Kit |
| KNHV90044 | Installation Kits |
