TCF8 - Floor Mounted Condenser
H0235424

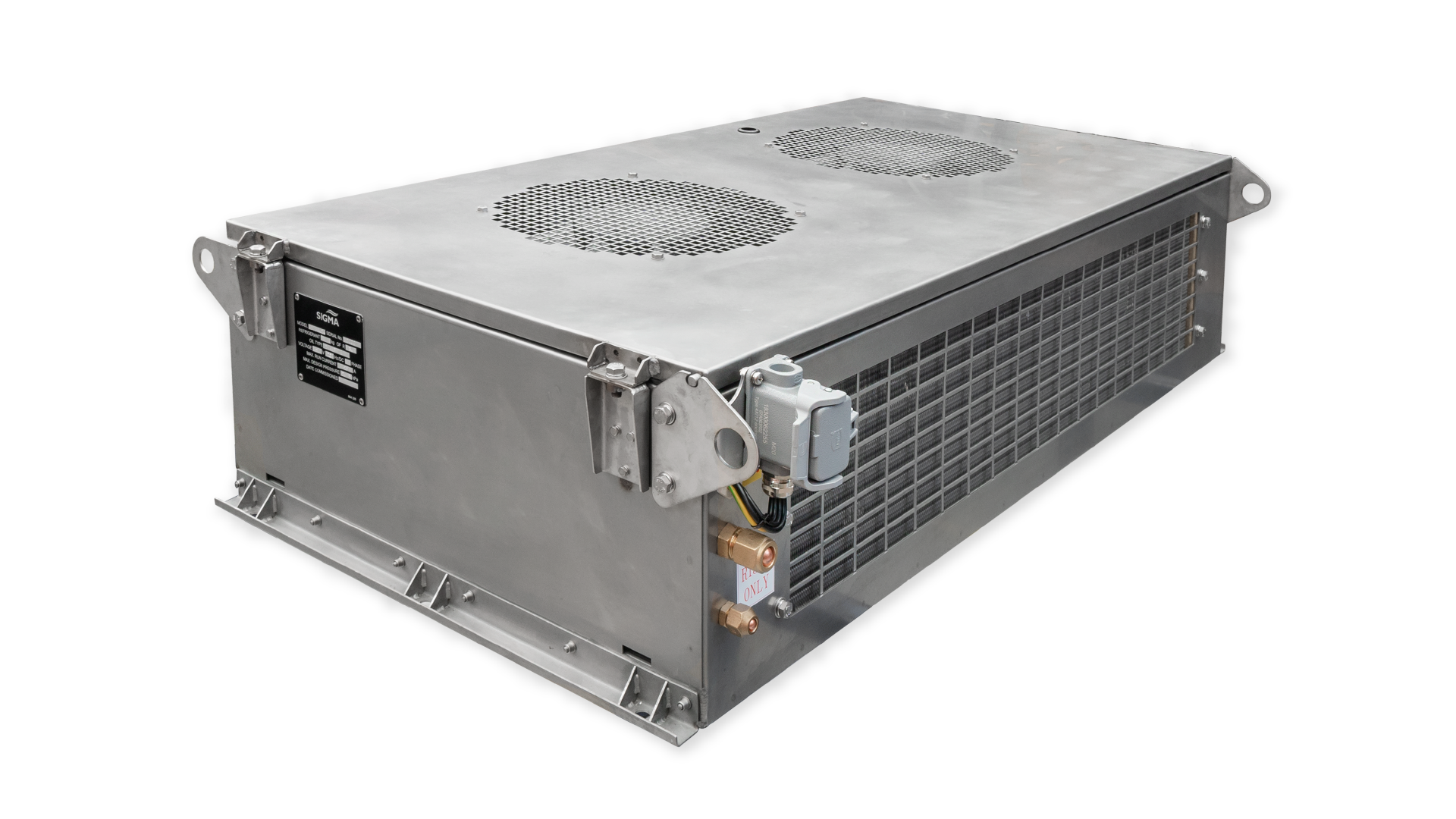

Our TCF8BX6 Rooftop Condenser 8kW 24V with removable Lid. Built for non-static applications encountering high vibration and shock loads. Designed with the highest quality components for maximum life and reliability.
VEHICLES
- DRILL
- EXCAVATOR
SIGMA Knorr-Bremse Australia
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 8.0 kW | 27,296 BTU |
| Fan Speeds | 1 | 1 |
| Air Flow | 980 l/s | 2,077 CFM |
| Power Supply | 24 V | 24 V |
| Current Draw | 30 A | 30 A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 54°C | 129°F |
| Weight (nominal) | 50.0 Kg | 110.0 lbs |
| Dimension L X W X H | 1236mm X 600mm X 294 mm | 48.7in X 23.6in X 11.6in |
SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU531138 | DRIER 3/8" MF | 1 |
| 2 | AU531411 | RECEIVER DRIER 3/8" 24UNF 165MM HIGH | 1 |
| 3 | H0192021 | AXIAL BRUSHLESS FAN 24VDC DIA 305MM | 1 |
| 4 | AU110009 | CONDENSER COIL 946X203X132MM 6RW | 1 |
| 5 | H0184113 | WIRING HARNESS ASSEMBLY | 1 |
| 6 | AU523655 | HIGH PRESSURE SWITCH 1/4” FF 2415KPA | 1 |
| 7 | AS327820 | BULKHEAD TO VALVE LINE ASSEMBLY | 1 |
| 8 | AS327818 | LIQUID LINE - VALVE TO FILTER ASSMBLY | 1 |
| 9 | AS327821 | DISCHARGE LINE ASSEMBLY | 1 |
| 10 | AS327817 | LIQUID LINE - COIL TO VALVE ASSEMBLY | 1 |
| 11 | AS327819 | VALVE TO FILTER TUBE ASSEMBLY | 1 |
| 12 | AS327825 | LIQUID LINE - FILTER TO VALVE ASSEMBLY | 1 |
| 13 | HO234526 | BULKHEAD HOUSING, SIDE ENTRY | 1 |
MAINTENANCE
AU531138
DRIER 3/8" MF
AU531411
RECEIVER DRIER 3/8” 24UNF165MM HIGH
AU523655
HIGH PRESSURE SWITCH 1/4” FF 2415kPa
H0193262
Brushless Fan Assembly Kit
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| TFC8BX1 | 8kW Evaporator Unit 24VDC |
| TFC8BX2 | 8kW Evaporator Unit 24VDC C/W 415 Heating |
| EB9P4X | Pressuriser |
| H0017489 | Hydraulic Compressor |
| H0017493 | Hydraulic Compressor |
| AU260203 | Compressor 3Ph 60Hz |
