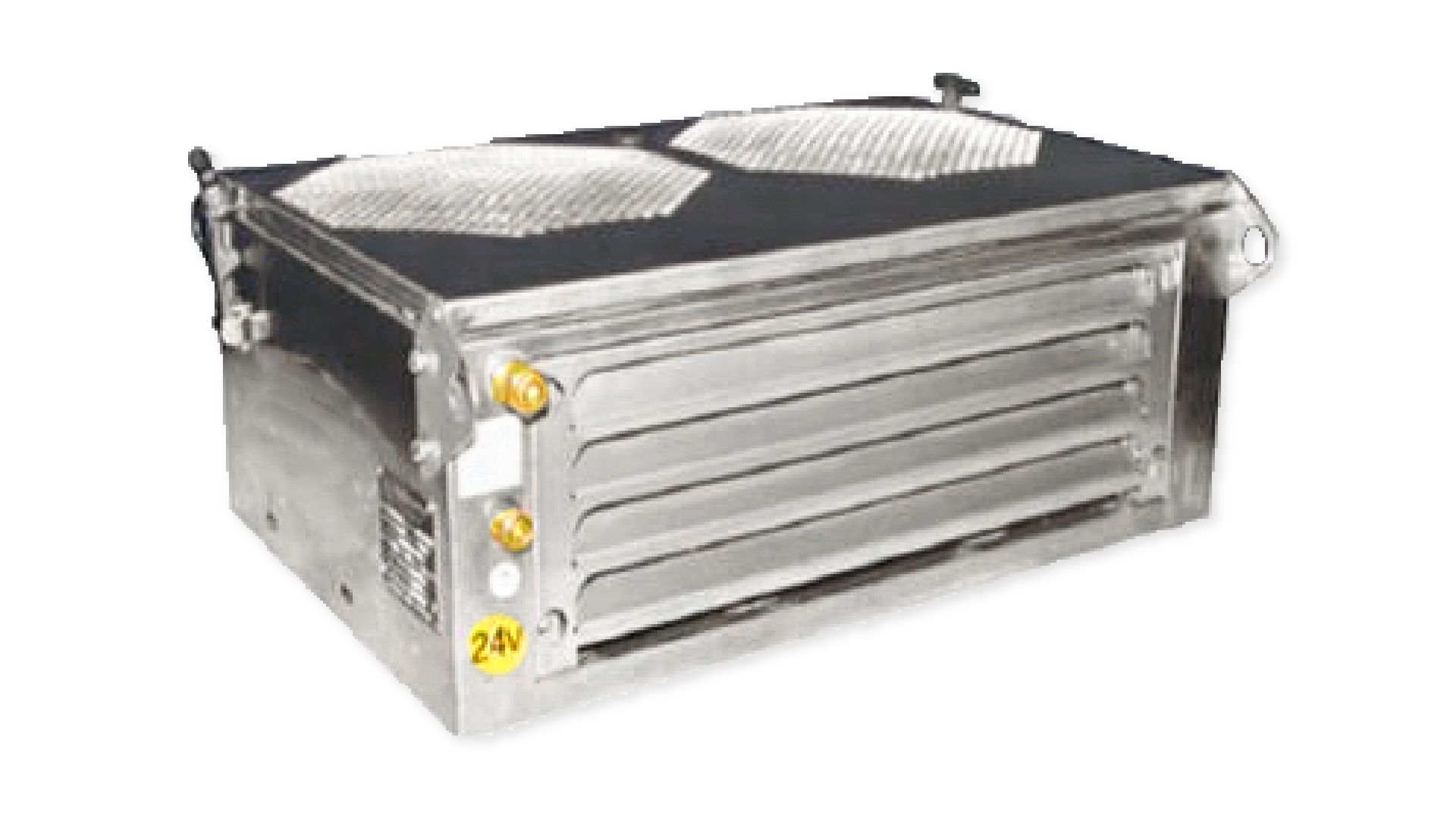

TCF7 - Rooftop Condenser

TCF7BX2

Our TCF7BX2 Rooftop Condenser 7kW 24V with O-Ring Fittings. Built for non-static applications encountering high vibration and shock loads. Designed with the highest quality components for maximum life and reliability.

VEHICLES

  • DRILL
  • DOZER
  • WHEEL LOADER
SIGMA Knorr-Bremse Australia

23 - 29 Factory Street
Granville NSW 2142
Australia
Phone: 1300 643 643
mid.aus@sigma-hvac.com

SPECIFICATIONS

  METRIC IMPERIAL
Cooling Capacity 7.0 kW 23,884 BTU
Fan Speeds 1 1
Air Flow 650 l/s 1,377 CFM
Power Supply 24 V 24 V
Current Draw 20 A 20 A
Refrigerant R134a R134a
Maximum Ambient Temperature 54°C 129°F
Weight (nominal) 35.0 Kg 77.0 lbs

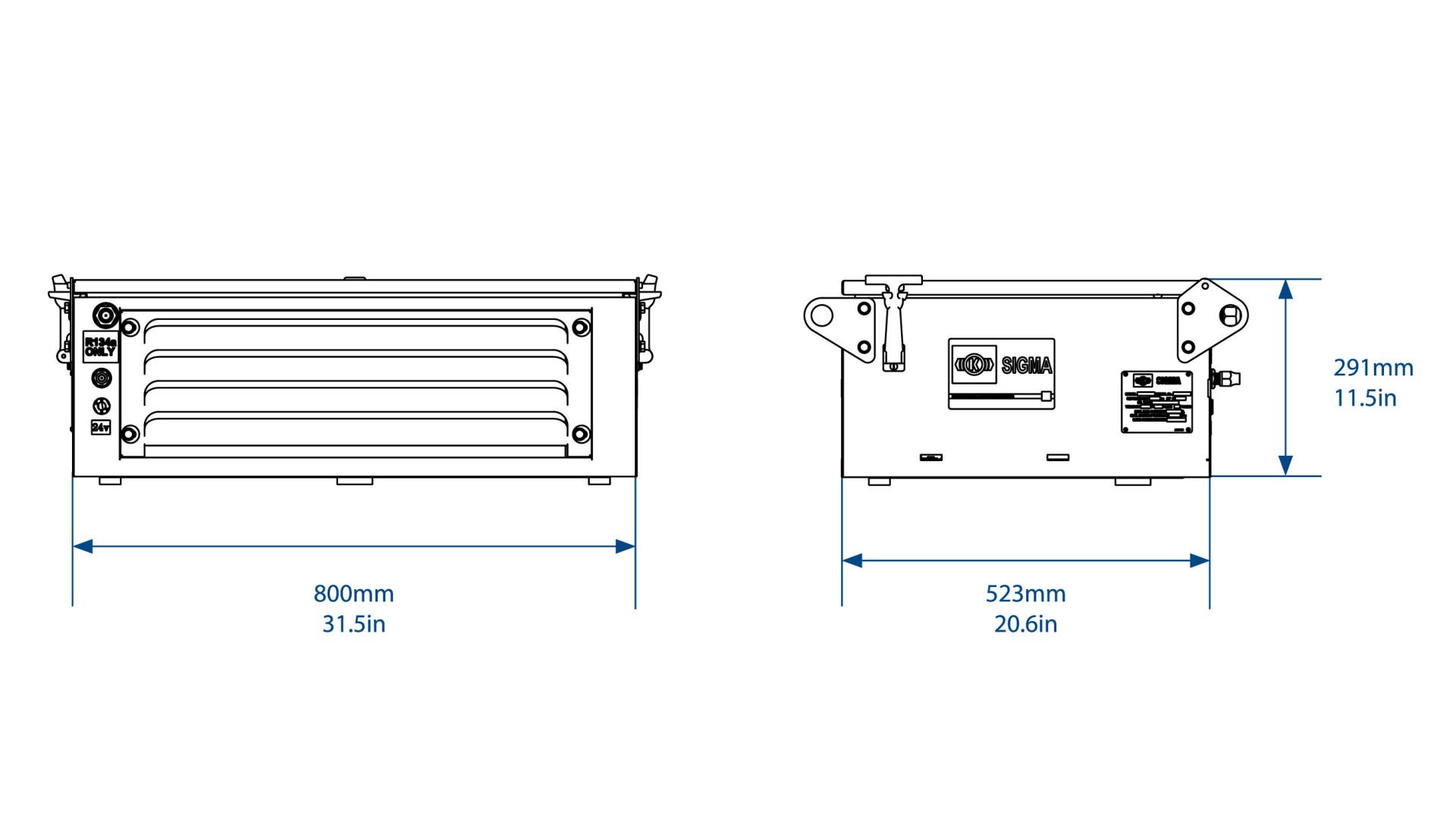

Dimension L X W X H 523mm X 856mm X 311mm 20.6in X 33.7in X 12.2in

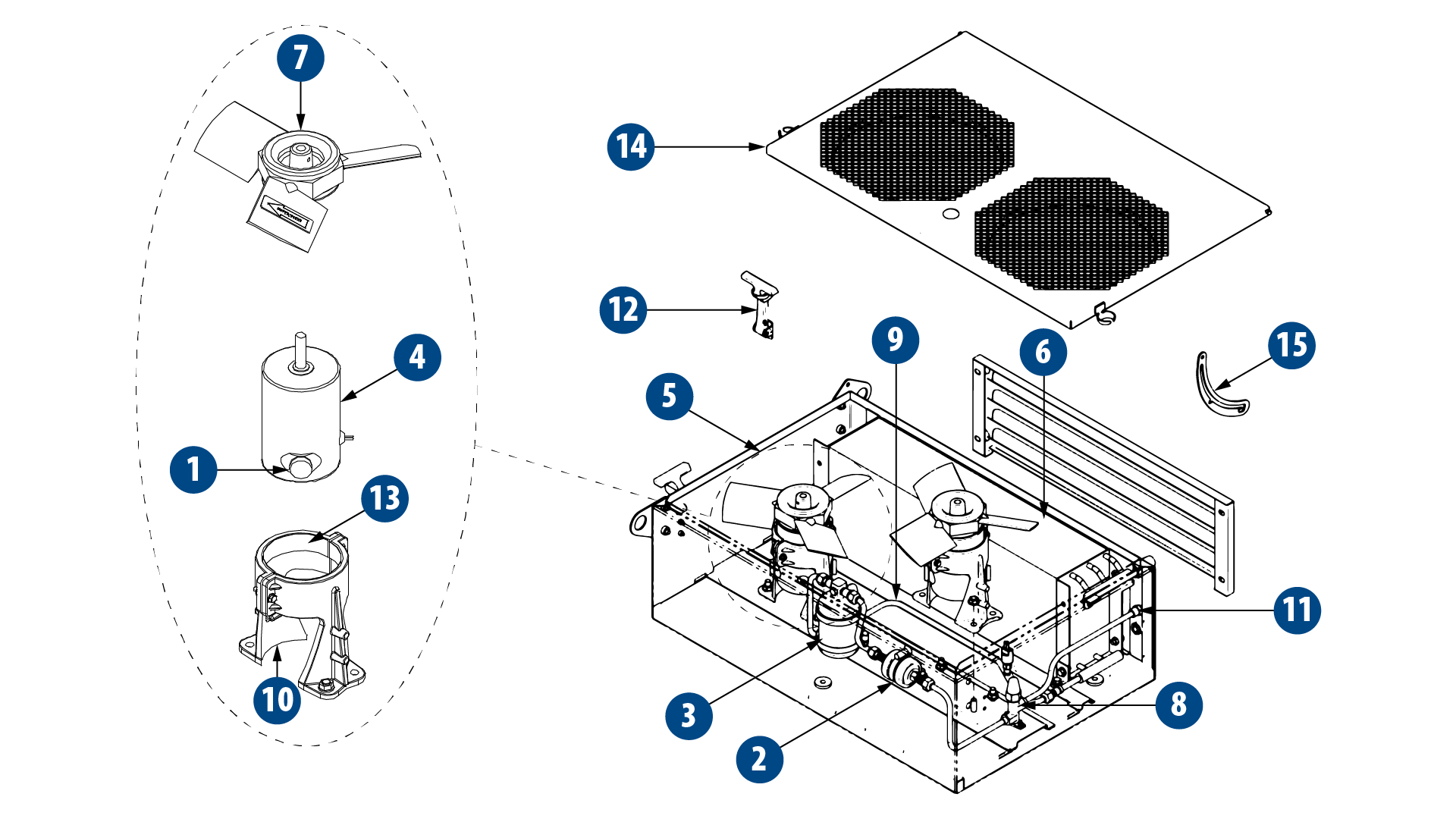

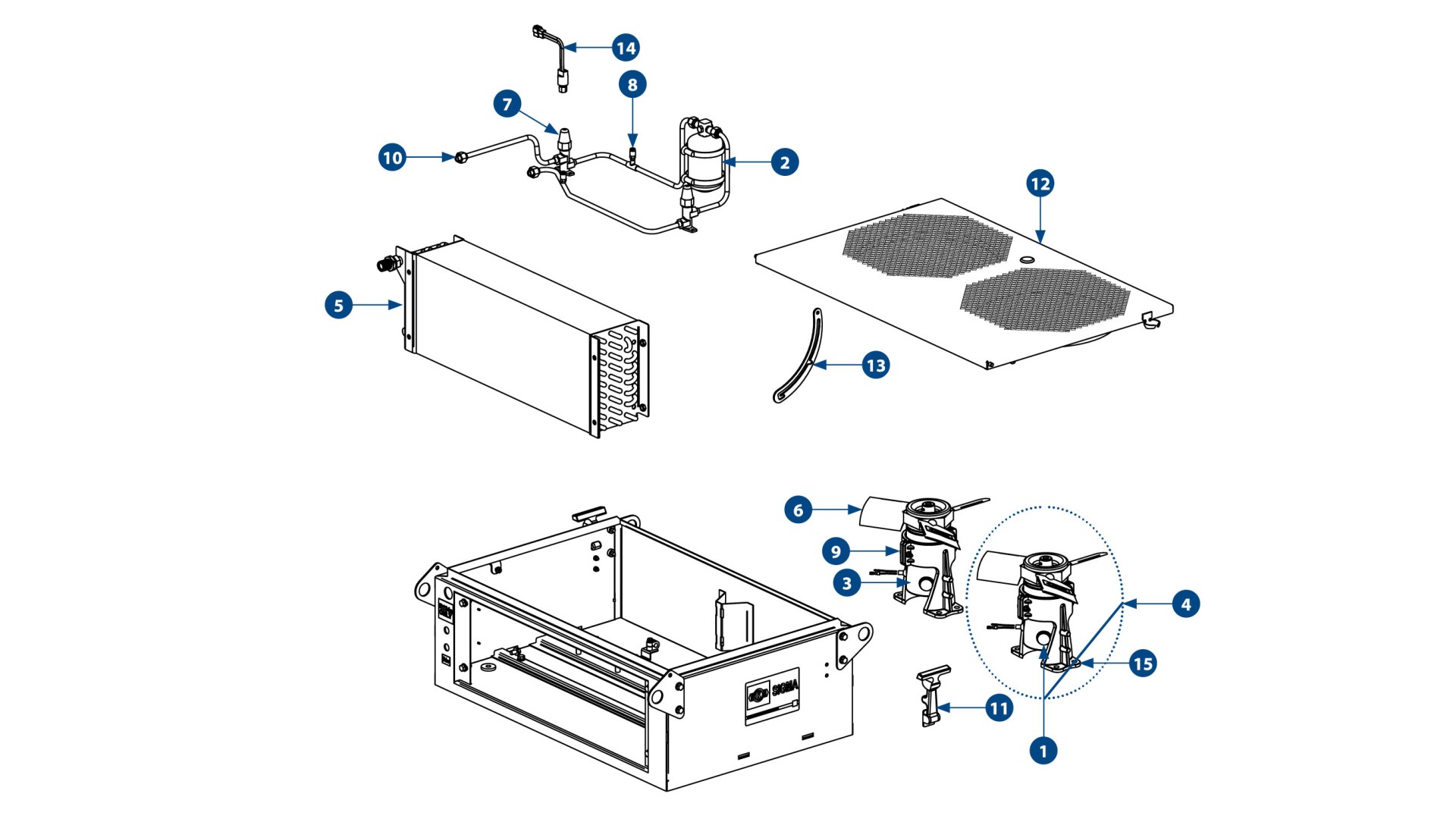

SPARE PARTS LIST

Sl.No. PART NO. DESCRIPTION QTY
1 AU320621 BRUSH MOTOR 24VDC EACH 4
2 AU531357 DRIER 3/8" MF 1
3 AU531411 RECEIVER DRIER 3/8" 24UNF 165MM HIGH 1
4 UE026 MOTOR 0.14kW 24VDC S/S 2
5 AS5000170 CONDENSER FAN ASSEMBLY 24V 2
6 AU110029 CONDENSER COIL 600MM X 229MM X 132MM 6R 1
7 AU420229 FAN AXIAL 300MM 3 BLADES LB 2
8 AU517254 PCAV 3/8" SOLDER 2
9 AU517505 VALVE ACCESS 1/4" 1/8" OD SOLDER 1
10 UC028 CONDENSER MOTOR MOUNT 4
11 AU512C065 BULKHEAD FITTING O-RING 3/8” 1
12 AU851590 TOGGLE CLAMP RUBBER 2
13 AU935432 FLAT NEOPRENE EXTRUSION 2
14 AS5000125 CONDENSER LID W/ASSEMBLY 1
15 S5000149 LID PROP 1
  AU523655 HIGH PRESSURE SWITCH 1/4” FF 2415kPa 1
  AS515203 LIQUID LINE VALVE TO DRIER 3
  AS515204 LIQUID LINE DRIER TO RECEIVER 3
  AS515205 LIQUID LINE RECEIVER TO VALVE 3

MAINTENANCE

AU531357
DRIER 3/8” MF

AU531411
RECEIVER DRIER 3/8” 24UNF165MM HIGH

UE026
MOTOR 0.14W 24VDC S/S

AU523655
HIGH PRESSURE SWITCH 1/4” FF 2415kPa

AU320621
BRUSH MOTOR 24VDC EACH

COMPANION ITEMS

PART NO. DESCRIPTION
TFR7BX2 Rooftop Evaporator (7kW)
EB9P4X Pressuriser
H0017479 Hydraulic Compressor
H0017481 Hydraulic Compressor
AU270307E Engine Driven Compressor
AU2790311E Engine Driven Compressor
AU270312E Engine Driven Compressor
