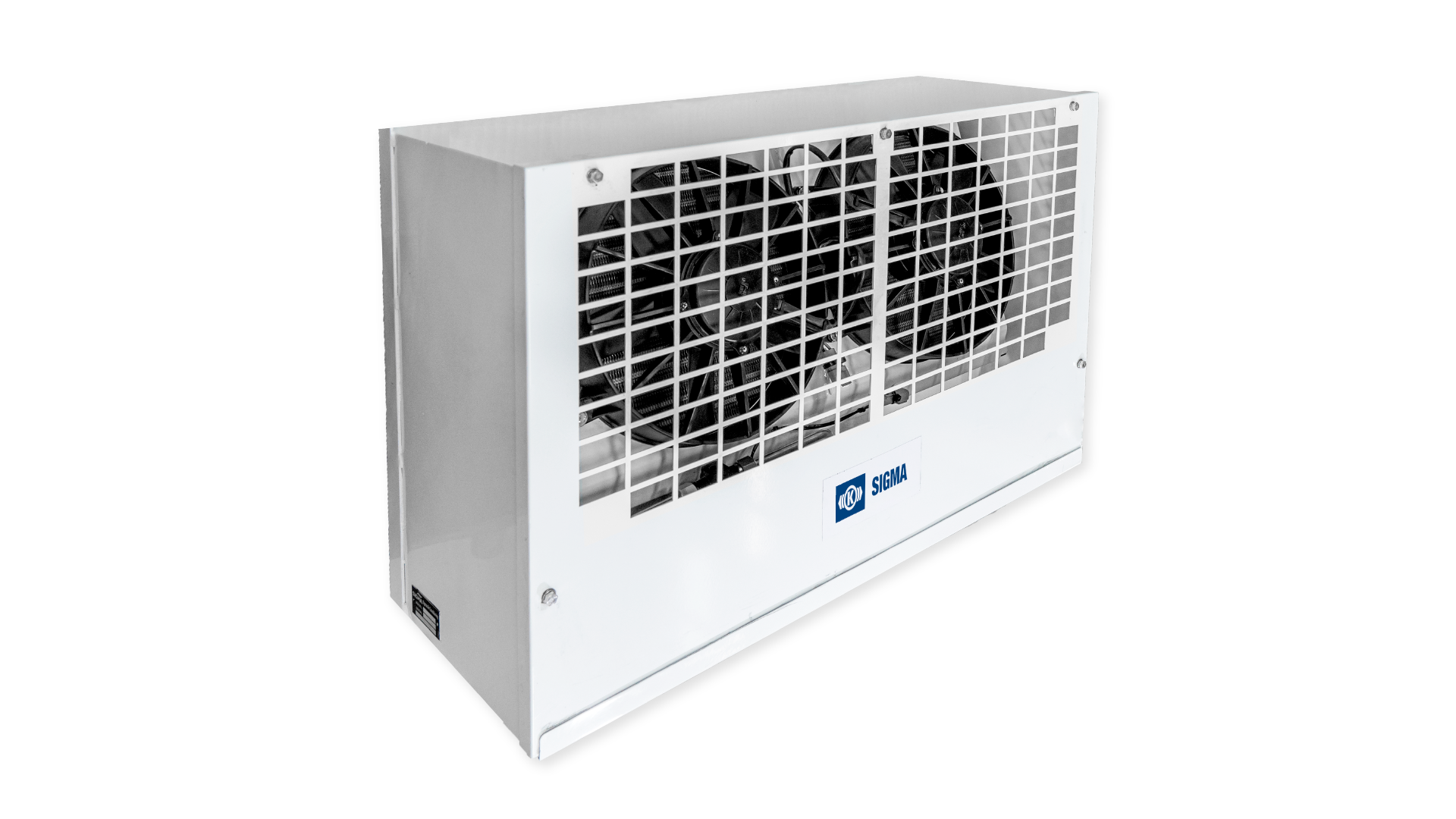

TCF6BX2 - Wall Mounted Condenser
H0095174
Our TCF6BX2 wall mounted condenser is rated at 6kW cooling capacity. Built for non-static applications encountering high vibration and shock loads. Designed with the highest quality components for maximum life and reliability.
VEHICLES
- DRILL
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 6.0 kW | 20,472 BTU |
| Fan Speeds | 1 | 1 |
| Power Supply | 24 V | 24 V |
| Current Draw | 11 A | 11 A |
| Refrigerant | R134a | R134a |
| Minimum Ambient Temperature | -10ºC | 14ºF |
| Maximum Ambient Temperature | 54°C | 129°F |
| Weight (nominal) | 35.0 Kg | 77.0 lbs |

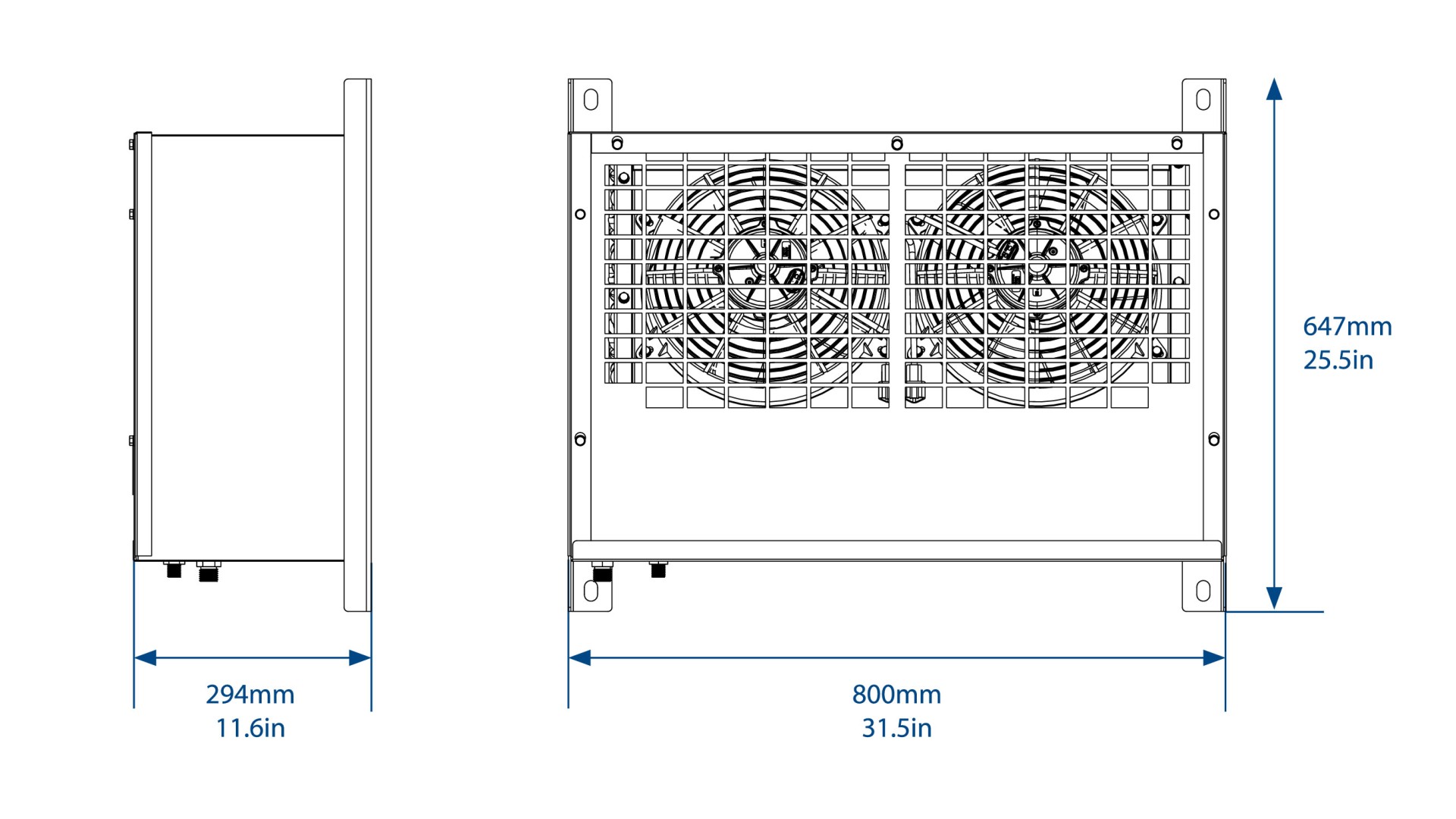

| Dimension L X W X H | 792mm X 515mm X 377mm | 31.2in X 20.3in X 14.8in |

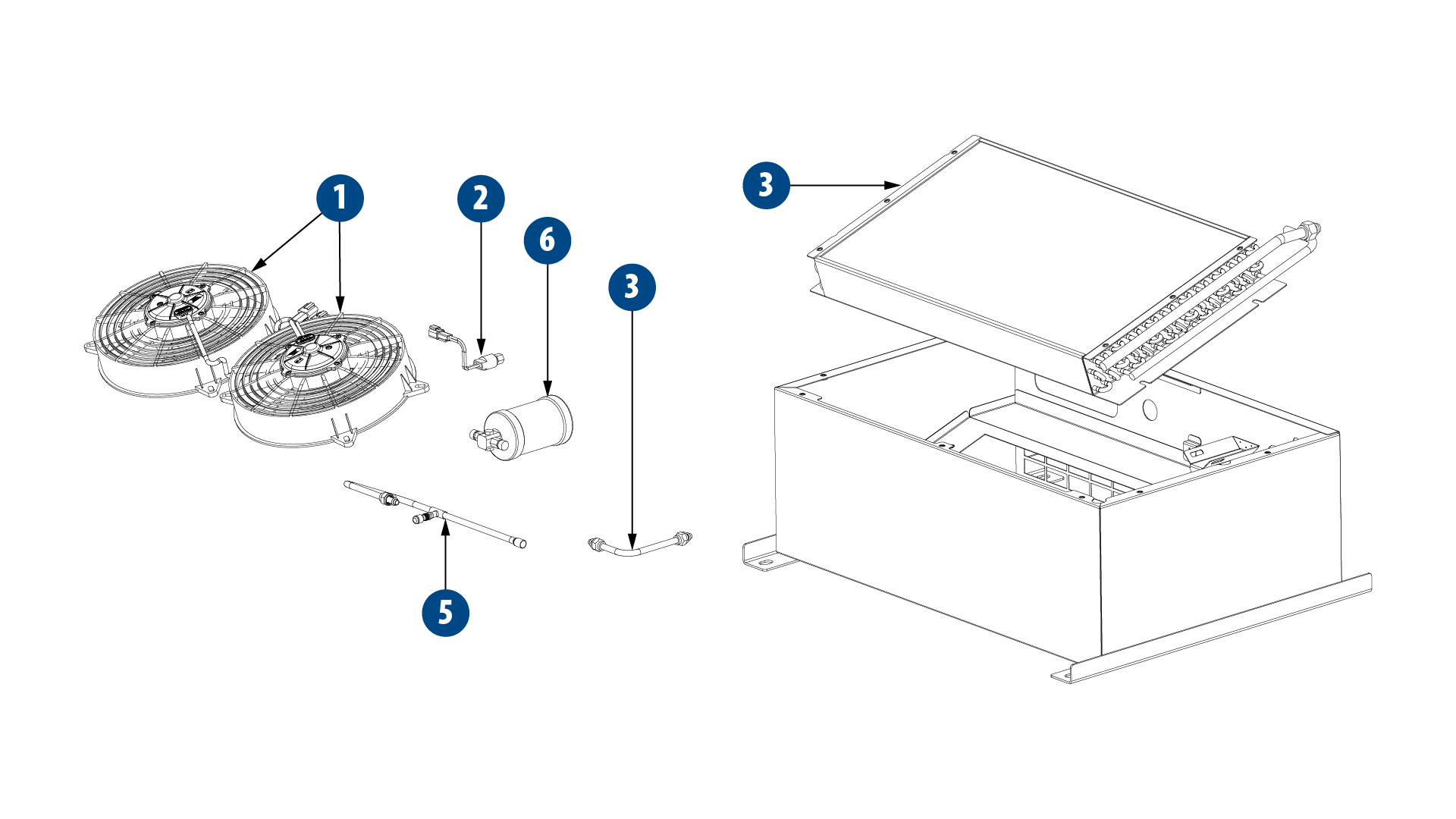

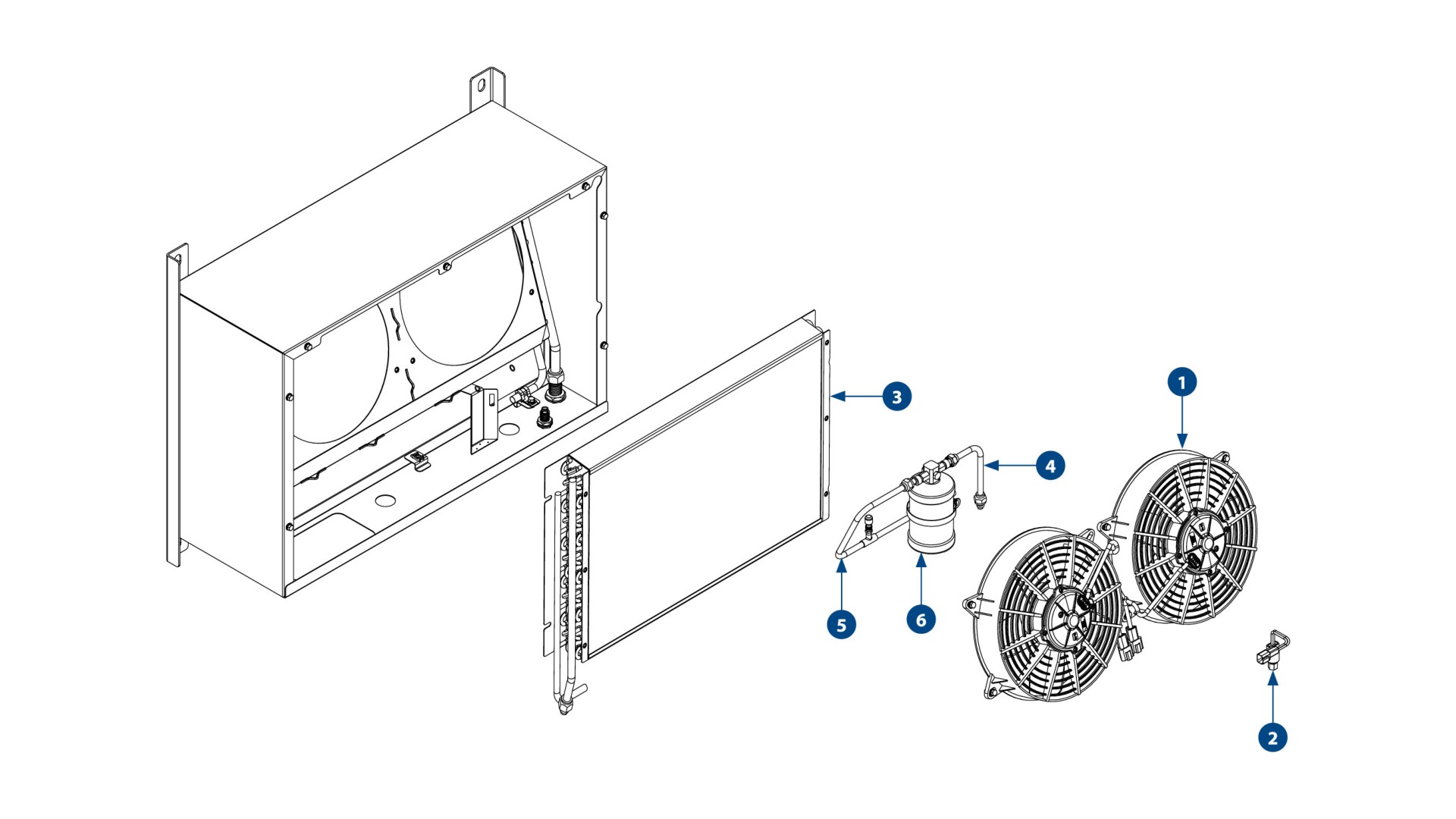

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | H0144118 | CONDENSER FAN ASSEMBLY | 2 |
| 2 | H0148597 | HIGH PRESSURE SWITCH ASSEMBLY | 1 |
| 3 | H0095176 | CONDENSER COIL 650MM X 381MM X 66MM 4R | 1 |
| 4 | H0095336 | LIQUID LINE ASSEMBLY - RECEIVER DRIER OUT | 1 |
| 5 | H0095339 | LIQUID LINE ASSEMBLY - RECEIVER DRIER IN | 1 |
| 6 | AU531422 | RECEIVER DRIER | 1 |
MAINTENANCE
AU531422
RECEIVER DRIER
H0144118
CONDENSER FAN ASSEMBLY
H0148597
HIGH PRESSURE SWITCH ASSEMBLY
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| TFC6BX2 | Rooftop Evaporator (6kW) |
| EB9P4X | Fresh Air Pressuriser |
| H0017481 | Hydraulic Compressor |
