PVV50M2

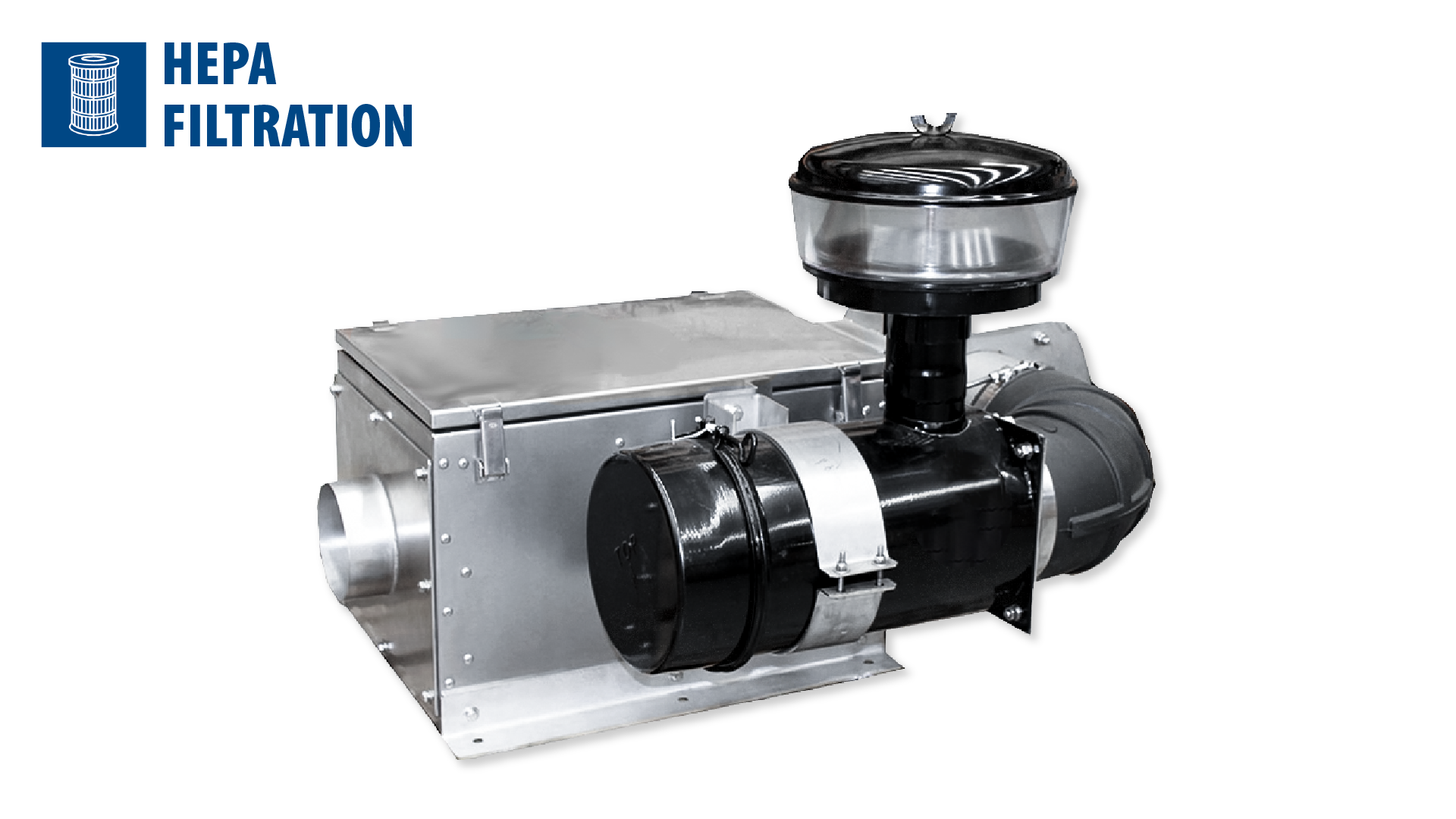

Fresh Air Multi Stage Filtration (HEPA) and Pressuriser
Robust and compact multi stage filtration and pressurisation solution designed to fit a wide range of vehicles for heavy duty application
The PVV50M2 system contains up to five (5) stages of filtration:-
- Stages 1-2: Filtration efficiently removes sub-micron particulate from outside air
- Stage 3: Customised filtration media (a combination of Active Alumina/Carbon Media or Carbon Impregnated Media) removes the specific gaseous or fibrous contaminant
- Stage 4: Fine dust particle filter filter
- Stage 5: HEPA filtration
Available in 415 VAC configuration with heavy duty industrial motor
VEHICLES
- DRAGLINE & SHOVEL
- OVERHEAD CRANE
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Fan Speeds | 1 | 1 |
| Fresh Air | 50 l/s | 106 CFM |
| Power Supply | 415 VAC | 415 VAC |
| Current Draw | 6A | 6A |
| Weight (nominal) | 60.0 Kg | 132.0 lbs |
| Dimension L X W X H | 695mm X 364mm X 520 mm | 27.4in X 14.3in X 20.5in |

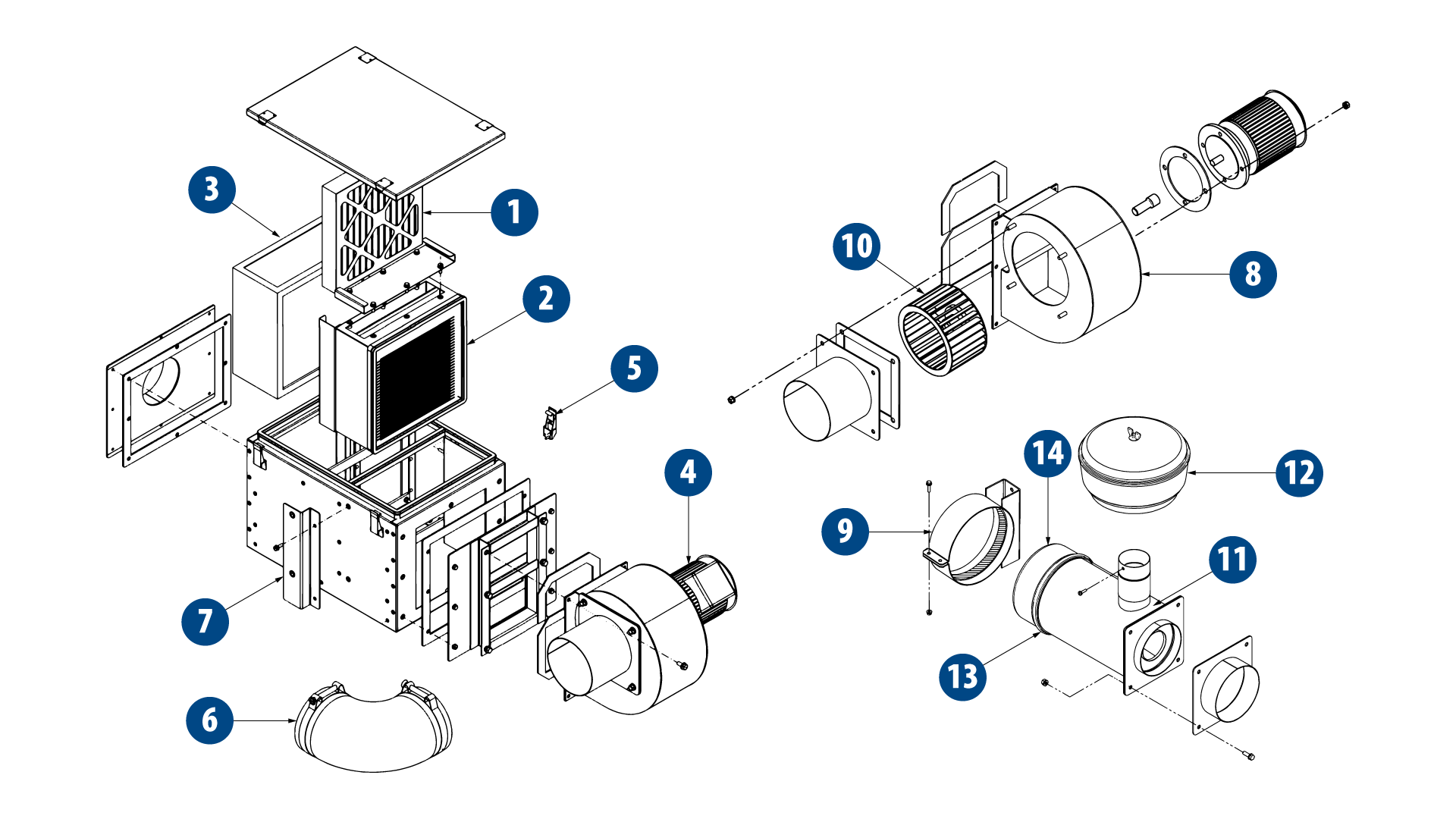

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU460628 | FILTER CARTRIDGE PLEAT 305MM X 305MM X 50MM | 1 |
| 2 | AS3505127 | FILTRATION MODULE ASSEMBLY | 1 |
| 3 | AU460863 | FILTER 305MM X 305MM X 149MM METAL CASE (HEPA FILTER) | 1 |
| 4 | AU304150 | MOTOR 0.55KW 415V 71 FL 2P | 1 |
| 5 | UC310 | CATCH TOGGLE OVERCENTRE SS | 4 |
| 6 | UC265 | ELBOW RUBBER 90DEG 6” | 1 |
| 7 | AS162611 | FILTER SUPPORT CLAMP ASSEMBLY | 1 |
| 8 | AU410520 | BLOWER 178D X 102W X 19MM CCW SINGLE INLET | 1 |
| 9 | AU460081 | FILTER CARTRIDGE ENDURANCE FVV100 (OPT) | 1 |
| 10 | AU460729 | FILTER PRE-CLEANER 270MM | 1 |
| 11 | AU460765 | CLAMP ASSEMBLY | 1 |
| 12 | AU460762 AU460768 | RUBBER BAFFLE END CAP | 1 1 |
| 13 | AU862211 | SEAL RUBBER | 2 |
| 14 | AU872011 | SHAFT EXTENSION 14MM F X 19MM M | 1 |
| 15 | R1626026 | GASKET FVV100 INLET 200MM X 200MM 140MM DIAMETER | 1 |
| 16 | UC266 | CLAMP SUIT UC265 | 2 |
| 17 | AS5242124 | LID ASSEMBLY | 1 |
MAINTENANCE
AU460081
FILTER CARTRIDGE ENDURANCE
AU460628
FILTER CARTRIDGE PLEAT 305MM X 305MM X 50MM
AU460863
FILTER 305MM X 305MM X 149MM METAL CASE
AU460729
FILTER PRE-CLEANER 270MM
AU410520
BLOWER 178D X 102W X 19MM CCW SINGLE INLET
AU304150
MOTOR 0.55KW 415V 71 FL 2P
HEPA FILTRATION OPTION
| PARTICULARS | DESCRIPTION |
|---|---|
| PART NO. | AU460863 |
| HEPA GRADE | H13 / US HEPA / AS4260 (GRADE 2) |
| TEST STANDARD | EN 1822 or equivalent |
| FILTRATION EFFICIENCY | 99.95% for particles diameter 0.3 μm (on qualified cabins) |
| FILTER DIMENSION | 305mm x 305mm x 149mm |
WHY HEPA FILTER?
BREATHE EASIER WITH THE SIGMA HEPA FILTER
The Workplace Health & Safety (WHS) and Mine Safety & Health Administration (MSHA) solution for dust saturated atmospheres and harmful toxic working environments.
Ensuring cabin air is safe to breathe and free from airborne contaminates including pesticide, asbestos, silica dust, fine coal dust and diesel particulate matter. To ensure risk for the coal mine operators is at an acceptable level.
HEPA solutions for underground and surface mining applications
MEDIA OPTIONS
PART NO. DESCRIPTION APPLICATION AU480004 MEDIA ACT ALUMINA Targets oxidisable acidic gases responsible for corrosion AU480010 MEDIA ACT CARBON Targets VOC’s and other inorganic gases AU480011 MEDIA IMPREG CARBON Target alkaline, gases e.g. ammonia, amines etc. Consult SIGMA for correct media depending on gases to remove
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| AU682070 KIT500001 | AIR FLOW AND MONITORING SWITCH AIR FLOW SWITCH DUCT SUITS |
| H0552762 H0552763 H0552775 H0548482 | INTERNAL SENSOR, INCLUDING SOFTWARE EXTERNAL SENSOR, INCLUDING SOFTWARE DISPLAY WITH SOFTWARE, RS485-CAN WIRING HARNESS,AIR QUALITY, MAIN CAB |
