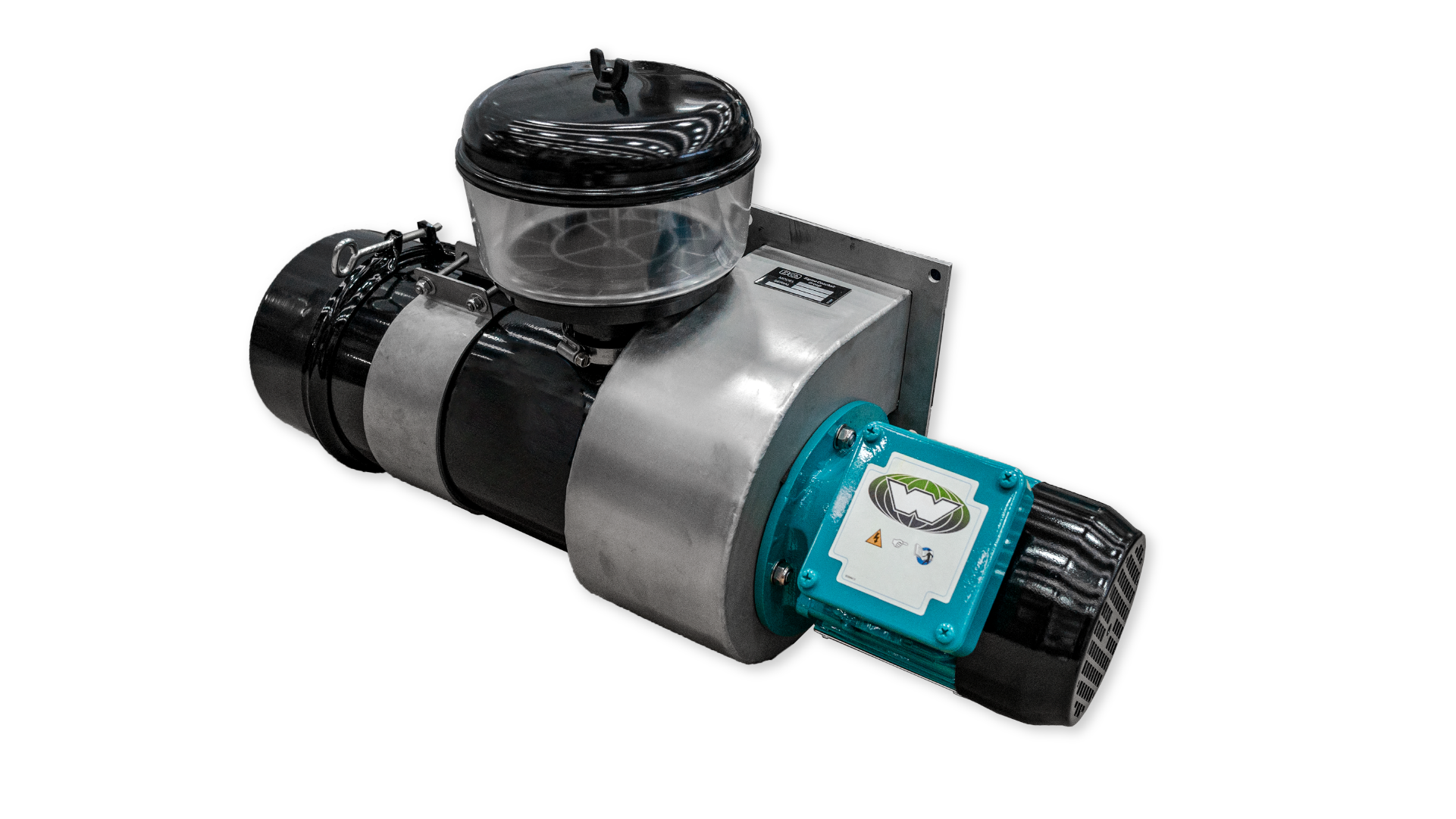

FVV50M1 - Fresh Air Pack MS Series AC
Robust and compact, this unit is a robust pressuriser solution specially designed to fit a wide range of vehicles such as dragline, shovel, industrial, smelter and rail special vehicles for heavy duty application
Available in 415 VAC configuration with heavy duty industrial motor
VEHICLES
- DRAGLINE & SHOVEL
- INDUSTRIAL
- SMELTERS
- RAIL SPECIAL VEHICLE
SIGMA Knorr-Bremse Australia
Granville NSW 2142
Australia
mid.aus@sigma-hvac.com
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Fan Speeds | 1 | 1 |
| Fresh Air | 50 l/s | 106 CFM |
| Power Supply | 415 VAC | 415 VAC |
| Weight (nominal) | 23.0 Kg | 50.7 lbs |
| Dimension L X W X H | 700mm X 210mm X 350 mm | 19.3in X 26.8in X 15.7in |

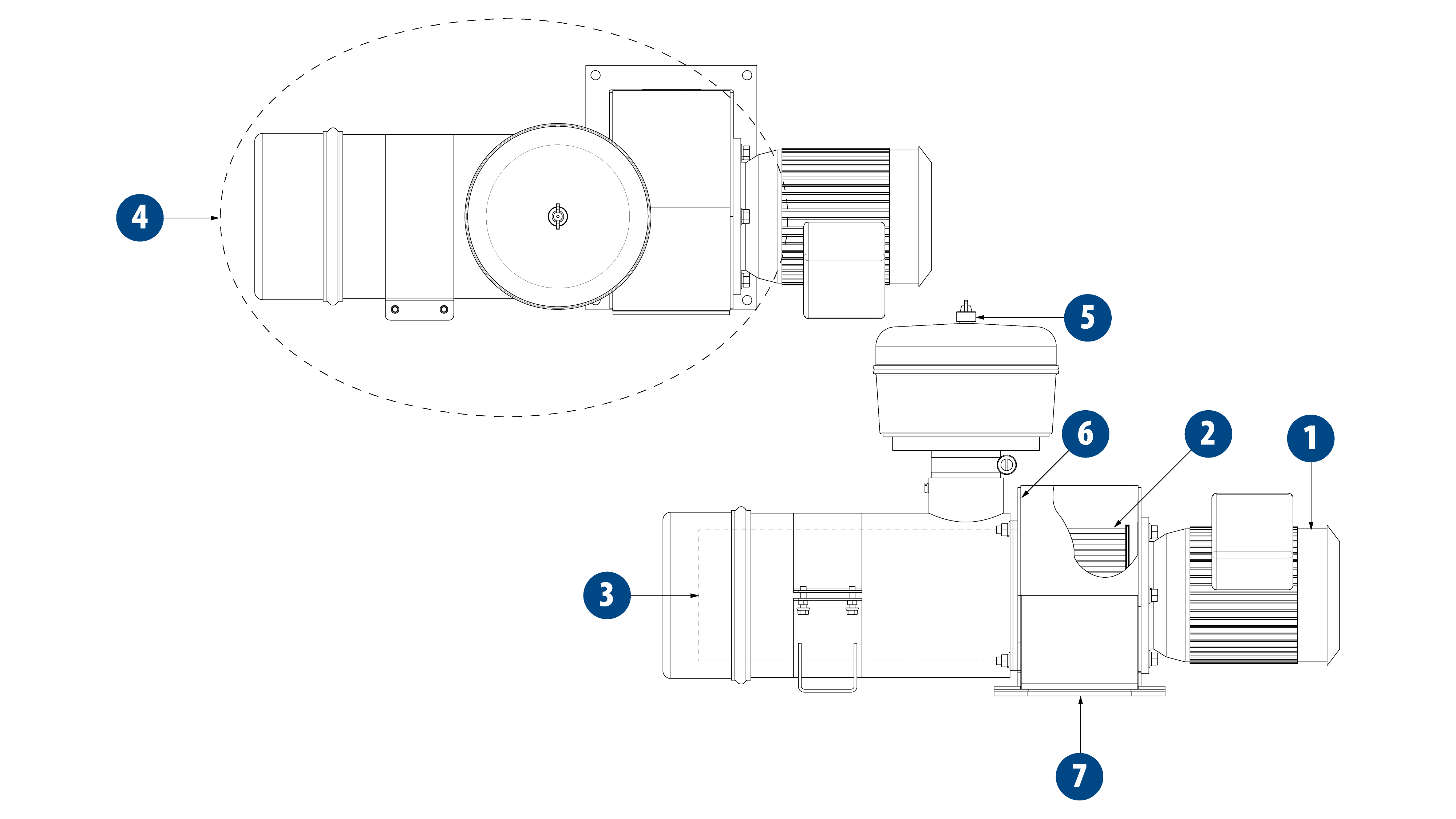

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU304150 | MOTOR 0.55KW 415V 71 FL 2P | 1 |
| 2 | AU410606 | BLOWER 120D X 89W X 14MM CW SINGLE INLET | 1 |
| 3 | AU460706 | FILTER CARTRIDGE 133MM - STANDARD | 1 |
| 4 | AU460720 | FILTER CYCLONE 6” METAL | 1 |
| 5 | AU460725 | FILTER PRE-CLEANER 186MM - STANDARD | 1 |
| 6 | F1626010 | GASKET FRESH AIR UNIT | 1 |
| 7 | F1626039 | GASKET FRESH AIR UNIT | 1 |
MAINTENANCE
AU460706
FILTER ASSEMBLY ROUND 133MM - STANDARD
AU460080
FILTER CARTRIDGE ENDURANCE FVV50B (FOR UPGRADTED UNIT)
AU320028
MOTOR BRUSH KIT - ASSEMBLY + HOLDER
AU320C007
MOTOR SINGLE SHAFT
AU460725
FILTER PRE-CLEANER 186MM - STANDARD
AU460964
PRE-CLEANER TS 2.5” INLET SMALL
AU410605
BLOWER 120D x 89W x 5/16 CLOCKWISE SINGLE INLET (FVV50B3)
AU410337
BLOWER 120D x 89W x 5/8 COUNTER CLOCKWISE SINGLE INLET (FVV50B4)
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| AU460964 | Pre-Cleaner 2.5” Inlet Small |
| AU460080 | Filter Cartridge Endurance |
