EB9P2X / EB9P4X

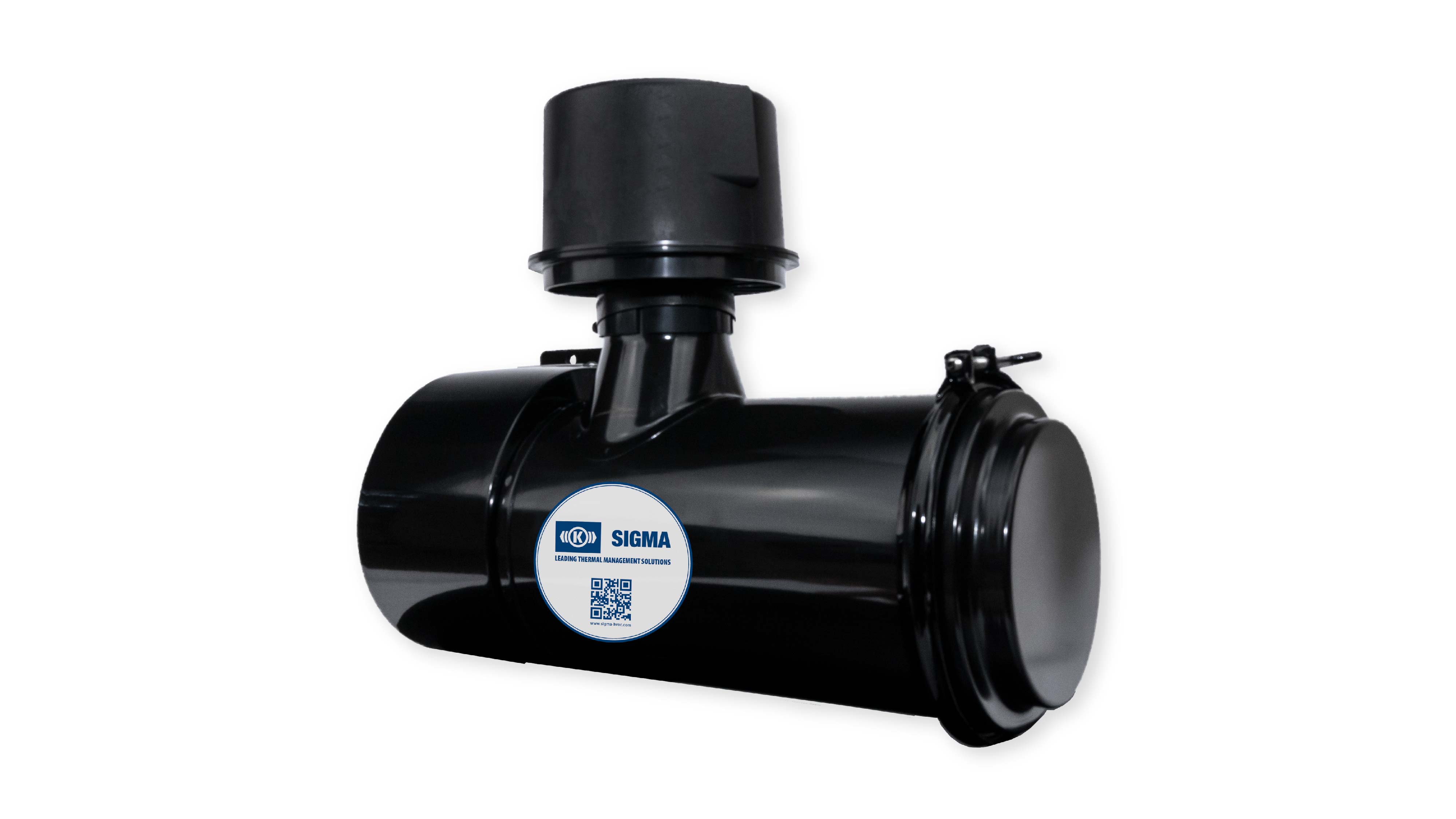

Sigma’s robust EB9P4X Cabin Fresh Air Pressuriser system delivers filtered fresh air for operator comfort and cabin pressurization. In addition the EB9PX pressuriser can be fitted with an optional air purifier cartridge to filter out harmful gaseous contaminants.
VEHICLES
- DRILL
- DOZER
- TRUCK
- WHEEL LOADER
- CONSTRUCTION
- UNDERGROUND EQUIPTMENT
SIGMA Knorr-Bremse Australia
Granville NSW 2142
Australia
mid.aus@sigma-hvac.com
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Fan Speeds | 1 | 1 |
| Fresh Air | 31 l/s | 65 CFM |
| Power Supply | 12V / 24V | 12V / 24V |
| Current Draw | 6A / 3A | 6A / 3A |
| Weight (nominal) | 8.0 Kg | 8.0 Kg |
| Technical Manual Reference | SM496-5065 | SM496-5065 |
| Dimension L X W X H | 462mm X 364mm X 192mm | 18.2in X 14.3in X 7.6in |
SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU460083 AU460082 | FILTER CARTRIDGE ENDURANCE (EB9P4X) FILTER CARTRIDGE ENDURANCE (EB9P4XL) | 1 1 |
| 2 | AU410337 | BLOWER 120D x 89W x 5/8 COUNTER CLOCKWISE SINGLE INLET | 1 |
| 3 | UE327 H0175266 | MOTOR 80W 12V FOR EB9P2X MOTOR 70W 24V ASSEMBLY FOR EB9P4X & EB9P4XL | 1 1 |
| 4 | AU460963 | PRE CLEANER TS 3” INLET SMALL | 1 |
| 5 | H0056158 | CLAMP ASSEMBLY 168MM INTERNAL DIAMETER | 1 |
| 6 | H0056157 | COVER ASSEMBLY | 1 |
| S3750100 | SEAL GASKET MOTOR | 1 | |
| S3750101 | SEAL CASKET CANISTER | 1 |
MAINTENANCE
AU460083
FILTER CARTRIDGE ENDURANCE (EB9P4X)
AU460082
FILTER CARTRIDGE ENDURANCE (EB9P4XL)
H0202671
H13 HEPA FILTER OPTION FOR EB9P2X & EB9P4X (FOR UPGRATED UNIT)
UE327
MOTOR 80W 12V FOR EB9P2X
H0175266
MOTOR 70W 24V ASSEMBLY FOR EB9P4X & EB9P4XL
UE335
ROTARY SWITCH 3 SPEED COMPLETE WITH NUT
AU410337
BLOWER 120D X 89W X 5/8 CCW SI
AU460963
PRE CLEANER TS 3” INLET SMALL
HEPA FILTRATION OPTION
| PARTICULARS | DESCRIPTION |
|---|---|
| PART NO. | H0202671(FOR EB9P2X & EB9P4X) |
| HEPA GRADE | H13 |
| TEST STANDARD | EN 1822 or equivalent |
| FILTRATION EFFICIENCY | 99.95% for particles diameter 0.3 μm (on qualified cabins) |
| FILTER DIMENSION | 138mm OD x 292 mm |
WHY HEPA FILTER?
BREATHE EASIER WITH THE SIGMA HEPA FILTER
The Workplace Health & Safety (WHS) and Mine Safety & Health Administration (MSHA) solution for dust saturated atmospheres and harmful toxic working environments.
Ensuring cabin air is safe to breathe and free from airborne contaminates including pesticide, asbestos, silica dust, fine coal dust and diesel particulate matter. To ensure risk for the coal mine operators is at an acceptable level.
HEPA solutions for underground and surface mining applications
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| H0202671 | H13 HEPA FILTER OPTION FOR EB9P2X & EB9P4X |
| H0225677 | HEPA UPGRATE KIT WITH PRESSURE MONITORING |
