EB9P - Fresh Air Pressuriser with HEPA
H0316118 / H0316119
Sigma’s robust EB9P Cabin Fresh Air Pressuriser system is now available with HEPA air filters in the box.
Our H13 HEPA air filter is EN1822 compliant and rated at 99.95% for particles diameter 0.3 μm on qualified cabins.
Delivering filtered fresh air for operator comfort and cabin pressurization.
VEHICLES
- DRILL
- DOZER
- TRUCK
- WHEEL LOADER
- CONSTRUCTION
- UNDERGROUND EQUIPTMENT
SIGMA Knorr-Bremse Australia
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Fan Speeds | 1 | 1 |
| Fresh Air | 22 l/s | 42 CFM |
| Power Supply | 12V / 24V | 12V / 24V |
| Current Draw | 6A / 3A | 6A / 3A |
| Weight (nominal) | 8.0 Kg | 17.6 lbs |
| Technical Manual Reference | SM496-5065 | SM496-5065 |
| Dimension L X W X H | 462mm X 364mm X 192mm | 18.2in X 14.3in X 7.6in |
WHY HEPA FILTER?
BREATHE EASIER WITH THE SIGMA HEPA FILTER
The Workplace Health & Safety (WHS) and Mine Safety & Health Administration (MSHA) solution for dust saturated atmospheres and harmful toxic working environments.
Ensuring cabin air is safe to breathe and free from airborne contaminates including pesticide, asbestos, silica dust, fine coal dust and diesel particulate matter. To ensure risk for the coal mine operators is at an acceptable level.
HEPA solutions for underground and surface mining applications

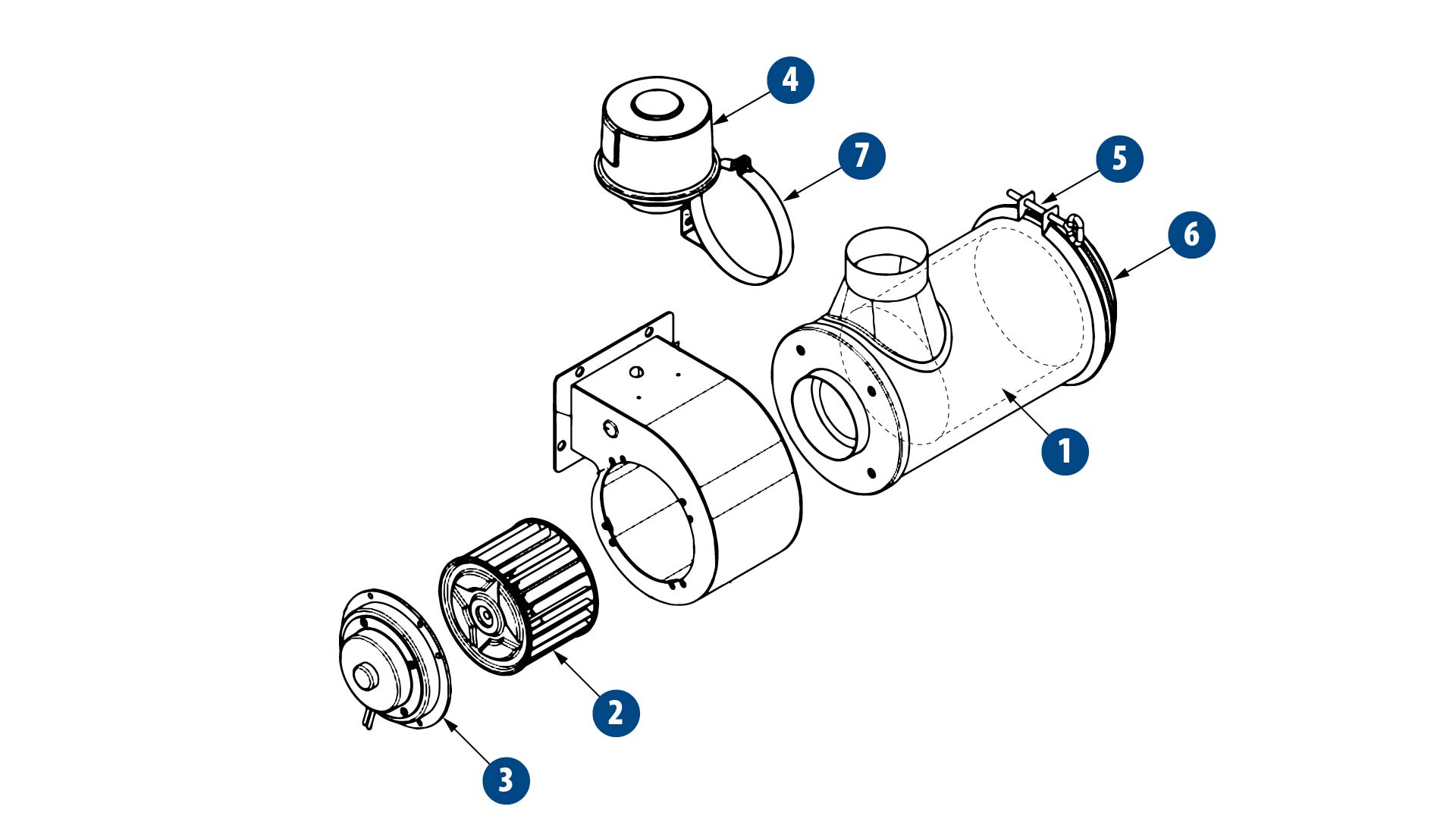

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | H0202671 | H13 HEPA FILTER | 1 |
| 2 | AU410337 | BLOWER 120D x 89W x 5/8 COUNTER CLOCKWISE SINGLE INLET | 1 |
| 3 | UE327 H0175266 | MOTOR 80W 12V FOR EB9P2X MOTOR 70W 24V ASSEMBLY FOR EB9P4X & EB9P4XL | 1 1 |
| 4 | AU460963 | PRE CLEANER TS 3” INLET SMALL | 1 |
| 5 | H0056158 | CLAMP ASSEMBLY 168MM INTERNAL DIAMETER | 1 |
| 6 | H0056157 | COVER ASSEMBLY | 1 |
| 7 | AU870001 | MOUNTING BAND AIR CLEANER 6.5" DIA | 1 |
| S3750100 | SEAL GASKET MOTOR | 1 | |
| S3750101 | SEAL CASKET CANISTER | 1 |
MAINTENANCE
H0202671
H13 HEPA FILTER OPTION FOR EB9P2X & EB9P4X (FOR UPGRATED UNIT)
UE327
MOTOR 80W 12V FOR EB9P2X
H0175266
MOTOR 70W 24V ASSEMBLY FOR EB9P4X & EB9P4XL
AU410337
BLOWER 120D X 89W X 5/8 CCW SI
AU460963
PRE CLEANER TS 3” INLET SMALL
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| AU682070 | AIR FLOW AND MONITORING SWITCH |
