H0134546

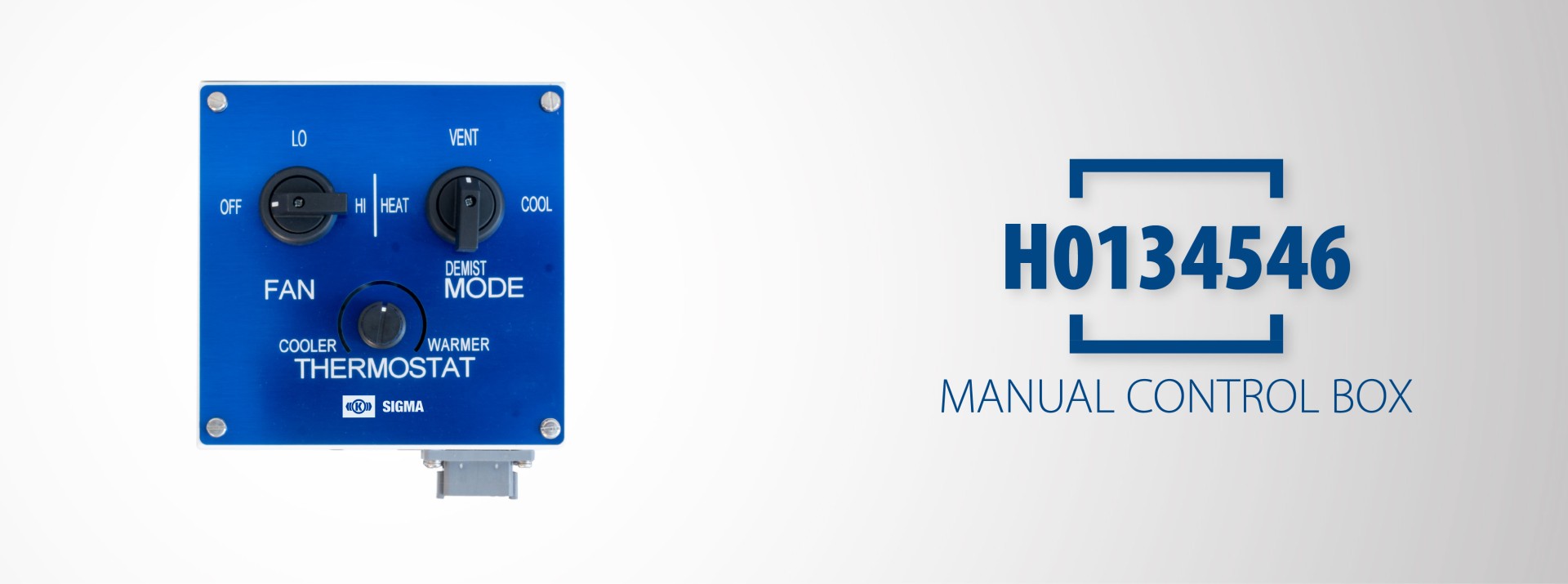

Two switch manual control box with dial control thermostat
VEHICLES
- DRAGLINE & SHOVEL
- DRILL
- SMELTERS
SIGMA Knorr-Bremse Australia
Granville NSW 2142
Australia
mid.aus@sigma-hvac.com
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Dimension L X W X H | 180mm X 85mm X 180mm | 7.0in X 3.3in X 7.0in |
SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | H0129836 | ROTARY SWITCH 3 POSITION | 1 |
| 2 | H0134548 | REMOTE CONTROL BOX LABEL COVER | 1 |
| 3 | AU681927 | POTENTIOMETER | 1 |
| 4 | AU971036 | GROMMET | 1 |
| 5 | AU663562 | ROTARY SWITCH | 1 |
| 6 | AU681925 | THERMOSTAT 12-24VDC WITH SENSOR + POT | 1 |
| 7 | AU632383 | RECPT 12 PIN FLANGE + WEDGE | 1 |
Switch
Controls
FAN
- OFF / LO / MED / HI
MODE
- VENT / COOL / DEMIST / HEAT
