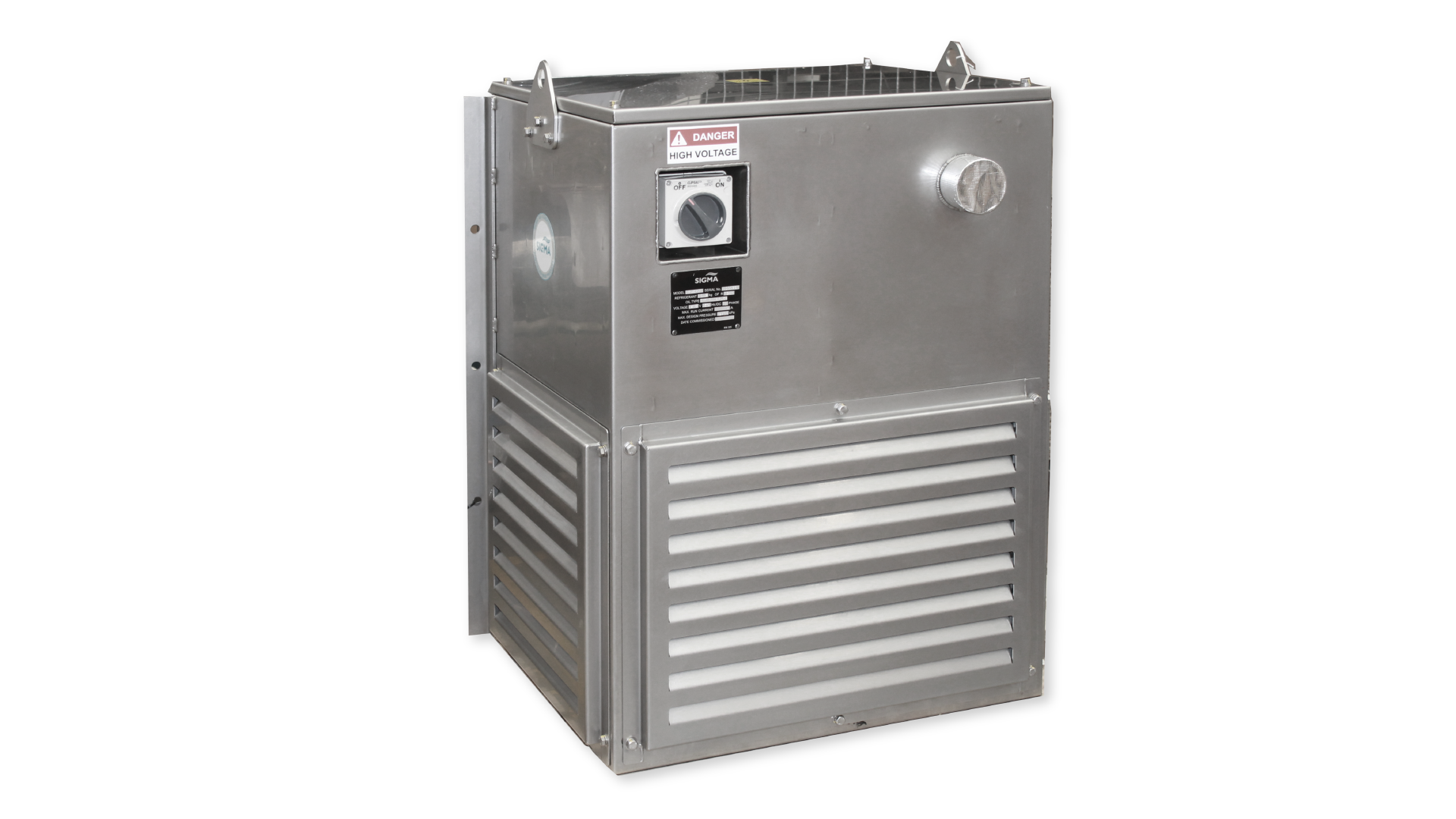

MPW5MX1
Our MPW5MX1 system is a 5kW cooling and 3kW heating capacity system built for non-static applications encountering mild vibration and shock loads. Designed with the highest quality components for maximum life and reliability. They include special features such as stainless steel construction, return air filter, fully-hermetic scroll compressor and easy access for service.
VEHICLES
- UNDERGROUND EQUIPMENT
- INDUSTRIAL
- SMELTERS
- RAIL SPECIAL VEHICLES
Granville NSW 2142
Australia
mid.aus@sigma-hvac.com
SPECIFICATIONS
METRIC | IMPERIAL | |
---|---|---|
Cooling Capacity | 5.0 kW | 17,060 BTU |
Heating Capacity | 3.0 kW | 10,236 BTU |
Fan Speeds | 3 | 3 |
Air Flow | 200 l/s | 424 CFM |
Fresh Air | 30 l/s | 64 CFM |
Power Supply | 415 VAC 3Phase-50Hz | 415 VAC 3Phase-50Hz |
Current Draw | 17 A | 17 A |
Refrigerant | R134a | R134a |
Maximum Ambient Temperature | 54°C | 129°F |
Weight (nominal) | 760.0 Kg | 1672.0 lbs |
Technical Manual Reference | SM519-4077 | SM519-4077 |
Dimension L X W X H | 700mm X 705 mm X 969mm | 27.5in X 27.7in X 38.1in |

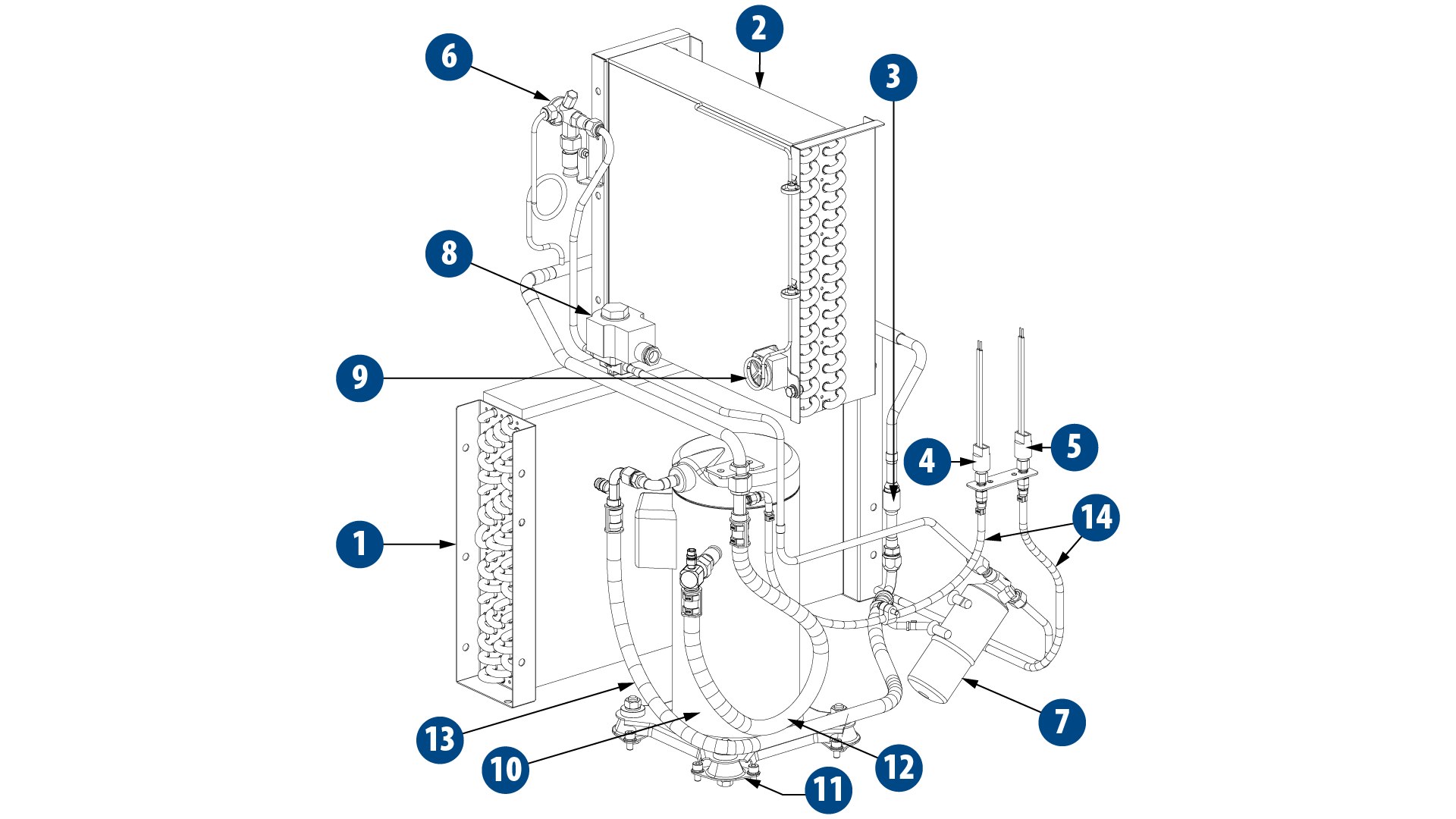

REFRIGERATION / GENERAL ASSEMBLY SPARE PARTS LIST
Sl.No. | PART NO. | DESCRIPTION | QTY |
---|---|---|---|
H0028308 | FILTER MEDIA | 1 | |
1 | AU110397 | CONDENSER COIL 540MM X 381MM X 79MM 5RW MPV5 | 1 |
2 | AU120492 | EVAPORATOR COIL 380MM X 381MM X 88MM 4 RW MPV5 | 1 |
3 | AU517621 | VALVE CHECK 1/2SL STRAIGHT | 1 |
4 | AU523365 | LOW PRESSURE SWITCH | 1 |
5 | AU523655 | HIGH PRESSURE SWITCH | 1 |
6 | AU521509 AU521504 | TX VALVE 2T 3/8” IN 1/2” OUT 1/4” EQ R134A TX ORIFICE 2T R22 #04 | 1 1 |
7 | AU531415 | RECEIVER DRIER 3/8” MF 193MM HIGH | 1 |
8 | AU522021 AU668140 | SOLENOID VALVE COIL SOLENOID 24VDC TYPE 1 | 1 1 |
9 | UE016 | THERMOSTAT DEICE STUD | 1 |
10 | H0304197 | COMPRESSOR ASSEMBLY | 1 |
11 | AU845248 | ANTI VIBRATION MOUNT | 4 |
12 | H0227316 | SUCTION HOSE ASSEMBLY | 1 |
13 | H0227314 | DISCHARGE HOSE ASSEMBLY | 1 |
14 | HO227302 | PRESSURE SWITCH HOSE ASSEMBLY | 2 |
AU821301 | DIFFUSER ROUND 75MM PLASTIC | 2 | |
AU861125 | SEAL D 489X365 ID | 2 | |
AU862211 | SEAL RUBBER | 1 | |
AU517502 | VALVE ACCESS 1/4” | 1 |
MAINTENANCE
H0028308
FILTER MEDIA
AU531415
RECEIVER DRIER 3/8” MF 193mm HIGH
AU521509
TX VALVE 2T 3/8”IN 1/2” OUT 1/4” EQ R134A
UE016
THERMOSTAT DEICE STUD
AU521504
TX ORIFICE 2T R22 #04
AU845248
ANTI VIBRATION MOUNT
H0227316
SUCTION HOSE ASSEMBLY
H0227314
DISCHARGE HOSE ASSEMBLY
HO227302
PRESSURE SWITCH HOSE ASSEMBLY
ELECTRICAL SPARE PARTS LIST
Sl.No. | PART NO. | DESCRIPTION | QTY |
---|---|---|---|
1 | AU651047 | CONTACTOR 12A 3 POLE 24VDC 1NO | 3 |
2 | AU677142 | CONVERTER AC/DC IN 24VDC OUT 3A | 1 |
3 | AU641390 | CIRCUIT BREAKER 4A 2 POLE | 1 |
4 | AU641093 | CIRCUIT BREAKER 16A 3 POLE | 1 |
5 | AU661040 | RELAY 8 PIN 24VDC 2 POLES | 3 |
6 | AU661041 | RELAY BASE 8 PIN | 3 |
7 | AU661043 | RELAY POWER FAILURE 3 PHASE | 1 |
8 | AU672500 | TIMER ON DELAY 24VDC 0.1SEC-100HR 1 POLE | 1 |
9 | AU4201004 | FAN AXIAL 400MM 400VAC | 1 |
10 | H0023291 | BLOWER IMPELLER 307D X 222W 240VAC | 1 |
11 | H0023701 | SWITCH | 1 |
12 | AU691104 | HEATER U SHAPE 1.0KW 240V 365MM BRS FIN | 3 |
13 | AU681020 | THERMOSTAT T5 50°C SPST N/C AUTO | 1 |
AU679519 | CONTROLLER ELECTRICAL 24VDC DISPLAY | 1 | |
AU6811015 | THERMOSTAT SENSOR NTC -50 TO 105°C | 1 |
COMPANION ITEMS
PART NO. | DESCRIPTION |
---|---|
KNHV90029 | Installation Kits |
PVV50M2 | Pressuriser |
EB9P4X | Pressuriser |
AU679519 | Controller |
AU6811015 | Temperature Sensor |
