MPF6MX10 - Floor Mounted HVAC Unit
MPF6MX10
This is a vertical floor and/or wall mounted air conditioner package comprising of two compartments. The bottom compartment is the condenser section and contains the compressor, condenser fan and motor, pressure controls and condenser coil. The top compartment is the evaporator section and contains the evaporator coil, thermal expansion valve, refrigerant liquid filter drier, liquid moisture indicator, supply air fans and isolating valves.
VEHICLES
- DRAGLINE & SHOVEL
- SMELTERS
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 6.0 kW | 20,472 BTU |
| Fan Speeds | 3 | 3 |
| Air Flow | 270 l/s | 572 CFM |
| Power Supply | 415 VAC / 50Hz 3 Phase | 415 VAC / 50Hz 3 Phase |
| Current Draw | 12 A | 12 A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 54°C | 129°F |
| Weight (nominal) | 295.0 Kg | 649.0 lbs |
| Technical Manual Reference | SM408-2427 | SM408-2427 |
| Dimension L X W X H | 1512mm X 1145 mm X 970mm | 59.5in X 45.1in X 38.2in |

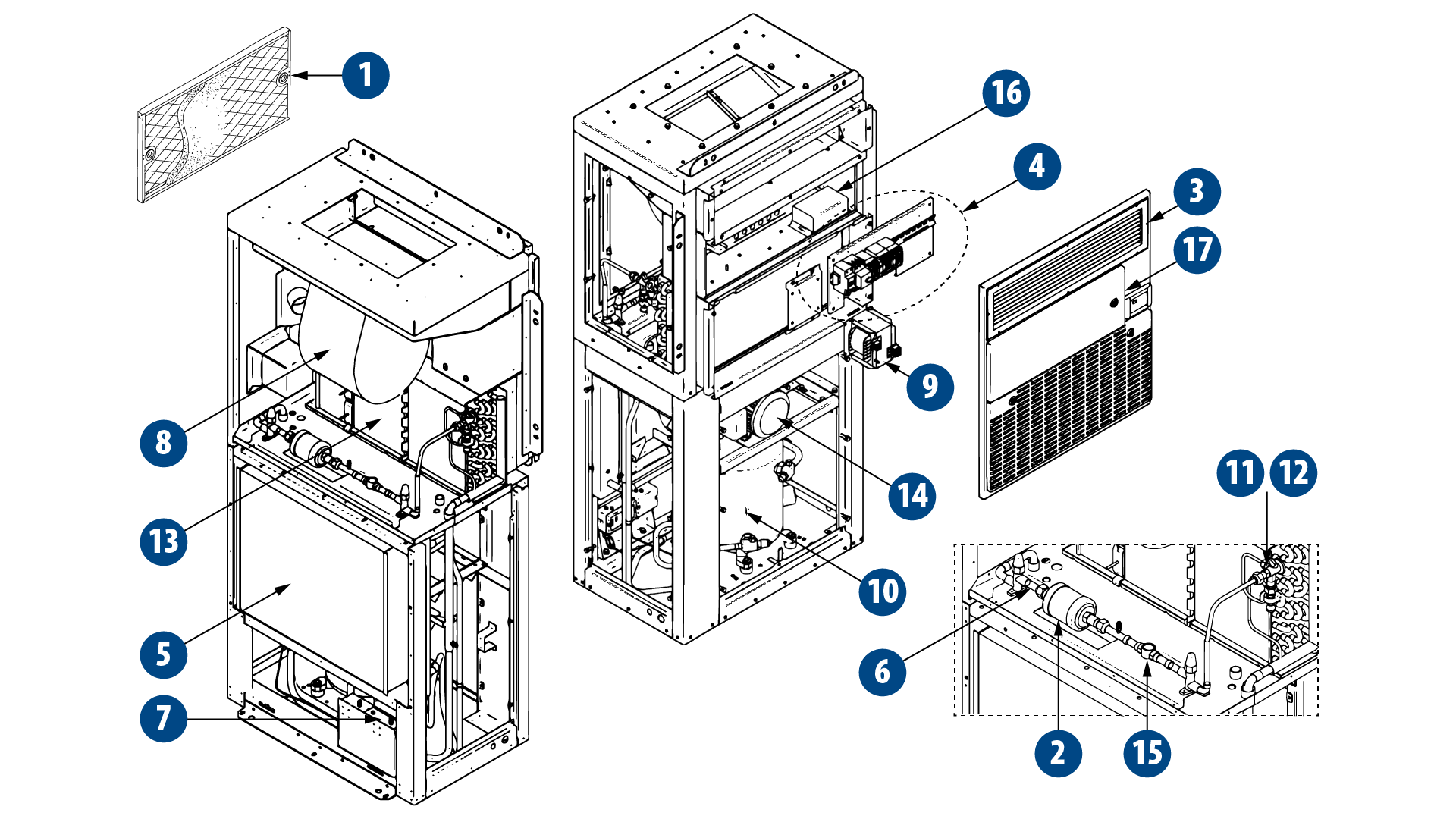

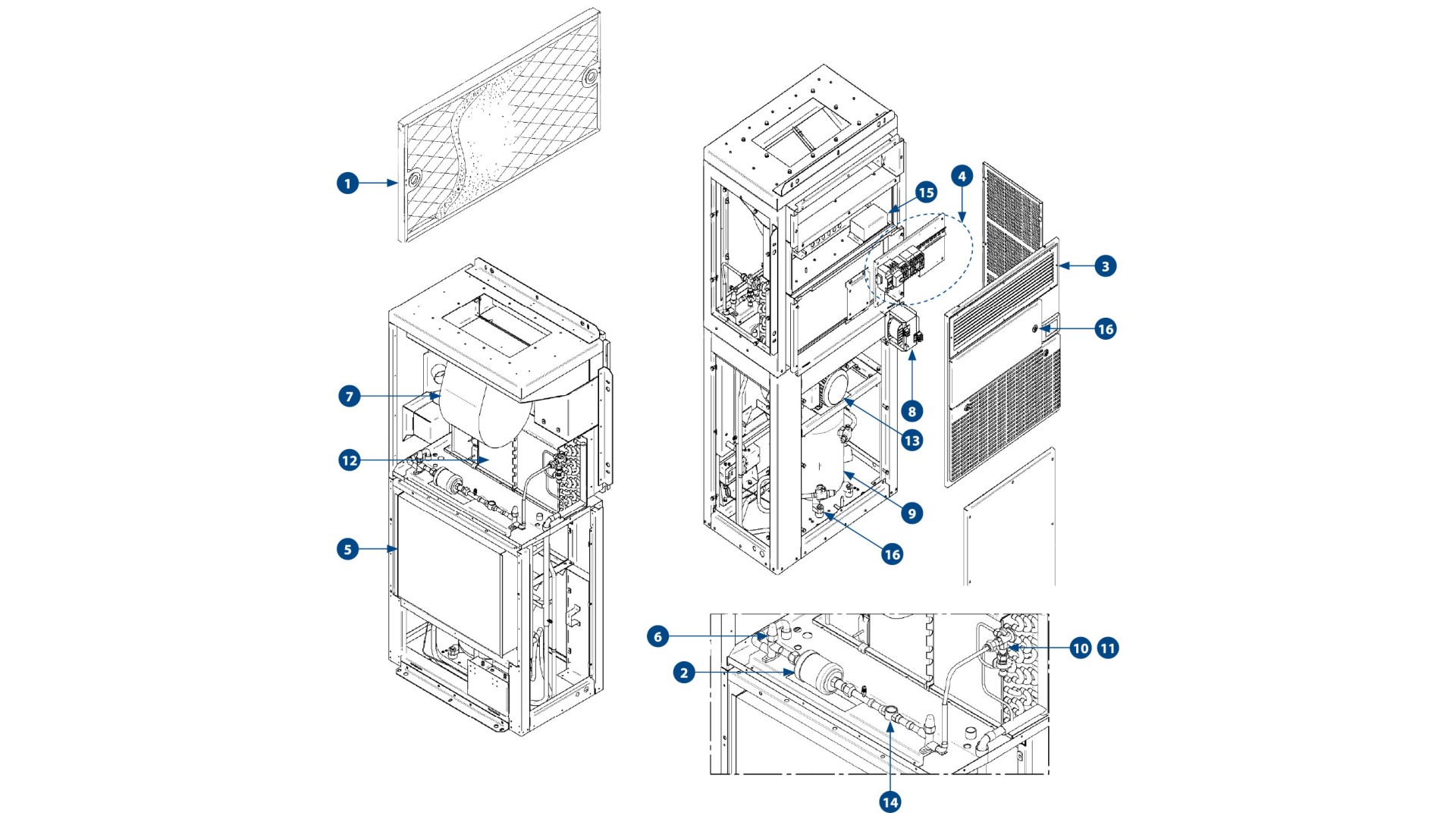

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AS242745S | RETURN AIR FILTER ASSEMBLY | 1 |
| 2 | AU531358 | DRIER 5/8" MF | 1 |
| 3 | AU821136 | LOUVRE 646MM X 136MM OPEN AREA DOUBLE DEFLECT | 1 |
| 4 | AU641390 AU641496 AU651303 | CIRCUIT BREAKER 4A 2 POLE CIRCUIT BREAKER 11.0-16.0A 3 POLE CONTACTOR 9A 240VAC 3 POLE 1NO 1NC | 1 1 2 |
| 5 | AU110429 | CONDENSER COIL 600 X 508 X 110 4RW MPF | 1 |
| 6 | AU517258 | PCLV 5/8" SOLDER | 2 |
| 7 | AU523112 | DUAL PRESSURE CONTROL LP AUTO HP AUTO | 1 |
| 8 | AU410503 | Blower Assembly 240V 50Hz | 1 |
| 9 | AU666026 | TRANSFORMER 415V 240V 24V 500VA | 1 |
| 10 | AU230346 | COMPRESSOR 246MM X 200MM X 372MM 3 PHASE ROTALOK | 1 |
| 11 | AU521505 | TX ORIFICE 2T R22 #05 | 1 |
| 12 | AU521509 | TX VALVE 2T 3/8" IN 1/2" OUT 1/4" EQ R134A | 1 |
| 13 | AU120284 | EVAPORATOR COIL 610MM X 318MM X 110MM 4RW MPF | 1 |
| 14 | AU310214 | MOTOR 0.75KW 80P FT 4P | 1 |
| 15 | AU533556 | MI 5/8" SOLDER | 1 |
| 16 | H0152931 | THERMOSTAT CONTROL KIT | 1 |
| 17 | AU851566 | LATCH 1/4 TURN | 3 |
| AU420252 | FAN AXIAL 400MM 9 BLADES | 1 | |
| AU662410 | SWITCH KEYED 20A | 1 | |
| S2427088 | FILTER MEDIA | 1 | |
| AU517502 | ALVE ACCESS 1/4" 1/4" & 3/8" OD SOLDER | 1 | |
| AU862213 | SEAL RUBBER | 1 |
MAINTENANCE
AS242745S
RETURN AIR FILTER ASSEMBLY
AU531358
DRIER 5/8” MF
AU521509
TX VALVE 2T 3/8” IN 1/2” OUT 1/4” EQ R134A
AU523112
DUAL PRESSURE CONTROL LP AUTO HP AUTO
H0281808
FAN ASSEMBLY BRUSHLESS 24VDC DIA 305MM
AU521505
TX ORIFICE 2T R22 #05
