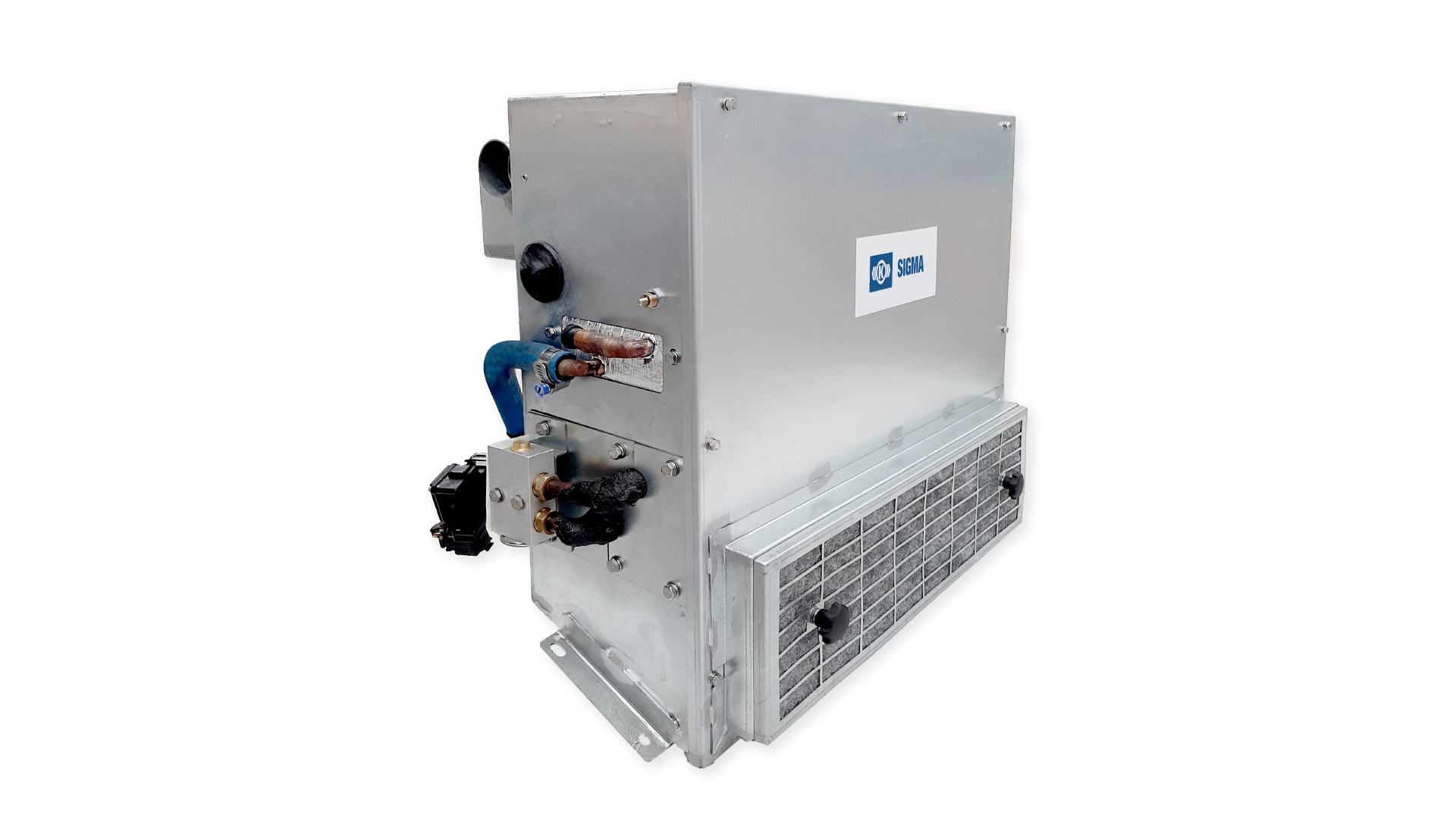

EFF5 - Floor Mounted Evaporator
EFF5BX3
Refined to handle high vibration, dust and high ambient, the tried and tested EFF4 Floor Mounted Evaporator system is rated at 5kW cooling & 6 kW heating capacity with 200 l/s (424 CFM) air flow operating on 24VDC power supply.
VEHICLES
- TRUCK
- WHEEL LOADER
- CONSTRUCTION
- INDUSTRRIAL
- RAIL SPECIAL VEHICLES
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 5.0 kW | 17,061 BTU |
| Heating Capacity | 6.0 kW | 20,473 BTU |
| Air Flow | 200 l/s | 424 CFM |
| Fresh Air | 100 l/s | 212 CFM |
| Power Supply | 24V | 24V |
| Current Draw | 13A | 13A |
| Refrigerant | R134a | R134a |
| Minimum Ambient Temperature | -10ºC | 14ºF |
| Maximum Ambient Temperature | 54ºC | 129.2ºF |
| Weight (nominal) | 30 Kg | 66.14 lbs |

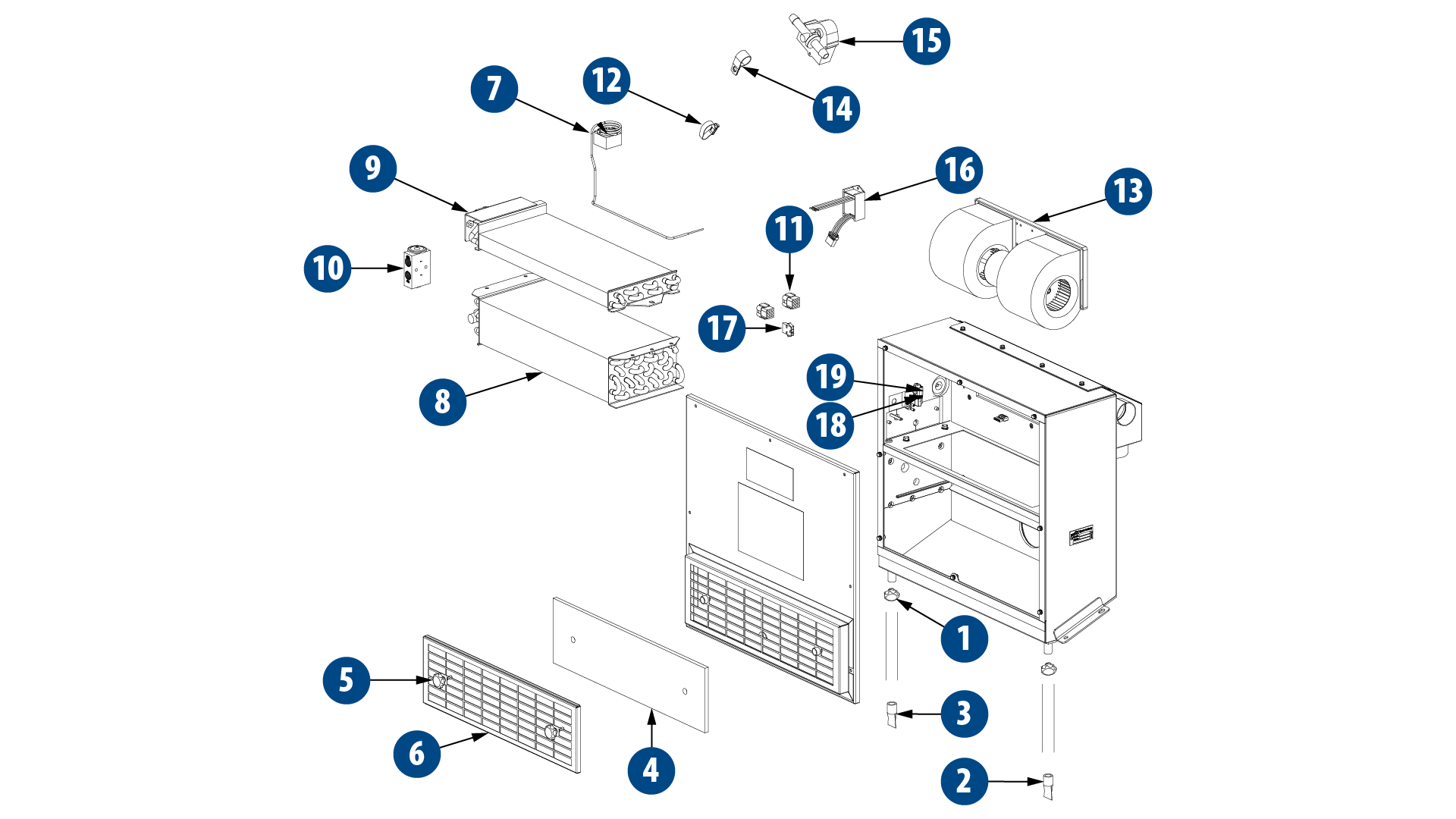

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU553610 | CLAMP HOSE 19-28 MM OUTER DIAMETER | 2 |
| 2 | UC504 | DRAIN NOZZLE 13MM | 2 |
| 3 | UC020 | HOSE CLEAR PVC 12 5MM INTERNAL DIAMETER | 1 |
| 4 | H0093153 | RETURN AIR FILTER | 1 |
| 5 | AU911852 | SCR THUMB M6X20 SS THREAD | 2 |
| 6 | S3942530 | AIR FILTER BACK PANEL | 1 |
| 7 | UE016 | THERMOSTAT DEICE STUD | 1 |
| 8 | H0092745 | EVAPORATOR COIL 416MM X 178MM X 95MM 6 ROW | 1 |
| 9 | H0092744 | HEATER COIL 416MM X 178MM X 32MM 2 ROW | 1 |
| 10 | AU521946 | THERMAL EXPANSION VALVE BLOCK 2T 3/8” IN 1/2” OUT R134A | 1 |
| 11 | AU6311012 | 9 WAY Receptacle Connector | 2 |
| 12 | AU553611 | HOSE CLAMP | 2 |
| 13 | AU400051 | FAN DECK 24V 3SPEED | 1 |
| 14 | AU553565 | P CLAMP / P CLIP FOR 23.8MM Diameter | 1 |
| 15 | AU5221004 | 2-PORT 5/8” ELECTRIC HEATER CONTROL VALVE | 1 |
| 16 | AU6811008 | HEATER VALVE CONTROL MODULE | 1 |
| 17 | AU636042 | 3 WAY FEMALE RECEPTACLE PLUG | 1 |
| 18 | AU632374 | PLUG 2 SOCKET + WEDGE | 1 |
| 19 | AU632373 | 2 PIN RECEPTACLE | 1 |
| AU663118 | ROTARY SWITCH 2 POSITION 45 DEGREE | 1 | |
| UC451 | KNOB 1/4 BLACK PLASTIC 21MM Diameter | 1 | |
| UE335 | ROTARY SWITCH 3 SPEED COMPLETE WITH NUT | 1 | |
| H0147952 | WIRE HARNESS | 1 |
MAINTENANCE
H0093153
RETURN AIR FILTER
UE016
THERMOSTAT DEICE STUD
AU521946
TX VALVE
AU400051
FAN DECK 24V 3SPEED
AU5221004
2-PORT 5/8” ELECTRIC HEATER CONTROL VALVE
UE335
ROTARY SWITCH 3 SPEED COMPLETE WITH NUT
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| EB9P4X | Pressuriser (24VDC) |
| HDC150 | Hydraulic Compressor |
| AU110388 | Condenser Coil 770X282X70 4RW |
| AU270306 | Compressor UP170 2A 24V VMO 132 OD PAG |
| AU270307 | Compressor UP170 1B 24V VMO 135 PAG |
| AU270311 | Compressor UP150 2A 24V VMO 132 OD PAG |
| AU270312 | Compressor UP150 1B 24V VMO 135 OD PAG |
| AU531422 | Receiver Drier with Sight Glass |
| EC22C4 | Light Duty Condenser (24VDC) |
