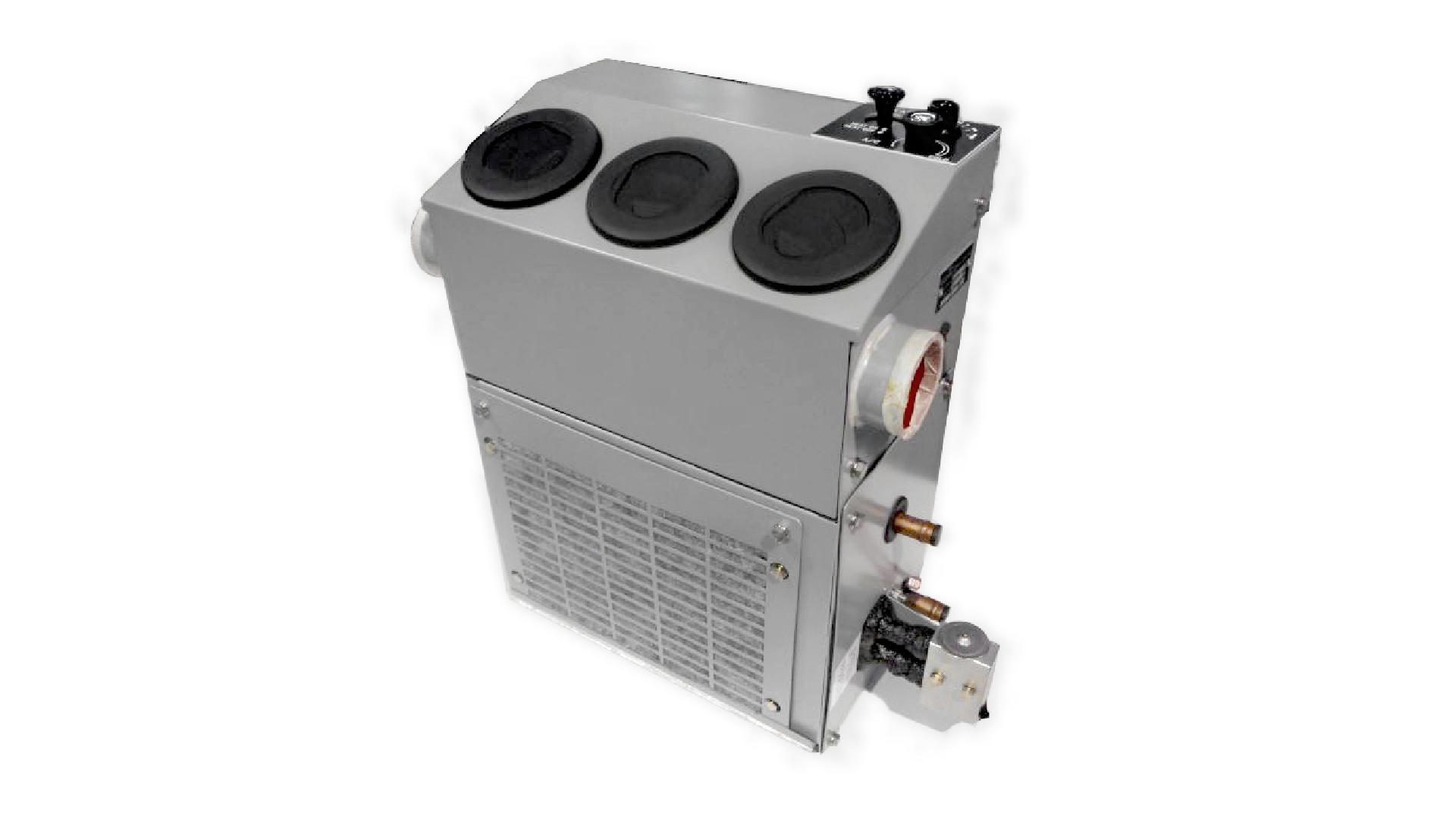

EFF4 - INTERNAL EVAPORATOR
EFF4BX1
Refined to handle high vibration, dust and high ambient, the tried and tested EFF4 Floor Mounted Evaporator system is rated at 4kW cooling & heating capacity with 100 l/s (212 CFM) air flow operating on 24VDC power supply.
VEHICLES
- TRUCK
- WHEEL LOADER
- CONSTRUCTION
- INDUSTRRIAL
- RAIL SPECIAL VEHICLES
SIGMA Knorr-Bremse Australia
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 4.0 kW | 13,648 BTU |
| Heating Capacity | 4.0 kW | 13,648 BTU |
| Air Flow | 100 l/s | 212 CFM |
| Power Supply | 24V | 24V |
| Current Draw | 6A | 6A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 46ºC | 115ºF |
| Weight (nominal) | 15.0 Kg | 33.0 lbs |
| Technical Manual Reference | SM518-3938 | SM518-3938 |
| Dimension L X W X H | 390mm X 210mm X 455mm | 15.3in X 8.2in X 17.9in |

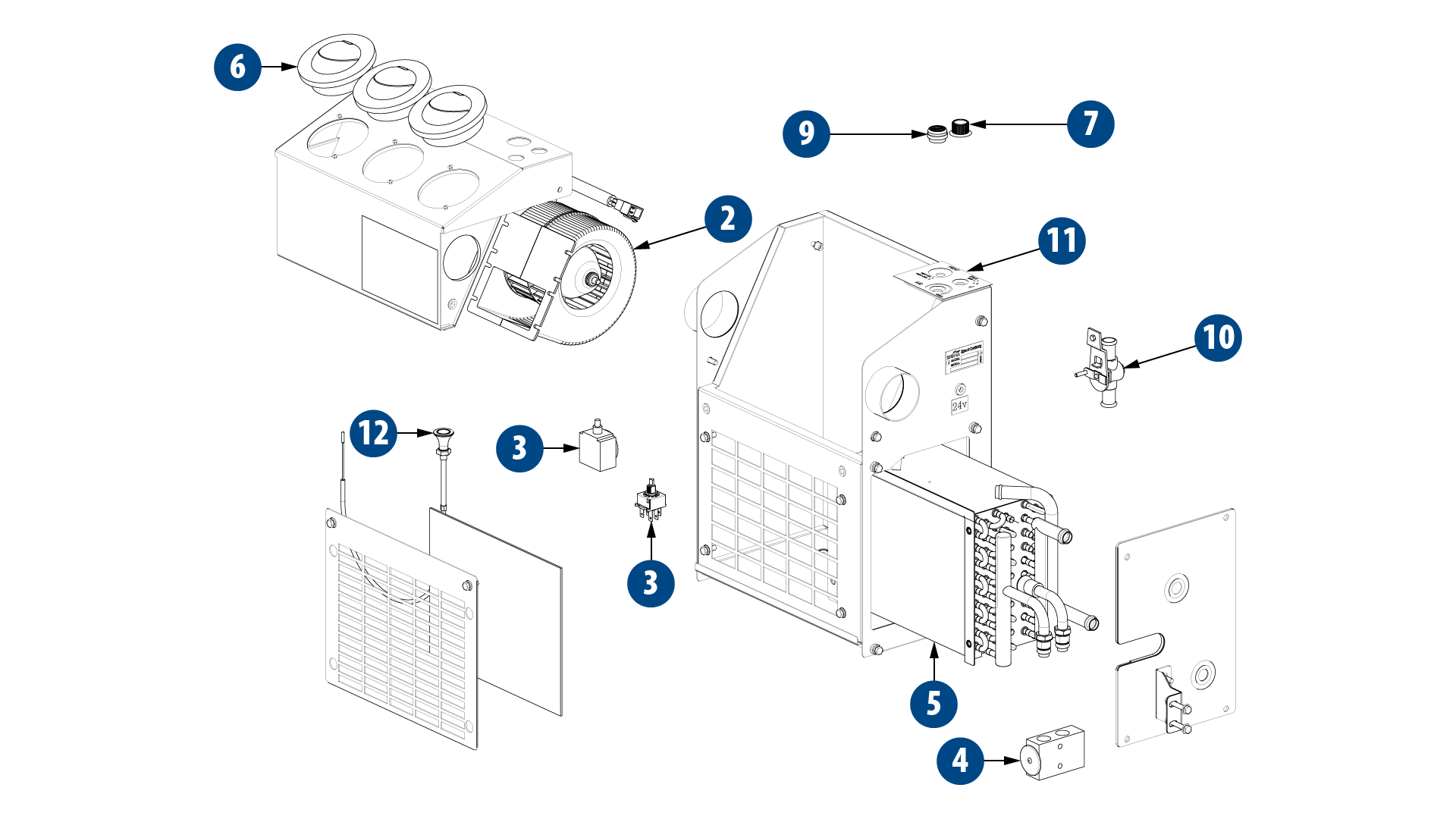

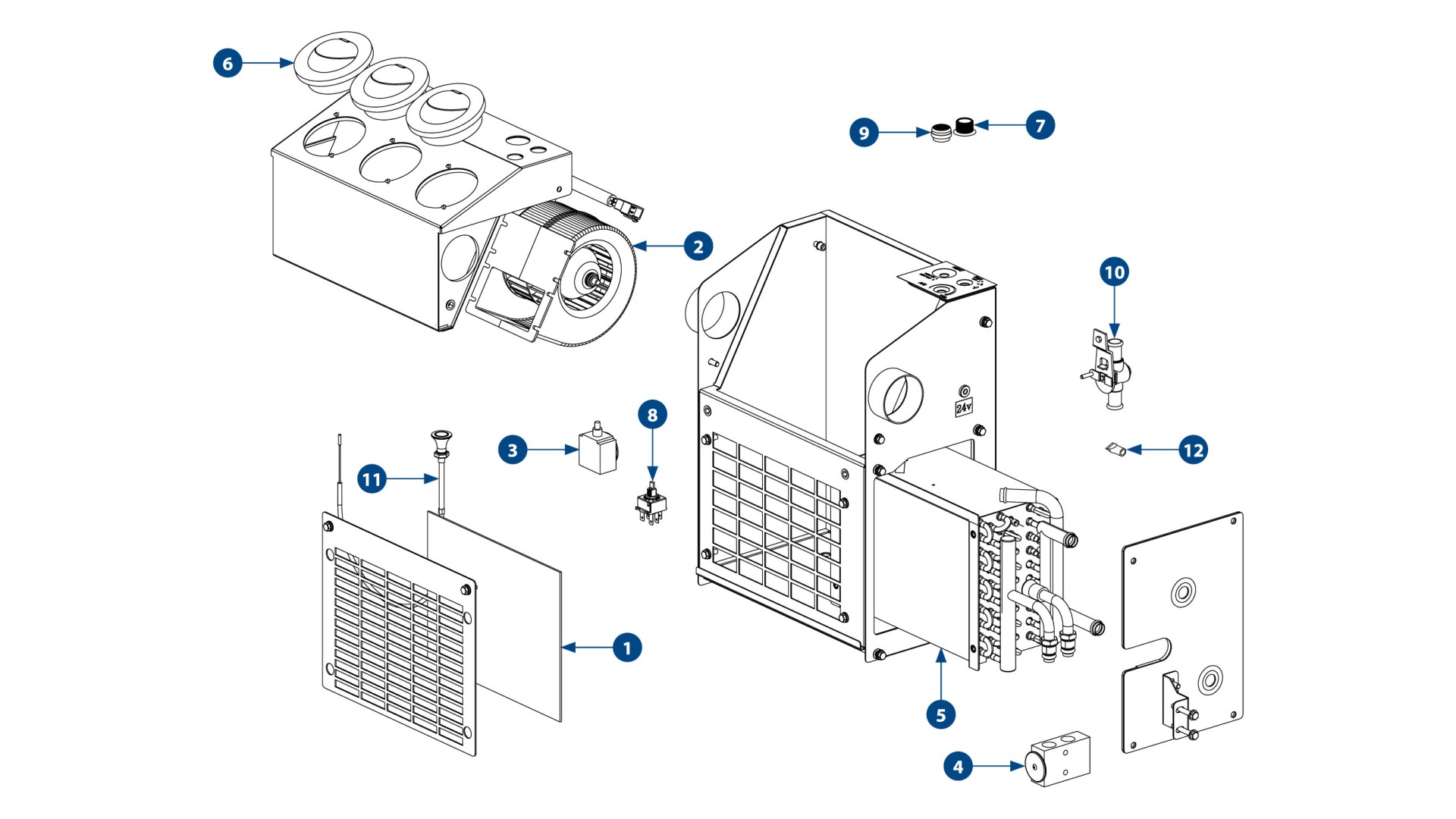

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | S3938009 | FILTER MEDIA | 1 |
| 2 | AU4001001 | FAN DECK 24V 3SPEED | 1 |
| 3 | UE016 | THERMOSTAT DEICE STUD | 1 |
| 4 | AU521946 | TX VALVE | 1 |
| 5 | AU1201012 | EVAPORATOR + HEATER COIL 250MM X 190MM X 66MM | 1 |
| 6 | AU821301 | DIFFUSER ROUND 75MM PLASTIC | 3 |
| 7 | UC451 | KNOB 1/4 BLACK PLASTIC 21MM DIAMETER | 1 |
| 8 | UE335 | ROTARY SWITCH 3-SPEED C/W NUT | 1 |
| 9 | UC022 | KNOB SNOWFLAKE 6.35MM | 1 |
| 10 | AU744827 | VALVE WATER 16MM | 1 |
| 11 | H0001668 | LABEL - EVAPORATOR CONTROL | 1 |
| 12 | UC042 | CABLE PUSH/PULL F/DRIVE 1500MM | 1 |
| UC504 | DRAIN NOZZLE 13MM | 2 | |
| AU552403 | O-RING 134A SIZE 13/32" #8 | 2 | |
| UC020 | HOSE CLEAR PVC 12 5MM ID | 1 |
MAINTENANCE
S3938009
FILTER MEDIA
AU4001001
FAN DECK 24V 3SPEED
UE016
THERMOSTAT DEICE STUD
AU521946
TX VALVE
UE335
ROTARY SWITCH 3 SPEED COMPLETE WITH NUT
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| EC12C4 | Electric Condenser |
| EB9P4X | Pressuriser |
| HDC150 | Hydraulic Compressor |
| AU2961001 | Electric Compressor 24V |
| AU110388 | Radiator Condenser |
| AU270306E | Engine Driven Compressor |
| AU270307E | Engine Driven Compressor |
| AU270311E | Engine Driven Compressor |
| AU270312E | Engine Driven Compressor |
| AU531422 | Receiver Drier |
