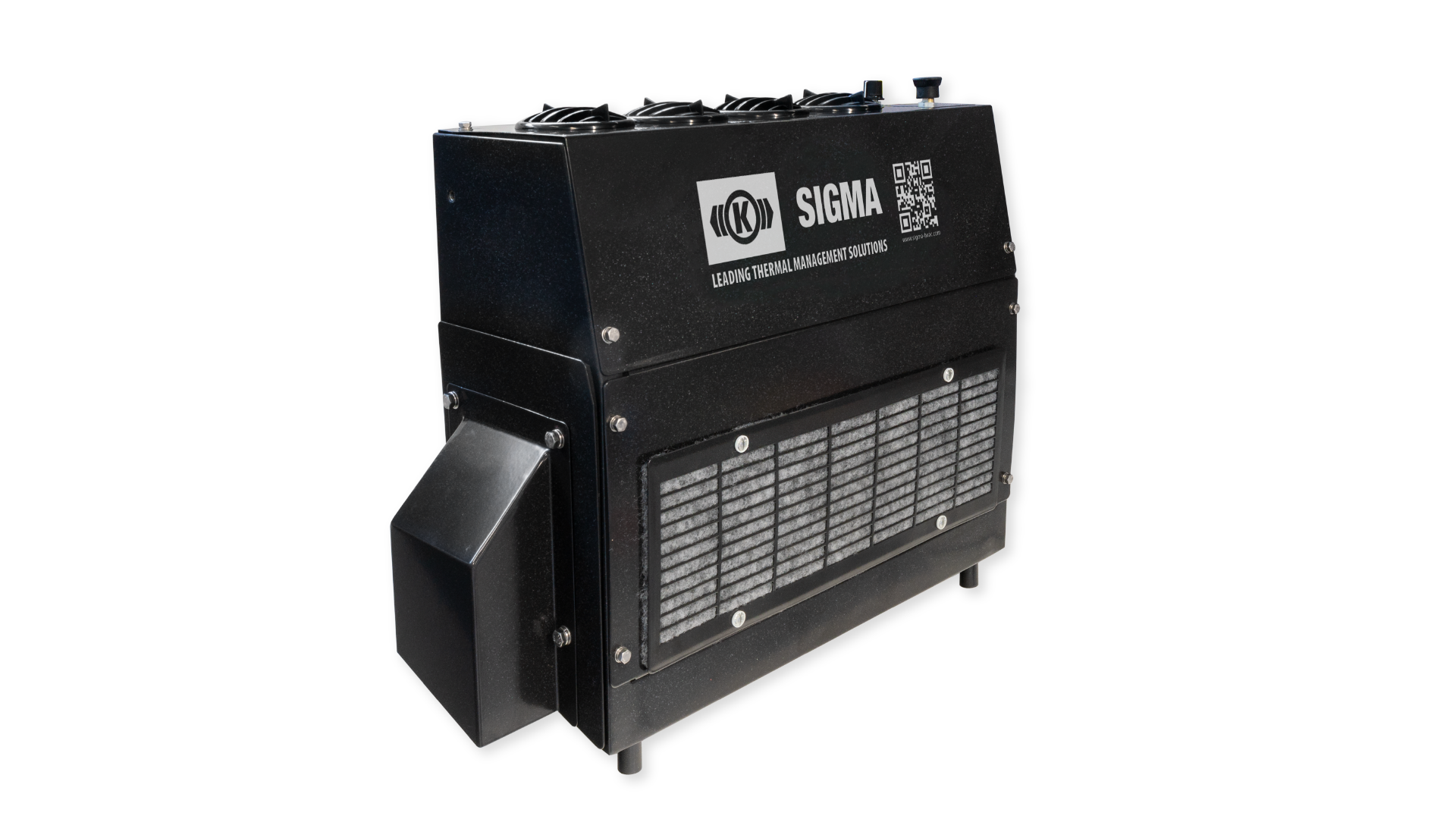

EC12I - Internal Evaporator
EC12I2 / EC12I4
Compact 4kW cooling capacity evaporator unit, ideal for cabins with space behind the operator's seat. Four air distribution vents evenly push the conditioned air around the operator, assisting with the demisting of all cabin windows. This equipment is available in 12VDC or 24VDC configurations.
VEHICLES
- TRUCK
- WHEEL LOADER
- CONSTRUCTION
- UNDERGROUND EQUIPMENT
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 4.0 kW | 13,648 BTU |
| Heating Capacity (Optional) | 3.5 kW | 11,942 BTU |
| Air Flow | 110 l/s | 233 CFM |
| Fresh Air | 30 l/s | 64CFM |
| Power Supply | 12V / 24V | 12V / 24V |
| Current Draw | 10 A / 5 A | 10 A / 5 A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 46ºC | 115ºF |
| Weight (nominal) | 10.0 Kg | 22. lbs |
| Technical Manual Reference | SM260-2494 | SM260-2494 |

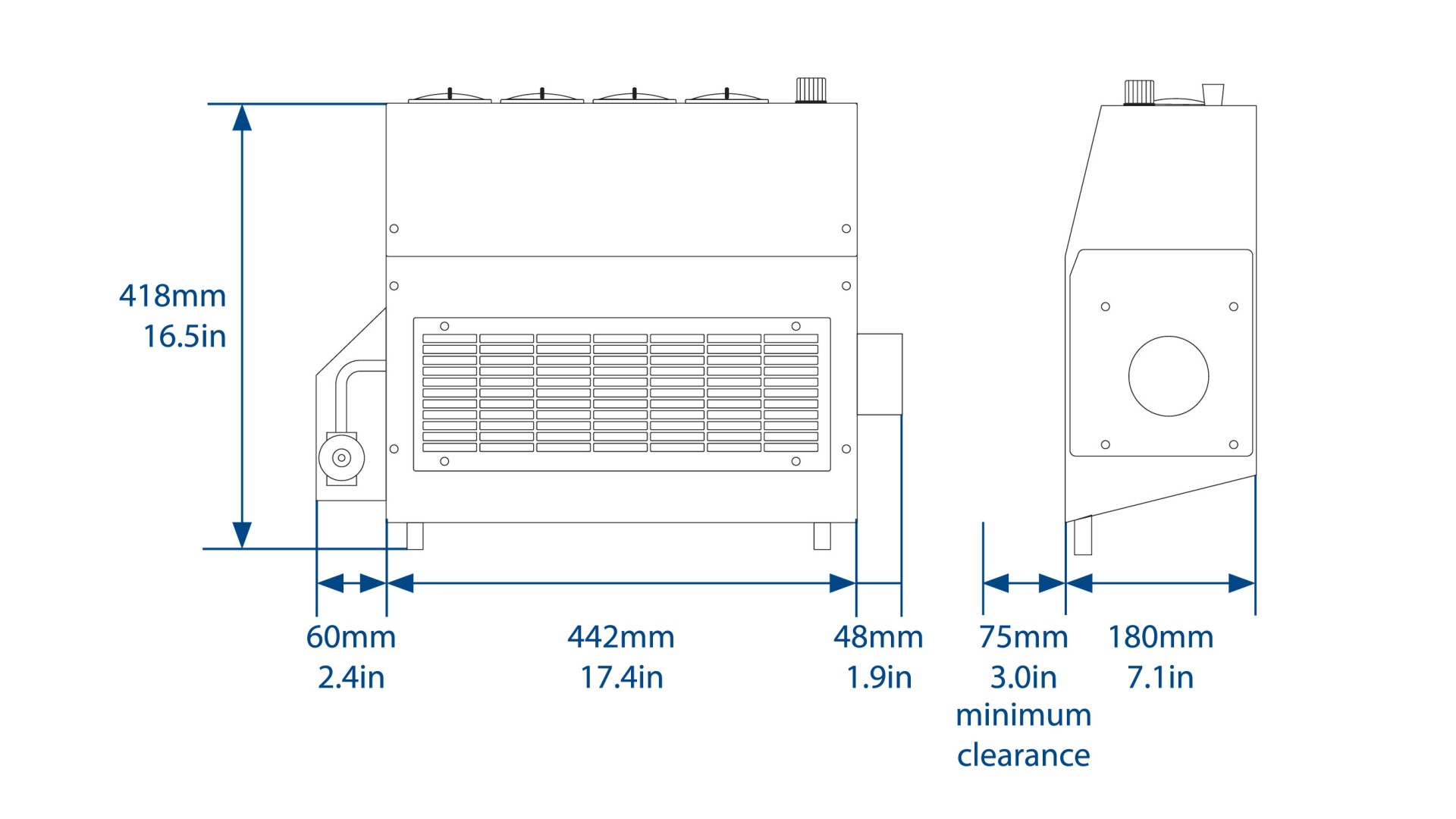

| Dimension L X W X H | 513mm X 415mm X 180mm | 20.2in X 16.3in X 7.1in |

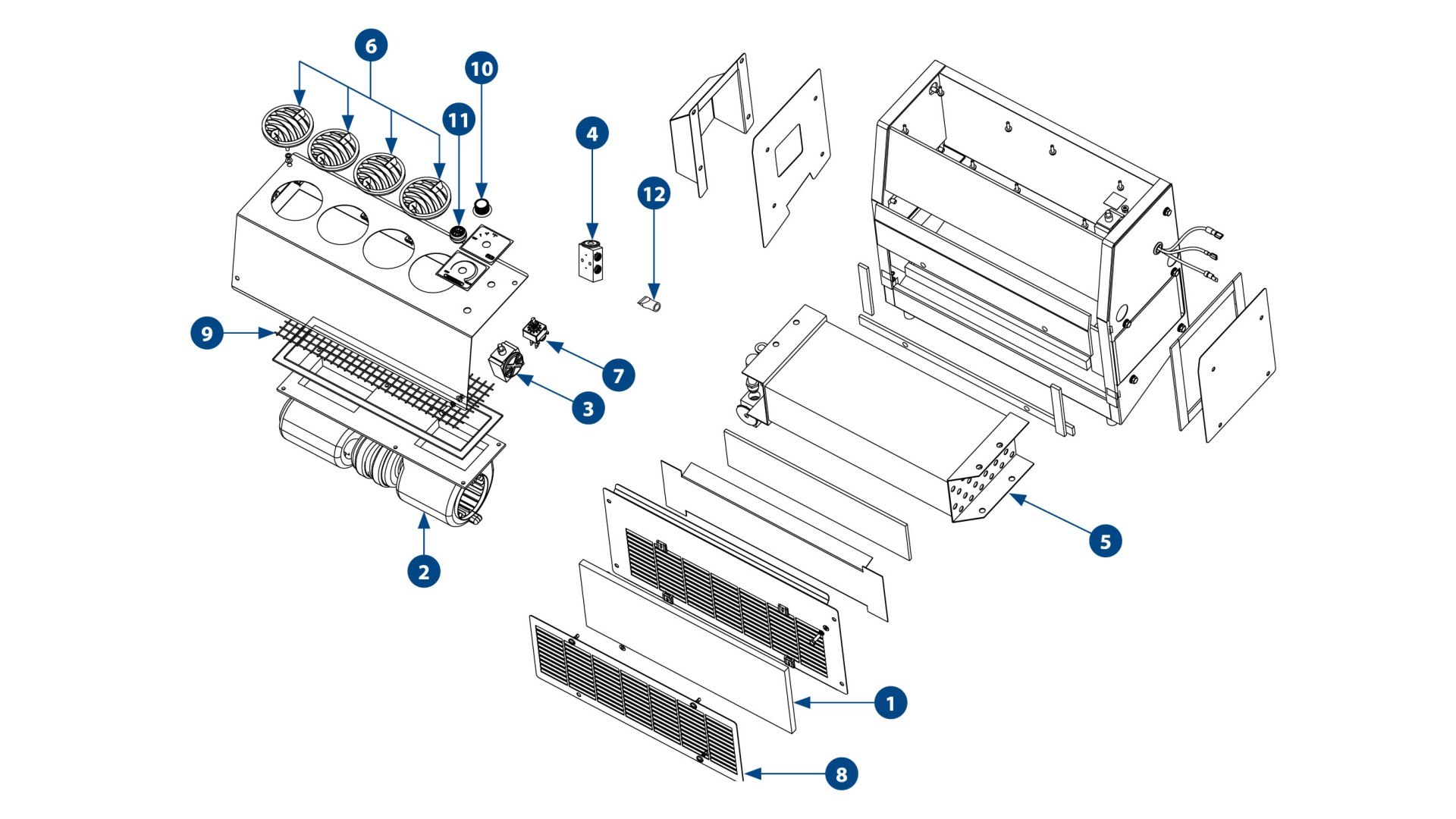

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | S2501182S | EVAPORATOR FILTER MEDIA 385MM X 145MM | 1 |
| 2 | AU400035 AU400034 | FAN DECK 12V 3SPD (EC12H2) FAN DECK 24V 3SPD (EC12H4) (EC12H4SS) | 1 1 |
| 3 | UE016 | THERMOSTAT DEICE STUD | 1 |
| 4 | AU521946 | THERMAL EXPANSION VALVE BLOCK 2T 3/8” IN 1/2” OUT R134A | 1 |
| 5 | AU120480 | EVAPORATOR COIL 345MM X 152MM X 79MM 4RW | 1 |
| 6 | AU821708 | LOUVRE ROUND 3” HOLE | 4 |
| 7 | UE335 | ROTARY SWITCH 3-SPEED C/W NUT | 1 |
| 8 | S2501021 | FILTER COVER | 1 |
| 9 | S2501207 | GRILLE 344MM X 100MM | 1 |
| 10 | AU854351 | LABEL STANDARD THERMOSTAT | 1 |
| 11 | AU854350 | LABEL AUTOMOTIVE FAN SWITCH | 1 |
| 12 | UC451 | KNOB 1/4 BLACK PLASTIC 21MM DIAMETER | 1 |
| 13 | UC022 | KNOB SNOWFLAKE 6.35MM | 1 |
| UC504 | DRAIN NOZZLE 13MM | 2 | |
| AU552403 | O-RING 134A SIZE 13/32" #8 | 2 | |
| AU643213 | FUSE BLADE MINI 15A AUTO | 1 |
MAINTENANCE
S2501182S
RETURN AIR FILTER MEDIA
AU400035
FAN DECK 12V 3SPD
AU400034
FAN DECK 24V 3SPD
UE016
THERMOSTAT DEICE STUD
UE335
ROTARY SWITCH 3 SPEED COMPLETE WITH NUT
AU521946
THERMAL EXPANSION VALVE BLOCK 2T 3/8” IN 1/2” OUT R134A
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| EC12C4 | Electric Condenser |
| EB9P4X | Pressuriser |
| HDC150 | Hydraulic Compressor |
| AU2961001 | Electric Compressor 24V |
| AU110316 | Radiator Condenser |
| AU270306E | Engine Driven Compressor |
| AU270307E | Engine Driven Compressor |
| AU270311E | Engine Driven Compressor |
| AU270312E | Engine Driven Compressor |
| KIT25014 | Heater Kit |
