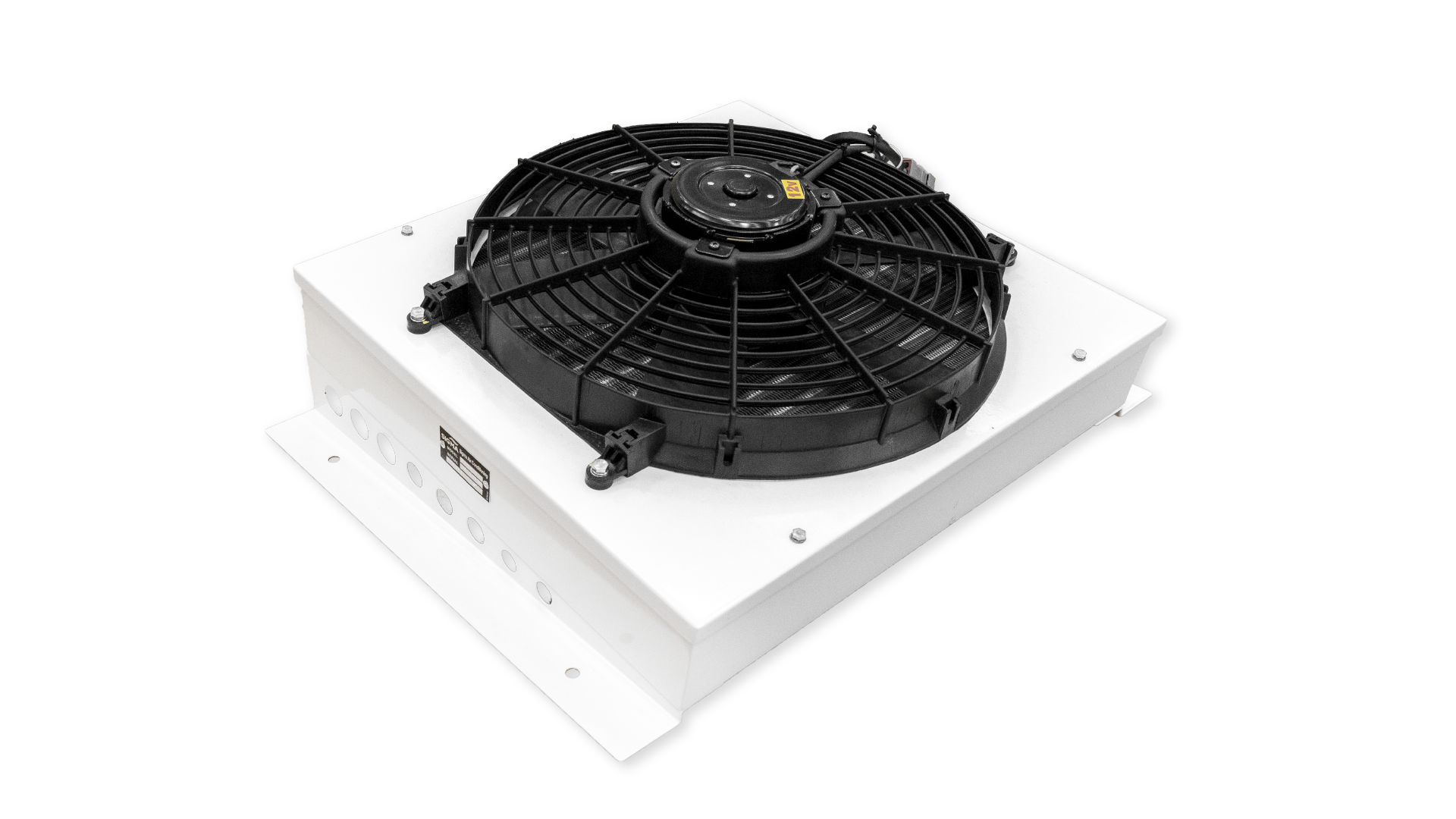

EC12C - Remote Condenser
EC12C2 / EC12C4
The EC12C condenser IS designed to provide efficient and independent heat rejections. The EC12C unit utilises a single high capacity fan / motor assembly drawing air through the coil. The unit can be mounted vertically or horizontally and is available in 12VDC or 24VDC configurations.
VEHICLES
- TRUCK
- CONSTRUCTION
SIGMA Knorr-Bremse Australia

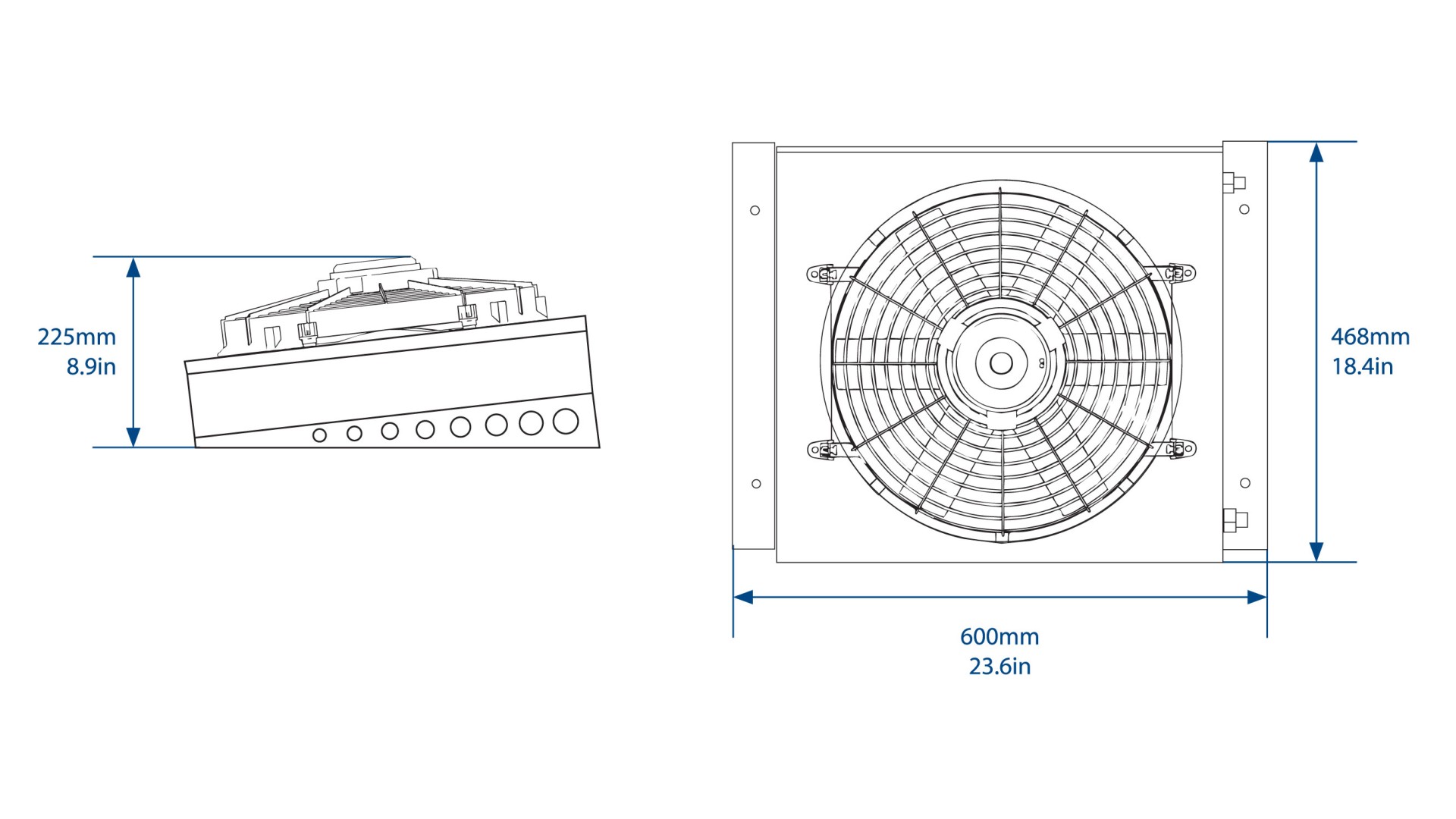

SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Heat Rejection | 5.2 kW | 17,743 BTU |
| Cooling Capacity | 4.0 kW | 13,648 BTU |
| Fan Speed | 1 | 1 |
| Power Supply | 24V / 12V | 24V / 12V |
| Current Draw | 10A / 20A | 10A / 20A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 46ºC | 115ºF |
| Weight (nominal) | 10.0 Kg | 22. lbs |
| Technical Manual Reference | SM260-2494 | SM260-2494 |
| Dimension L X W X H | 600mm X 455mm X 225mm | 23.6in X 17.9in X 8.9in |

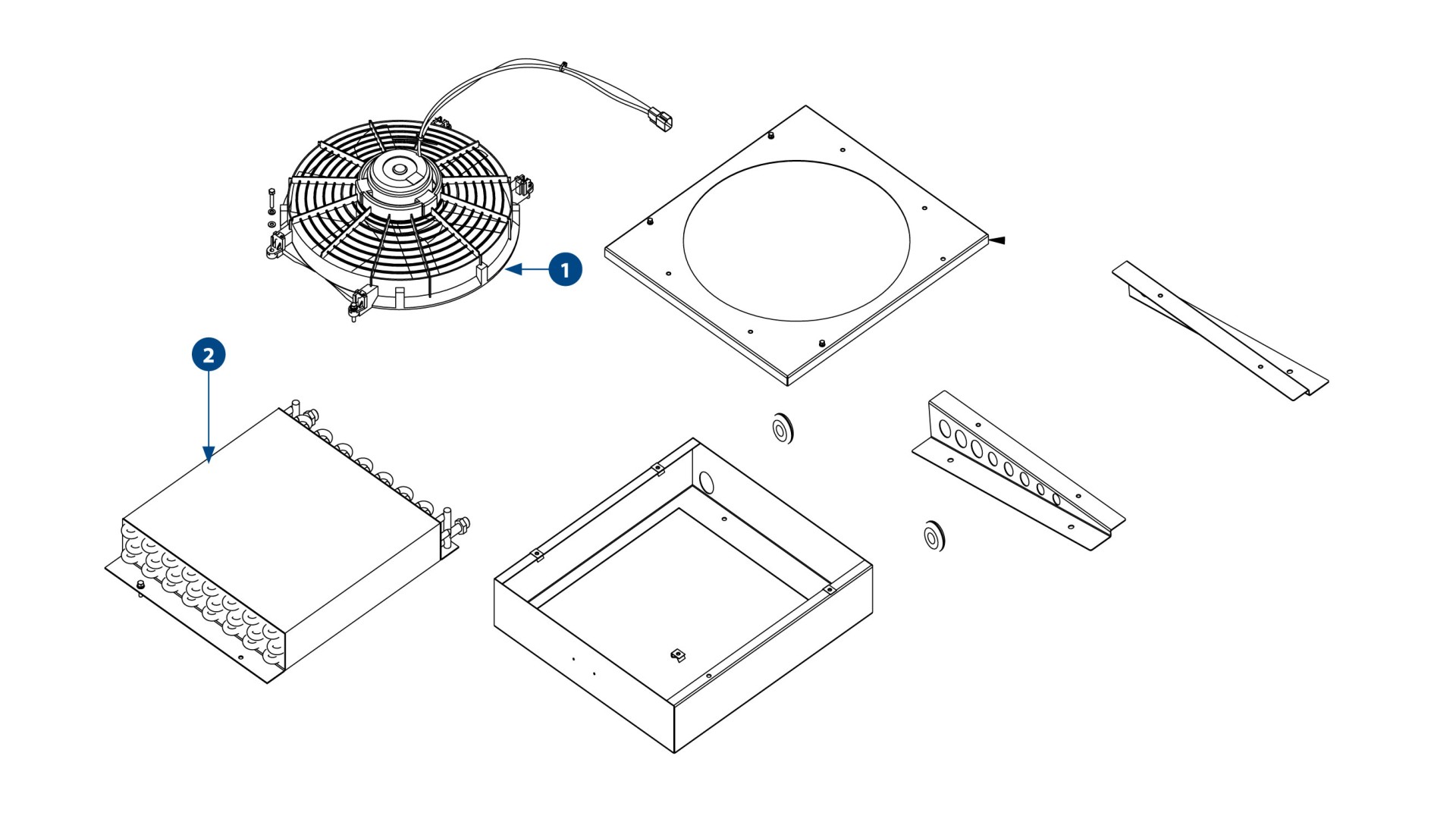

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU420064 AU420063 | FAN AXIAL ASSEMBLY 400MM 12VDC (EC12C2) FAN AXIAL ASSEMBLY 400MM 24VDC (EC12C4) | 1 1 |
| 2 | AU110312 AU110316 | CONDENSER COIL 390MM X 406MM X 66MM 3RW CONDENSER COIL 390X406X66 3RW (EC12C4SS) | 1 1 |
MAINTENANCE
ANUALLY (5,000 HOURS)
AU420064
FAN AXIAL ASSEMBLY 400MM 12VDC
AU420063
FAN AXIAL ASSEMBLY 400MM 24VDC
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| EC1214 | Internal Wall Evaporator |
| EC12H4 | Hood Liner Evaporator |
| EFF4BX1 | Evaporator |
| EB9P4X | Pressuriser |
| HDC150 | Hydraulic Compressor |
| AU2961001 | Electric Compressor 24V |
| AU270306E | Engine Driven Compressor |
| AU270307E | Engine Driven Compressor |
| AU270311E | Engine Driven Compressor |
| AU270312E | Engine Driven Compressor |
| AU531422 | Receiver Drier |
