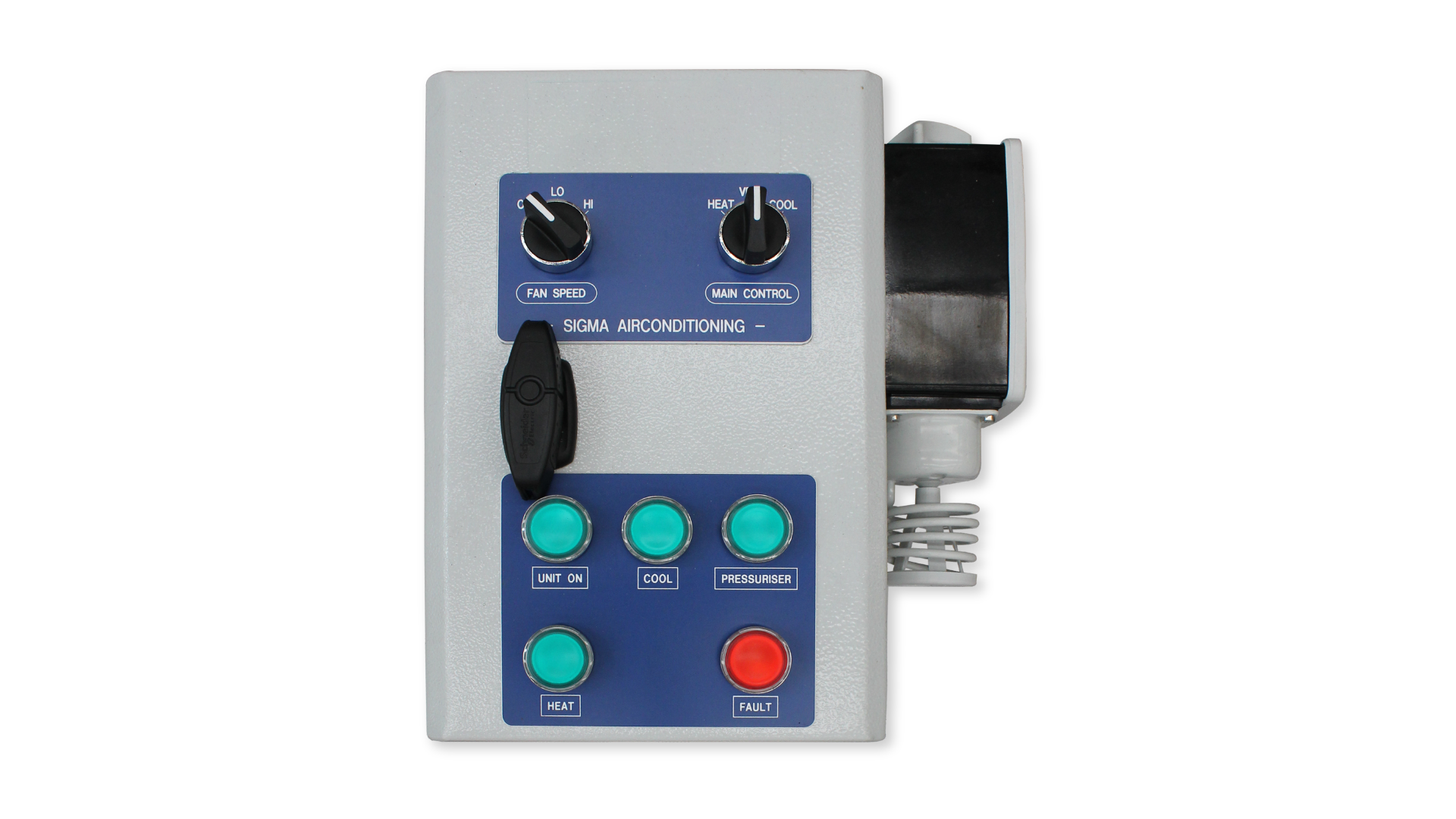

MEWH1 / MEWI1 Pilot Control Box
MEWH1: Pilot Control Box M7 Series 110V
MEWI1: Pilot Control Box M20/25 Series 24V
VEHICLES
- DRAGLINE & SHOVEL
- DRILL
- SMELTERS
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Weight (nominal) | 6.0 Kg | 13.2 lbs |
| Dimension L X W X H | 200mm X 184mm X 319mm | 7.8in X 7.2in X 12.5in |
SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | AU635300 | TERMINAL BLOCK | 4 |
| 2 | AU662230 | PUSH BUTTON SWITCH BASE | 7 |
| 3 | AU665452 | LED RED | 1 |
| 4 | AU665451 | LED GREEN | 4 |
| 5 | AU662233 | ROTARY SWITCH 3 WAY | 2 |
| 6 | AU662234 | PUSH BUTTON GREEN | 4 |
| 7 | AU662235 | SWITCH CONTACT STANDARD | 9 |
| 8 | AU667167 | PUSH BUTTON ILLUMINATED | 1 |
| 9 | AU681107 | THERMOSTAT RT4 19 TO 30°C | 1 |
