MPR9VX1 - Rooftop HVAC Package

MPR9VX1

SIGMA's MPR9VX1 system is a 10kW cooling and 15kW heating capacity system available in either split or package configuration and supplied standard with fresh air filtration and pressurization. The MPR9 is a robust legacy system build from stainless steel material with HEPA air filter option to ensure durability without compromising on comfort and air quality.

VEHICLES

  • DRAGLINE & SHOVEL
  • DRILL
  • INDUSTRIAL
  • SMELTERS
SIGMA Knorr-Bremse Australia

23 - 29 Factory Street
Granville NSW 2142
Australia

Phone: 1300 643 643
mid.aus@sigma-hvac.com

SPECIFICATIONS

  METRIC IMPERIAL
Cooling Capacity 10.0 kW 34,120 BTU
Heating Capacity 15.0 kW 51,182 BTU
Fan Speeds 2 (manual control)
3 (electric control)
2 (manual control)
3 (electric control)
Air Flow 610 l/s 1,293 CFM
Fresh Air 22 l/s 47 CFM
Power Supply 460/575 VAC
3 Phase, 50/60Hz
460/575 VAC
3 Phase, 50/60Hz
Current Draw 30 A 30 A
Refrigerant R134a R134a
Minimum Ambient Temperature -10°C 14°F
Maximum Ambient Temperature 54°C 129°F
Weight (nominal) 457.0 Kg 1005.4 lbs
Technical Manual Reference HD0031057 HD0031057

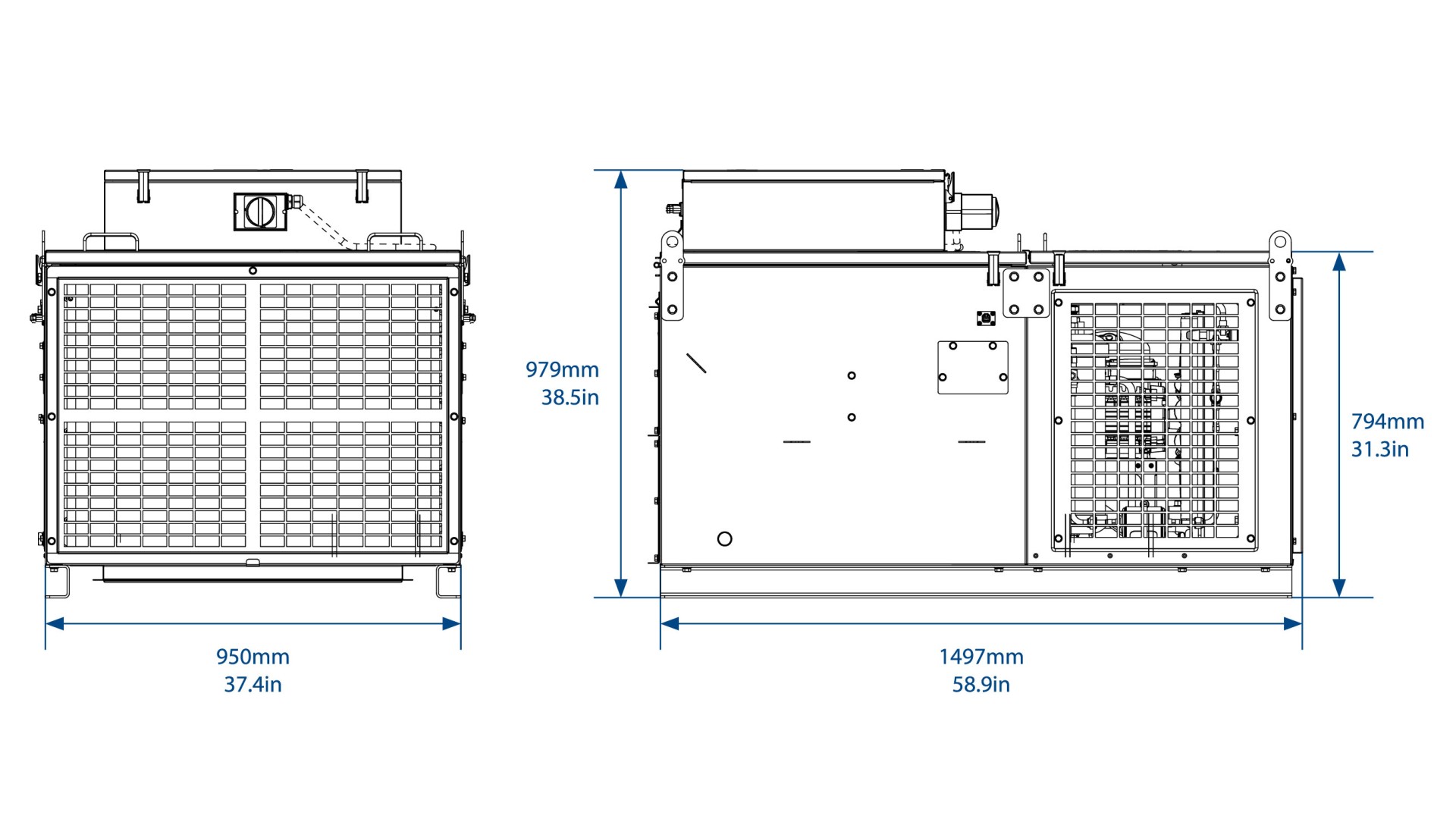

Dimension L X W X H 1512mm X 1145 mm X 980mm 59.5in X 45.1in X 28.6in

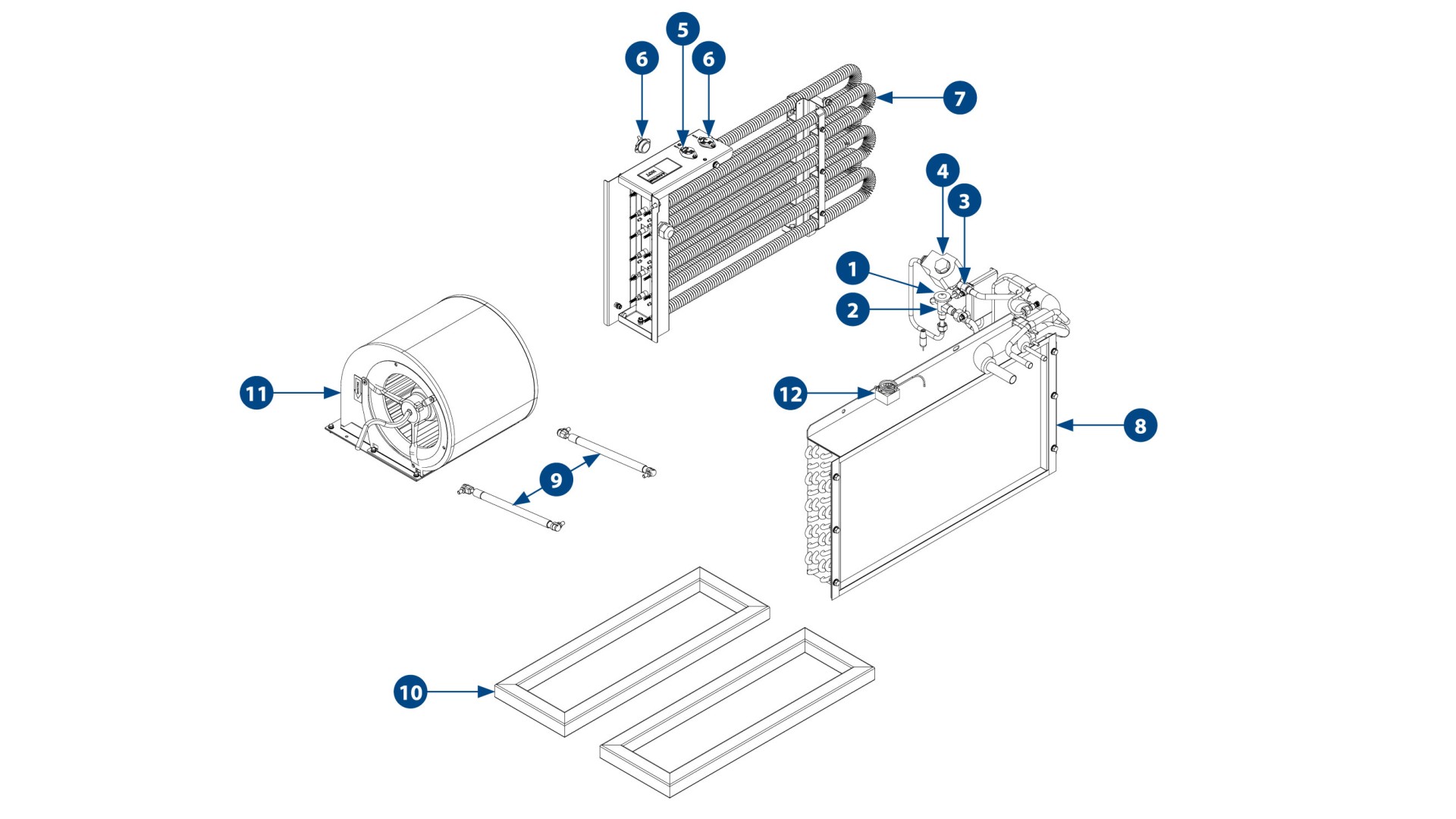

EVAPORATOR SPARE PARTS LIST

Sl.No. PART NO. DESCRIPTION QTY
1 AU521508 TX ORIFICE #06 1
2 AU521509 TX VALVE 2T 3/8" IN 1/2" OUT 1/4" EQ R134A 1
3 AU522042 SOLENOID VALVE 1/2" SOLDER NC 1
4 AU668140 COIL SOLENOID 24VDC TYPE 1 1
5 AU681009 KLIXON TEMPERATURE SENSOR 1 1
6 AU6811013 TAT KLIXON 40°C N/C AUTO 2
7 AU691C041 HEATER ELEMENT 277V 2500W 6
8 H0070297 EVAPORATOR COIL 1
9 H0080806 GAS STRUT 2
10 H0080812 RA/SA OPENING SEAL 2
11 H0082201 SUPPLY AIR FAN ASSEMBLY 1
12 UE016 THERMOSTAT DEICE STUD 1
  KNHV30016 MPR9MX1 PIPE KIT 1
  AU862211 SEAL RUBBER 4.5m
  AS2134155S RETURN AIR FILTER ASSEMBLY (OPTIONAL) 1
  H0082092 RETURN AIR FILTER ASSEMBLY COIL MOUNT (OPTIONAL) 2

EVAPORATOR MAINTENANCE

AS2134155S
RETURN AIR FILTER ASSEMBLY(OPTIONAL)

H0082092
RETURN AIR FILTER ASSEMBLY COIL MOUNT (OPTIONAL)

AU531356
LIQUID LINE FILTER

UE016
THERMOSTAT DEICE STUD

AU521509
TX VALVE 2T 3/8” IN 1/2” OUT 1/4” EQ R134A

AU521508
TX ORIFICE #06

AU862211
SEAL RUBBER

CONDENSER SPARE PARTS LIST

Sl.No. PART NO. DESCRIPTION QTY
1 AU420157 CONDENSER FAN 1
2 AU517256 PCAV 1/2 SOLDER 1
3 H0152017 LOW PRESSURE CONTROL 1
4 AU531356 LIQUID LINE FILTER 1
5 AU533136 LIQUID MOISTURE INDICATOR 1
6 652A20006 COMPRESSOR 1
7 H0072613 CONDENSER COIL 1
8 AU523112 DUAL PRESSURE CONTROL LP AUTO HP AUTO 1
9 H0080329 CONDENSER FAN MOTOR 1
10 H0103172 VIBRATION MOUNT 4
11 AU160C012 RECEIVER LIQUID VERT 6 X 18 MP 1
12 AU522021 SOLENOID VALVE 3/8” SOLDER NC 1
13 AU668140 COIL SOLENOID 24VDC TYPE 1 1
14 AU527126 RELIEF VALVE 3/8" MNPT X 2.7MPa 1
15 H0148597 HIGH PRESSURE CONTROL 1
16 H0080748 VIBRATION ELIMINATOR (DISCHARGE) 1
17 H0080749 VIBRATION ELIMINATOR (SUCTION) 1
  KNHV30016 MPR9MX1 PIPE KIT 1
  AU542026 REFRIGERANT OIL 1

CONDENSER MAINTENANCE

AU531356
LIQUID LINE FILTER

AU523365
LOW PRESSURE SWITCH 1/4” FF 205kPa

AU523655
HIGH PRESSURE SWITCH 1/4” FF 2415kPa

H0103172
VIBRATION MOUNT

AU542026
REFRIGERANT OIL

AU523112
DUAL PRESSURE CONTROL

H0080748
VIBRATION ELIMINATOR

AU517622
VALVE CHECK 5/8” SOLDER STRAIGHT

H0080748
VIBRATION ELIMINATOR (DISCHARGE)

H0080749
VIBRATION ELIMINATOR (SUCTION)

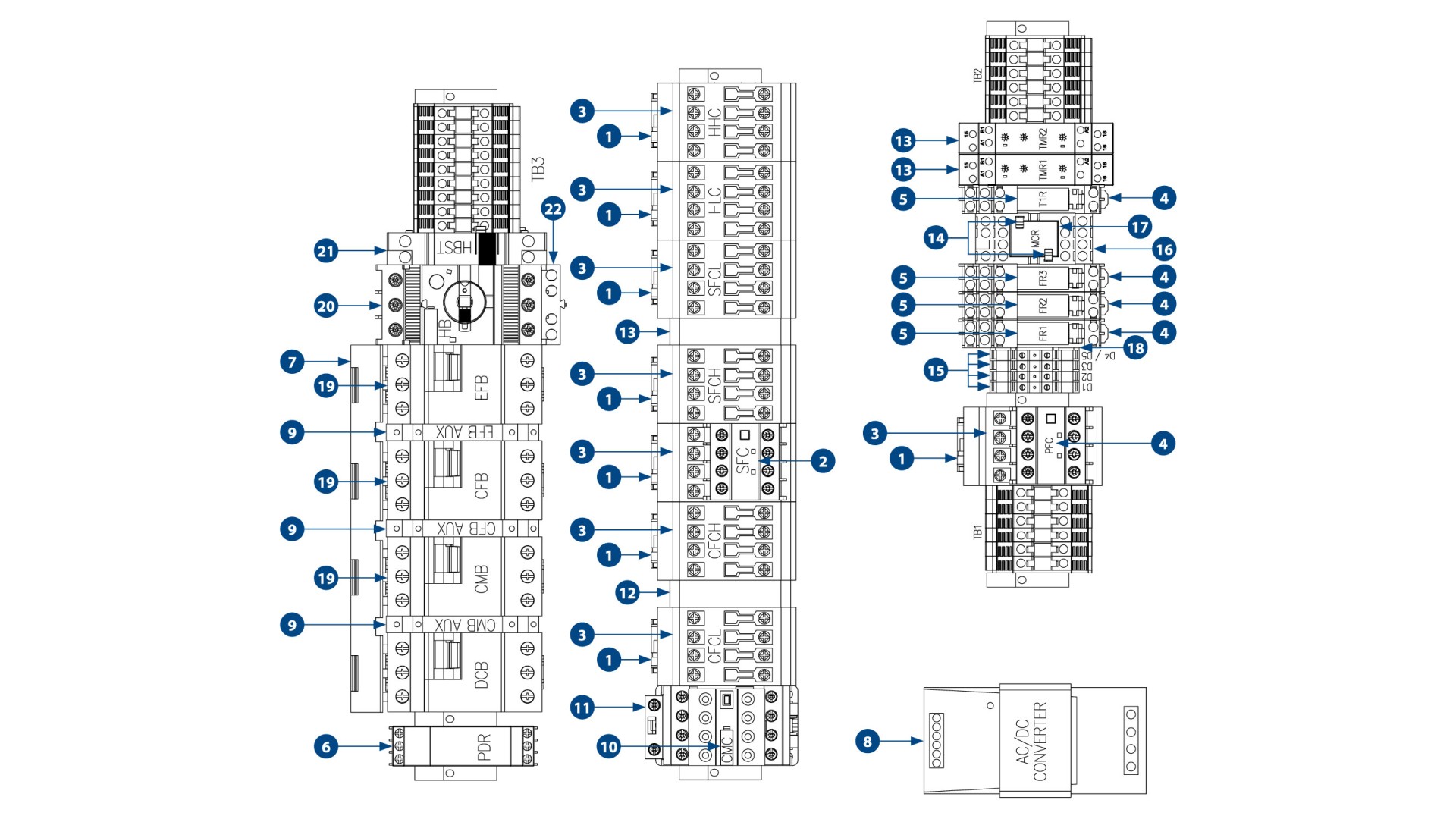

ELECTRICAL SPARE PARTS LIST

Sl.No. PART NO. DESCRIPTION QTY
1 642E058 SURGE SUPPRESSOR 8
2 H0082714 AUX CONTACT SFC/PFC 2
3 AU651544 CONTACTOR 8
4 H0343830 RELAY, BASE FOR 8 PIN G2R 4
5 AU661040 RELAY 8 PIN 24VDC 2 POLES 4
6 H0249468 PHASE DETECTION RELAY 1
7 H0249483 SHUNT TRIP 1
8 H0222341 BUSBAR 1
9 H0222338 CONVERTER 1
10 AU641454 CIRCUIT BREAKER AUX 1NO 1NC 4
11 642B20039 AUX. CONTACT - CMC 1
12 H0060331 CONTACTOR 1
13 TTP5322 INTERLOCK 2
14 AU672500 TIMER ON DELAY 24VDC 0.1SEC-100HR 1 POLE 2
15 AU661046 RLY CLIPS FOR MY4N 2
16 AU674401 DIODE TERM BLOCK COMMON CATHOD 4
17 AU661045 RLY BASE FOR MY4N 1
18 AU661044 RLY OMRON 24VDC 4 POLES 1
19 AU635446 END PLATE KLIPPON AP 3592 6 * 1
20 642M279 CIRCUIT BREAKER 1
21 H0249472 CIRCUIT BREAKER, AUXILIARY 1
22 H0249474 CIRCUIT BREAKER 1

COMPANION ITEMS

PART NO. DESCRIPTION
EB9P4X *Right Hand Pressuriser Assembly 24V
H0081203 *Left Hand Pressuriser Assembly 24V EB9
H0146199 Adapter Frame Assembly
H0107836 Supply Air Damper Assembly
H0184867 Air Duct Front Panel
H0082091 RA Filter Assembly - Coil Mount MPR9
H0087360 Spigot Supply Air M9 (152-203)
H0099206 Spigot Return Air M9 (152-203)
H0134546 Manual Control Unit
H0082302 Electronic Control Unit
H0264933 Custom Operators Seat Control Option
*looking from evaporator end of unit
