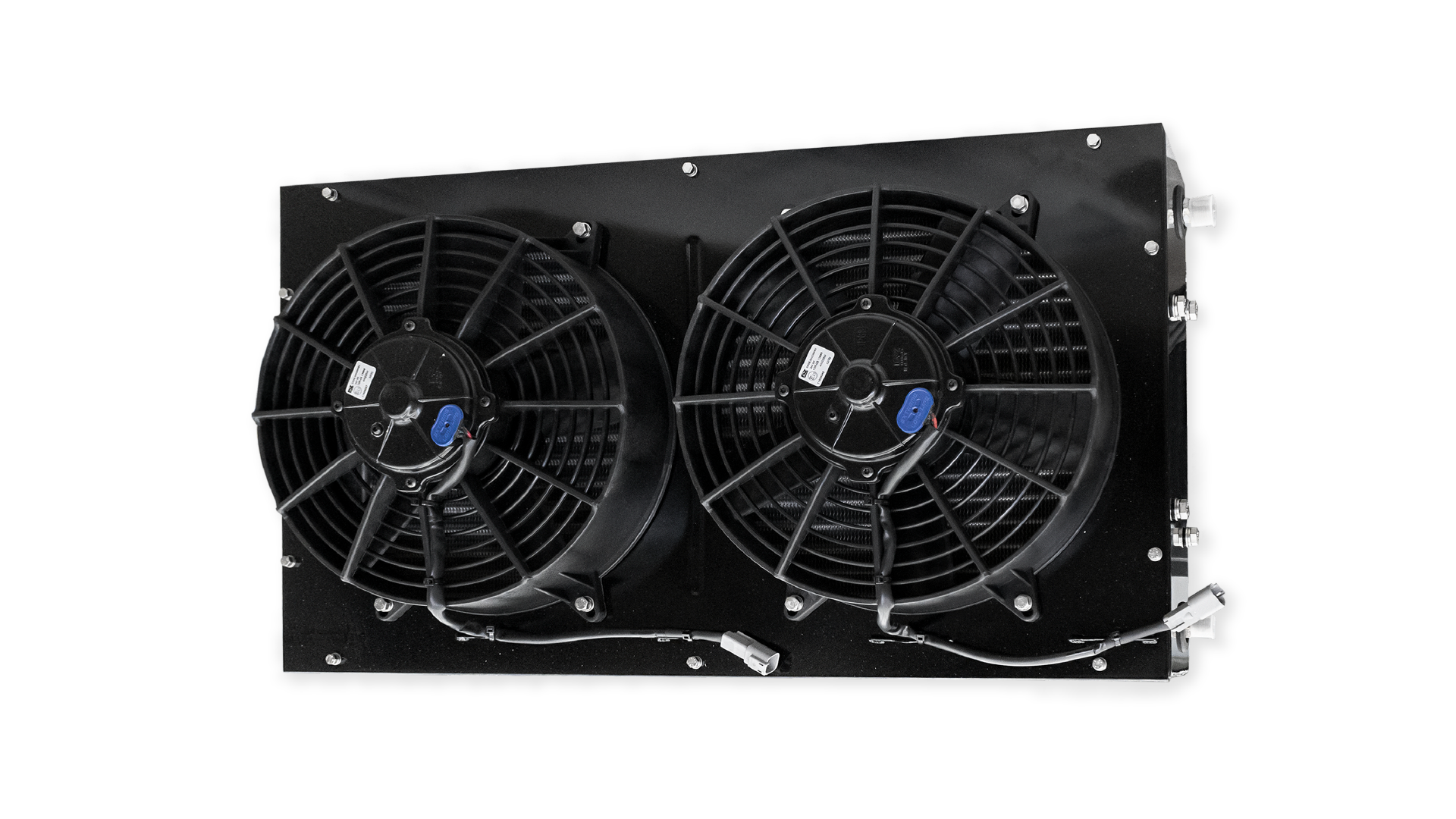

ECW6BX1 - Wall Mounted Condenser
H0204590
Compact & robust this ECW6BX1 wall mounted condenser is raited at 6.5kw heat rejection capacity for construction & industrial applications. This equipment is available in 24VDC configurations.
VEHICLES
- CONSTRUCTION
- INDUSTRIAL
SIGMA Knorr-Bremse Australia
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Heat Rejection | 6.5 kW | 22,180 BTU |
| Fan Speeds | 1 | 1 |
| Power Supply | 24V | 24V |
| Current Draw | 15A | 15A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 46ºC | 115ºF |
| Weight (nominal) | 19.5 Kg | 42.9 lbs |
| Technical Manual Reference | SM260-2494 | SM260-2494 |

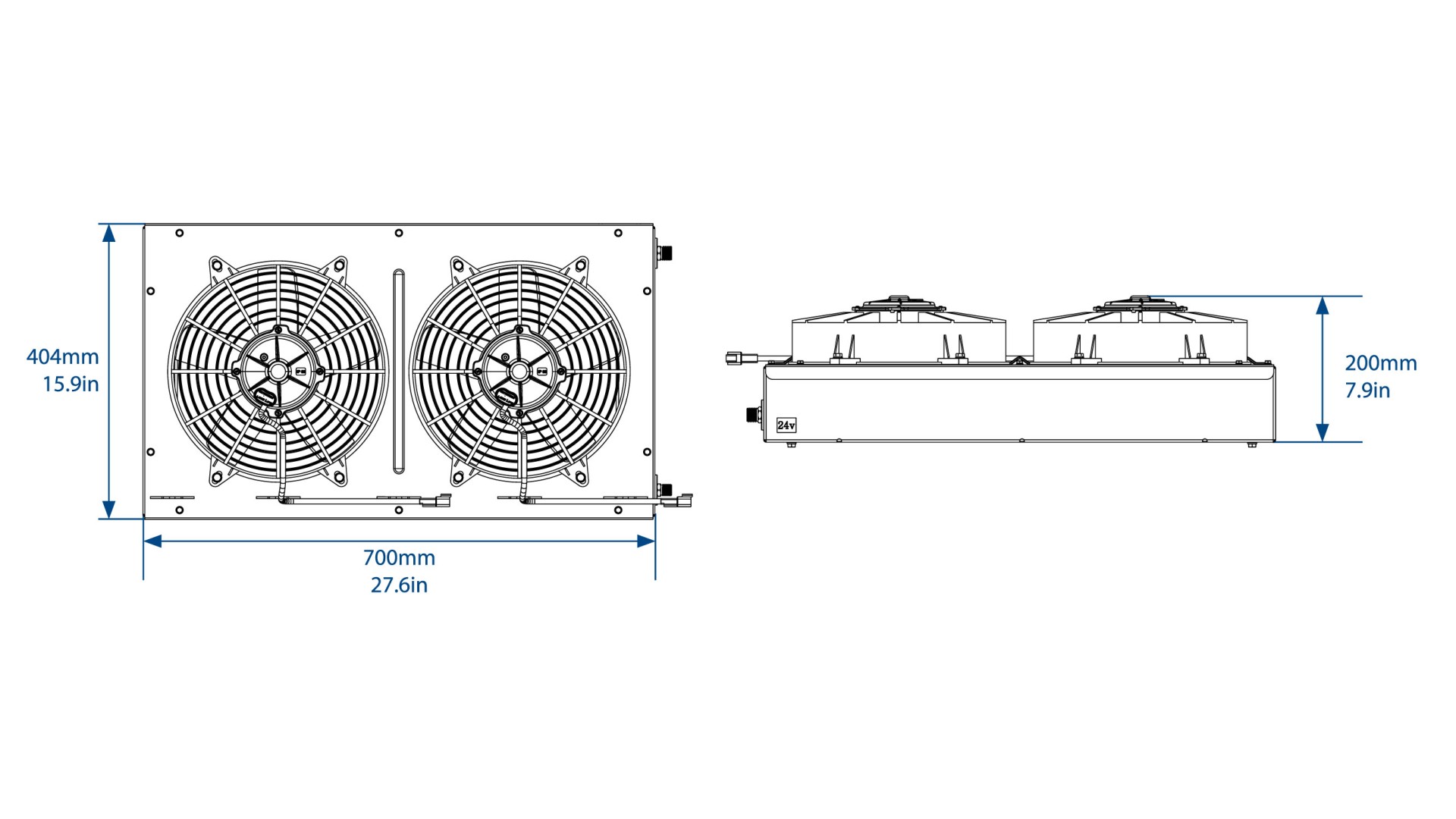

| Dimension L X W X H | 700mm X 405mm X 200mm | 27.5 in X 15.9in X 7.8in |

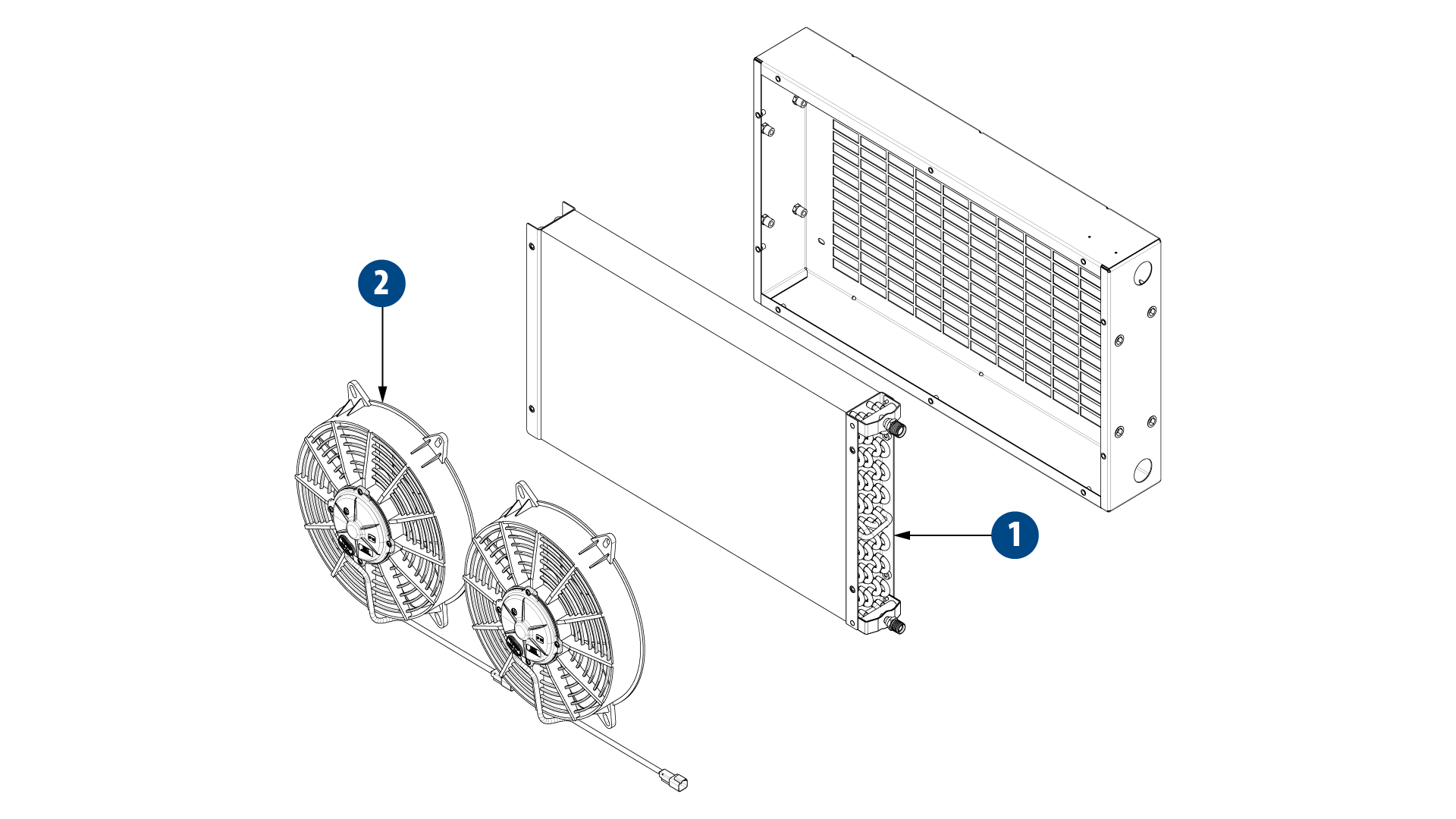

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | H0204604 | CONDENSER COIL | 1 |
| 2 | H0207769 | CONDENSER FAN ASSEMBLY | 2 |
MAINTENANCE
ANNUAL (3,600 Hours)
H0207769
CONDENSER FAN ASSEMBLY
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| EC12C4 | Electric Condenser |
| EFF5BX3 | Evap Floor Mounted |
| HDC170 | Hydraulic Compressor |
| AU270306 | Engine Driven Compressor |
| AU270307 | Engine Driven Compressor |
| AU531422 | Receiver Drier |
| AU531601 | Receiver Drier |
