EC22C - Remote Condenser
EC22C2 / EC22C4 / EC22C4SS
The EC22C condensers are designed to provide efficient and independent heat rejections. The EC22C unit utilises three long-life fan / motor assemblies to draw air through the coil. The unit can be mounted vertically or horizontally and is available in 12VDC or 24VDC configurations.
VEHICLES
- TRUCK
- WHEEL LOADER
- CONSTRUCTION
- UNDERGROUND EQUIPMENT
- INDUSTRIAL
- RAIL SPECIAL VEHICLES
SIGMA Knorr-Bremse Australia
SPECIFICATIONS
| METRIC | IMPERIAL | |
|---|---|---|
| Cooling Capacity | 6.0 kW | 20,472 BTU |
| Fan Speed | 1 | 1 |
| Power Supply | 24V / 12V | 24V / 12V |
| Current Draw | 13A / 26A | 13A / 26A |
| Refrigerant | R134a | R134a |
| Maximum Ambient Temperature | 46ºC | 115ºF |
| Weight (nominal) | 14.0 Kg | 30.8lbs |
| Technical Manual Reference | SM260-2494 | SM260-2494 |

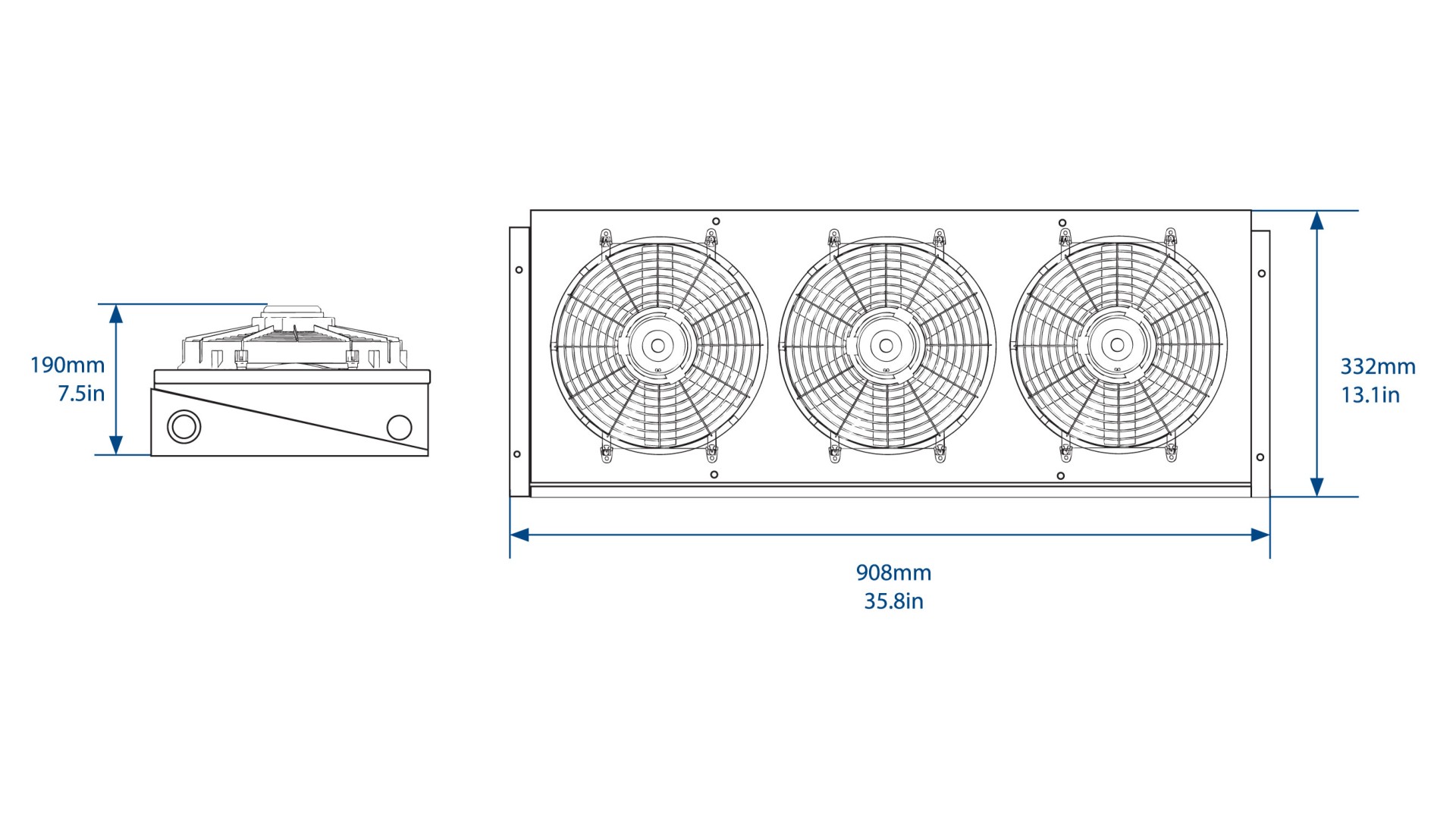

| Dimension L X W X H | 908mm X 332mm X 190mm | 35.7in X 13.1in X 7.5in |

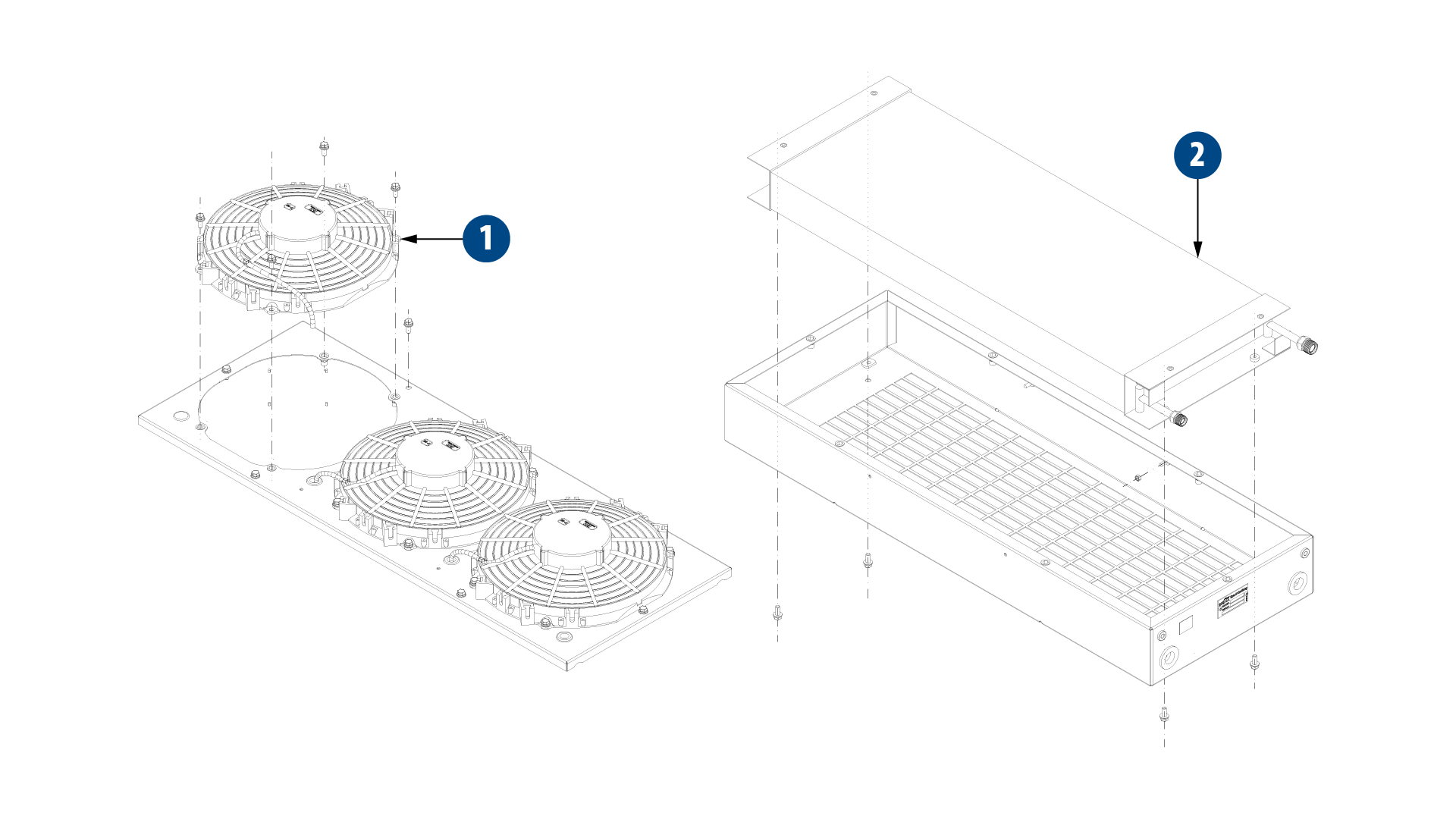

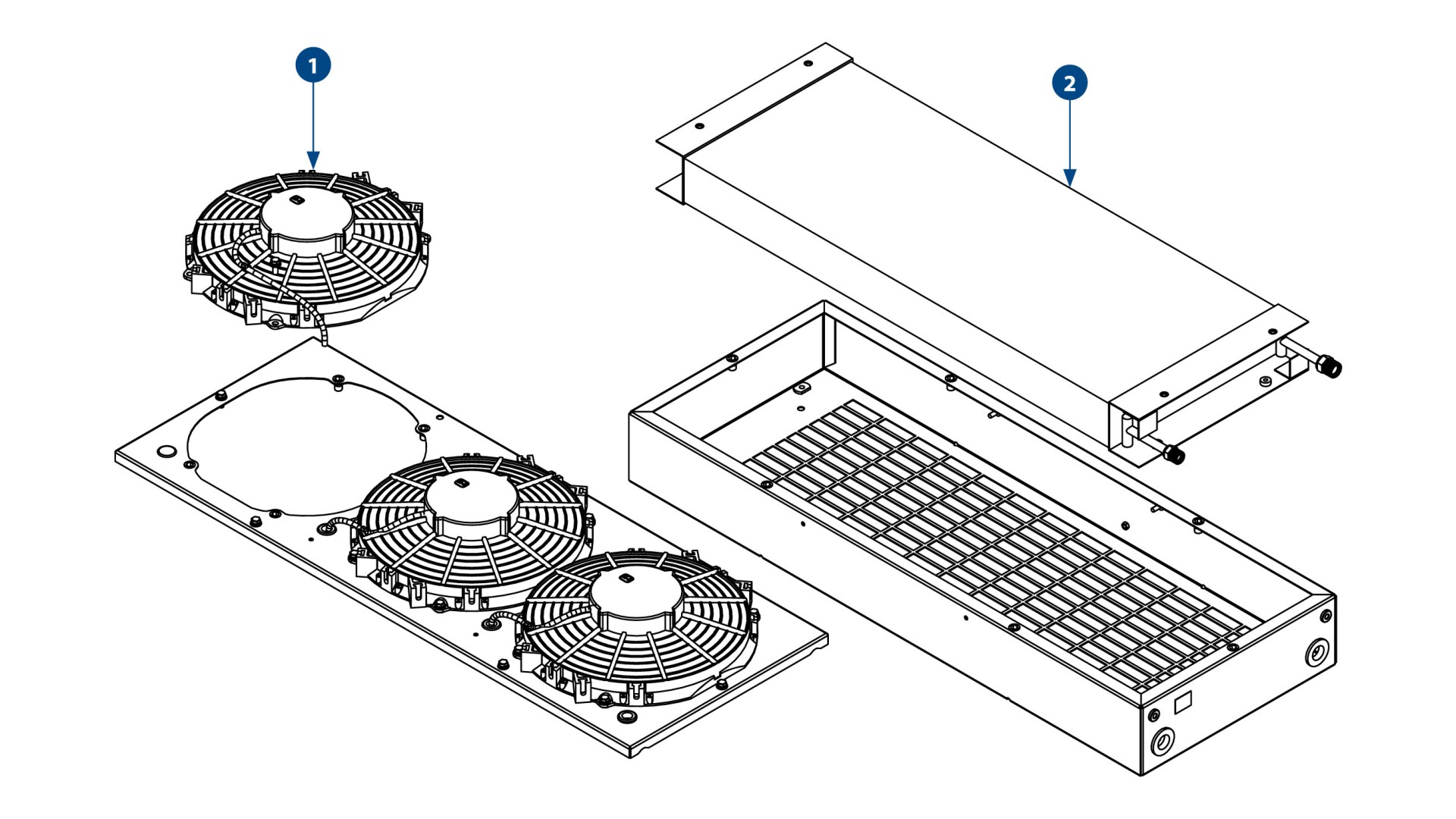

SPARE PARTS LIST
| Sl.No. | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | H0212292 H0214932 | FAN AXIAL ASSEMBLY 260MM 12VDC (EC22C2) FAN AXIAL ASSEMBLY 260MM 24VDC (EC22C4) | 1 1 |
| 2 | AU110389 AU110388 | CONDENSER (EC22C4SS) CONDENSER (EC22C2 / EC22C4) | 1 1 |
MAINTENANCE
ANNUAL (5,000 Hours)
H0212292
FAN AXIAL ASSEMBLY 260MM 12VDC
H0214932
FAN AXIAL ASSEMBLY 260MM 24VDC
COMPANION ITEMS
| PART NO. | DESCRIPTION |
|---|---|
| EC22H4 | Hoodliner Evaporator |
| EB9P4X | Pressuriser |
| HDC150 | Hydraulic Compressor |
| AU270306E | Engine Driven Compressor |
| AU270307E | Engine Driven Compressor |
| AU270311E | Engine Driven Compressor |
| AU270312E | Engine Driven Compressor |
| AU531422 | Receiver Drier |
